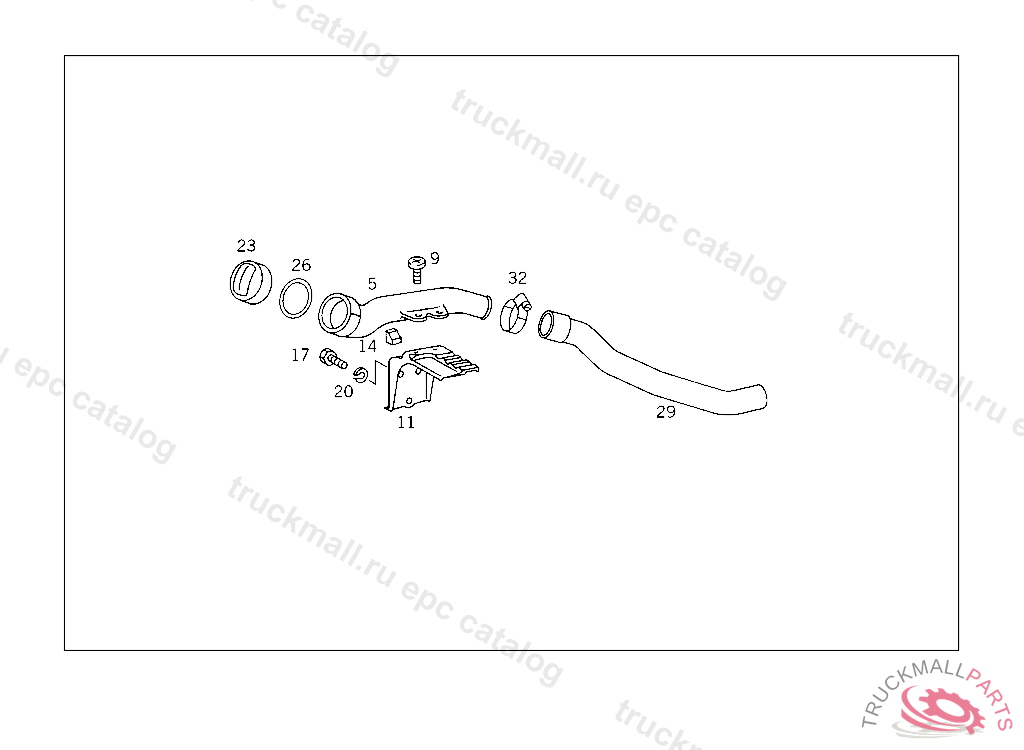

Поз.
Артикул
Описание
5
PIPE ,5 293767
9
SCREW OIL FILLER NECK TO BRACKET,5 458408
11
BRACKET OIL FILLER PIPE TO RADIATOR
14
SHIM OIL FILLER PIPE TO RADIATOR
17
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
17
SCREW , Replaced By: N304017008016
20
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
23
CAP OIL REFILLING,5 293767
26
GASKET , Replaced By: A1020180380
26
GASKET
29
HOSE FROM OIL FILLER NECK TO OIL PAN
32
CLAMP25-40X13 MM
32
CLAMP
32
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
32
CLAMP , Replaced By: N000000000670
