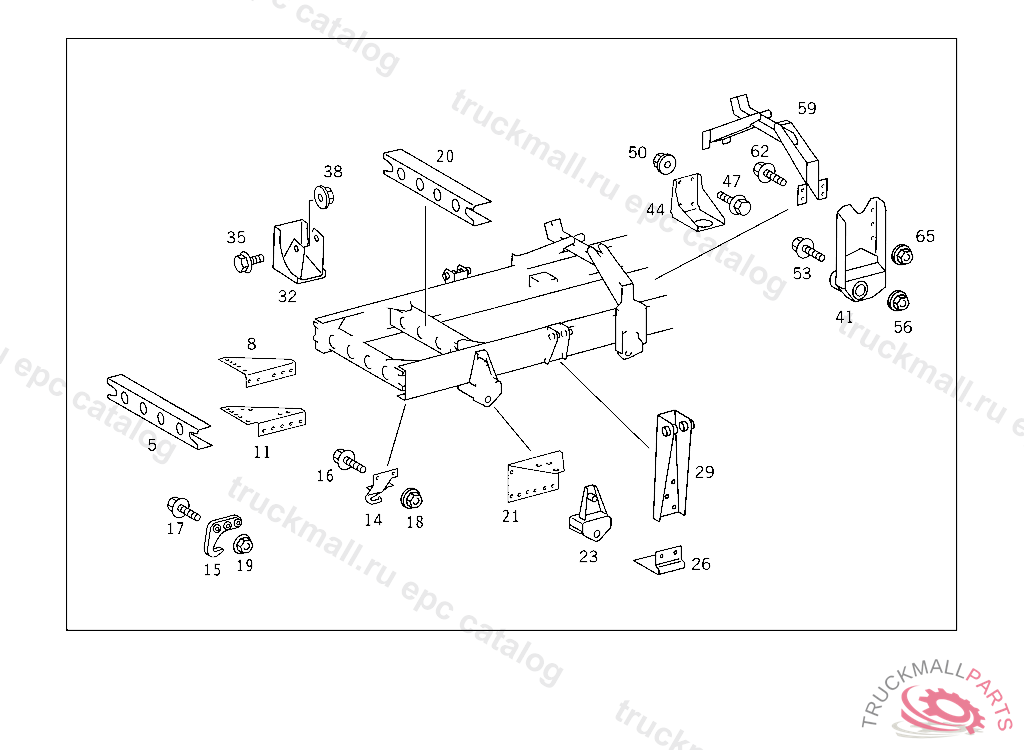

Поз.
Артикул
Описание
5
CROSS MEMBER FRONT
8
ANGLE LEFT
8
ANGLE RIGHT
11
ANGLE LEFT
11
ANGLE RIGHT
15
TOW HOOK
16
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
17
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
18
NUT EXHAUST PIPE TO SIDE MEMBER
19
NUT , Replaced By: N913023010002
20
CROSS MEMBER (FRONT SPRING BRACKET),FRONT NO.2
21
ANGLE CROSS MEMBER TO SIDE MEMBERS
23
REAR SUBFRAME FRONT RIGHT,001317004068
23
REAR SUBFRAME FRONT LEFT
26
PLATE HELPER SPRING
29
BRACKET SHOCK ABSORBER TO SIDE MEMBER
29
CONSOLE SHOCK ABSORBER TO SIDE MEMBER
32
CONSOLE ENGINE FRONT SUPPORT TO FRAME
35
SCREW , Replaced By: N910105010001
35
SCREW EXHAUST PIPE TO SIDE MEMBER
38
NUT EXHAUST PIPE TO SIDE MEMBER
41
CONSOLE RIGHT FRONT SPRING REAR BRACKET
41
CONSOLE LEFT FRONT SPRING REAR BRACKET
44
CONSOLE ENGINE RIGHT SUPPORT
44
CONSOLE ENGINE LEFT SUPPORT
47
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
50
NUT STRAP TO SUPPORT
53
SCREW EXHAUST PIPE TO BRACKET
56
NUT STRAP TO SUPPORT
56
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
