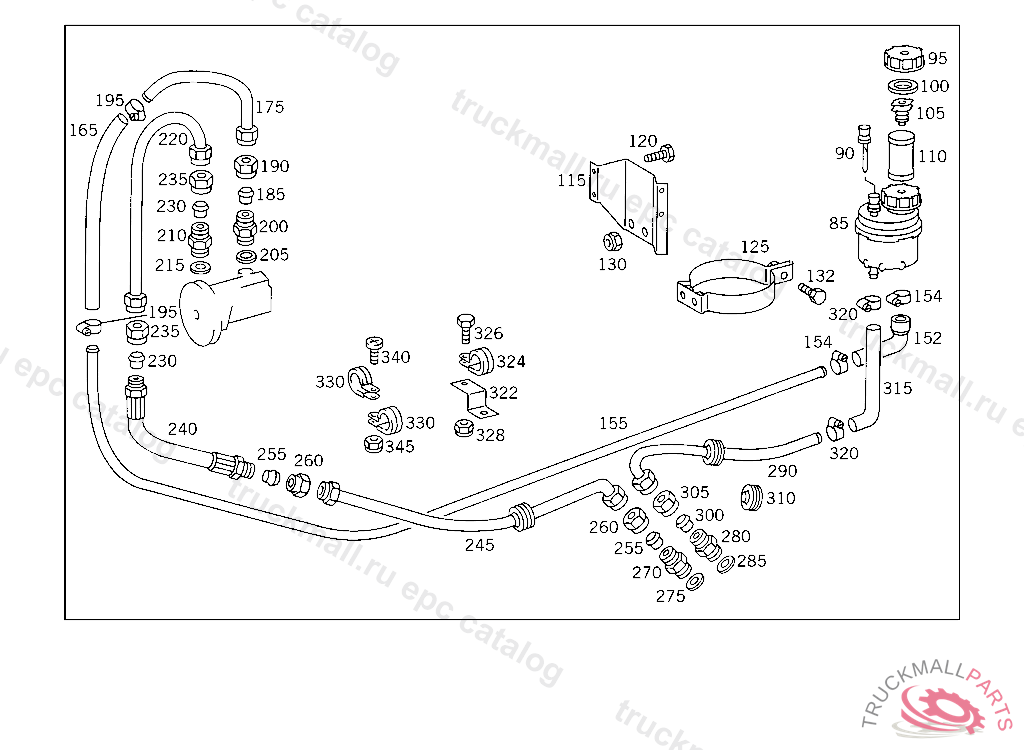

Поз.
Артикул
Описание
85
TANK OIL
90
OIL DIPSTICK
90
OIL DIPSTICK , Replaced By: A0004661167
90
OIL DIPSTICK , Replaced By: A0004660867
95
FILLER CAP
100
SEAL RING
105
BRACKET
110
FILTER
115
BRACKET OIL TANK
120
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
125
STRAP OIL TANK
130
NUT , Replaced By: N910113010000
132
SCREW BRACKET TO BUMPER,LEFT M 10X25
152
HOSE FROM OIL TANK TO SUCTION LINE
154
CLAMP HOSE TO HEATING PIPE
154
CLAMP , Replaced By: N000000000667
154
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
155
LINE (SUCTION LINE),FROM OIL TANK TO PUMP, HYDRAULIC STEERING-766.4D 014535
155
LINE FROM HOSE TO HOSE
165
HOSE HOSE TO OIL LINE
165
HOSE HOSE TO OIL LINE
175
LINE FROM HOSE TO POWER STEERING PUMP
185
GLAND , Replaced By: A0019901167
190
UNION NUT LINE MOUNTING
195
CLAMP HOSE TO HEATING PIPE
195
CLAMP , Replaced By: N000000000667
195
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
200
FILLER NECK. FITTING SUCTION LINE TO OIL PUMP, HYDRAULIC STEERING-766.4D 014535
205
SEAL RING LINE TO OIL PUMP
210
SCREW-IN FITTING OIL LINE CONNECTION
215
SEAL RINGTO 006 997 00 72
220
LINE FROM OIL PUMP TO HIGH PRESSURE HOSE
230
GLAND , Replaced By: A0019901967
235
UNION NUT LINE CONNECTION, Replaced By: N000000006239
240
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
240
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
240
HOSE DELIVERY LINE TO PUMP
245
LINE FROM HIGH PRESSURE HOSE TO STEERING
255
GLAND , Replaced By: A0019901967
260
UNION NUT LINE CONNECTION, Replaced By: N000000006239
270
SCREW-IN FITTING OIL LINE CONNECTION
275
SEAL RINGTO 006 997 00 72
280
SCREW-IN FITTING , Replaced By: N003901015005
285
SEAL RING VALVE TO VALVE,K 025179
290
LINE (RETURN LINE),FROM STEERING TO OIL TANK
300
GLAND LINE CONNECTION
305
UNION NUT LINE CONNECTION
310
GROMMET 34 MM
315
HOSE (RETURN LINE),FROM STEERING TO OIL TANK
320
CLAMP FROM EXPANSION TANK TO ENGINE
322
BRACKET COMPRESSED AIR LINES
324
CLAMP BRAKE HOSE BRACKET
326
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
328
NUT , Replaced By: N913004006001
330
CLAMP , Replaced By: N916016010211
330
CLAMP BRAKE HOSE BRACKET
340
SCREW , Replaced By: N000000001146
345
NUT , Replaced By: N913004006001
999
JOINT R.H. THREAD LEMFOERDER
999
CLAMP , Replaced By: A0009953244
999
NUT STEERING GEAR TO STEERING BRACKET, MECHANIC STEERING-762.0
999
SCREW REDUCTION VALVE TO BRACKET
999
EXPANSION PLUG
999
GROMMET FOR PASSAGE OF LINE
999
BOOT UNIVERSAL JOINT COVERING, MECHANIC STEERING-762.0
999
SCREW STEERING GEAR TO STEERING BRACKET, MECHANIC STEERING-762.0
999
BOOTTO 345 330 70 03,352 330 07 03
999
UNIVERSAL JOINT STEERING SHAFT TO STEERING, MECHANIC STEERING-762.0
999
BRACKET OIL TANK, NOT USED
999
DRAG LINK , NOT USED
999
BRACKET OIL TANK, NOT USED
999
BRACKET DELIVERY AND SUCTION LINES TO CAB, NOT USED
999
HOSE (SUCTION LINE),FROM OIL TANK TO PUMP, NOT USED
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
SCREW CLAMPING PIECE TO BRACKET M 6X40
999
SCREW , Replaced By: A0079900801
999
SCREW-IN FITTING AT PRESSURE REGULATOR
999
SEAL RING 2/2-WAY VALVE,CONNECTION: "20"
999
NUT , Replaced By: N913004008001
