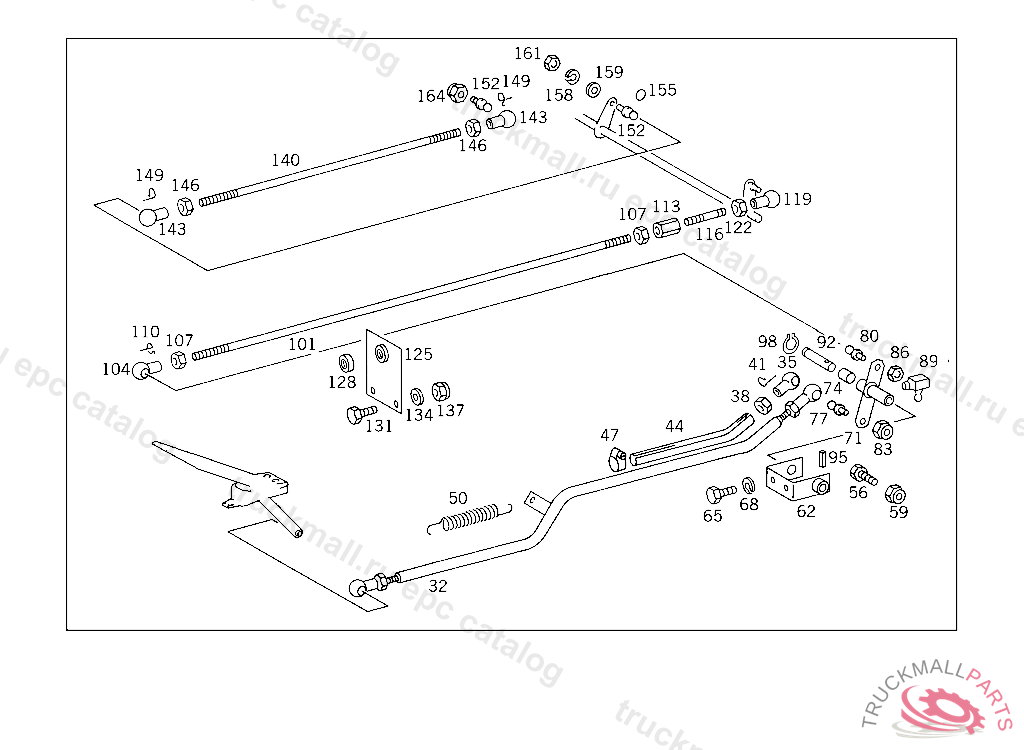

Поз.
Артикул
Описание
32
35
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
38
NUT BALL PIVOT TO LEVER
41
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
44
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
47
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
47
CLAMP HOSE TO FITTING AND TO OIL TANK
50
SPRING RELEASE SPRING
56
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
56
SCREW , Replaced By: N308676016013
59
NUT , Replaced By: N910113016001
59
NUT CONSOLE TO SUPPORT
62
BRACKET INTERMEDIATE LEVER NO.1
65
SCREW , Replaced By: N304017008039
65
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
68
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
71
LEVER (INTERMEDIATE LEVER)
74
BUSHING
77
BALL PIVOT LOAD SENSOR
80
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
80
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
83
NUT , Replaced By: N913004006001
83
NUT PUMP TO BRACKET
86
NUT BALL PIVOT TO LEVER
89
GREASE NIPPLE
92
SHAFT LEVER TO BRACKET
95
GROOVED PIN SHAFT TO BRACKET
98
LOCK RING
101
PULL ROD ACCELERATOR CONTROL LINKAGE
104
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
107
NUT BALL PIVOT TO LEVER
110
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
113
THREADED UNION PULL ROD
116
STUD BOLT COVER TO CASE
119
BALL SOCKET ROD TO BALL PIVOT
122
NUT
125
BRACKET PULL ROD
128
BUSHING MANUAL CONTROL CABLE
131
SCREW PIPE CLAMP
131
SCREW , Replaced By: N304017008021
134
WASHER , Replaced By: N000125008443
134
WASHER EXHAUST MUFFLER TO STRAP
137
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
137
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
137
NUT , Replaced By: N913004008001
140
PULL ROD INJECTION PUMP CONTROL 600 MM
143
BALL SOCKET PULL ROD TO LEVER
146
NUT BALL PIVOT TO LEVER
149
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
152
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
152
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
155
SEAL RING MODULATION PRESSURE CONTROL
158
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
159
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
159
WASHER COMPRESSED AIR LINE TO BRACKET
161
NUT BALL PIVOT TO LEVER
164
NUT , Replaced By: N913012006001
164
NUT CLAMP TO BRACKET
999
BRACKET INTERMEDIATE LEVER
