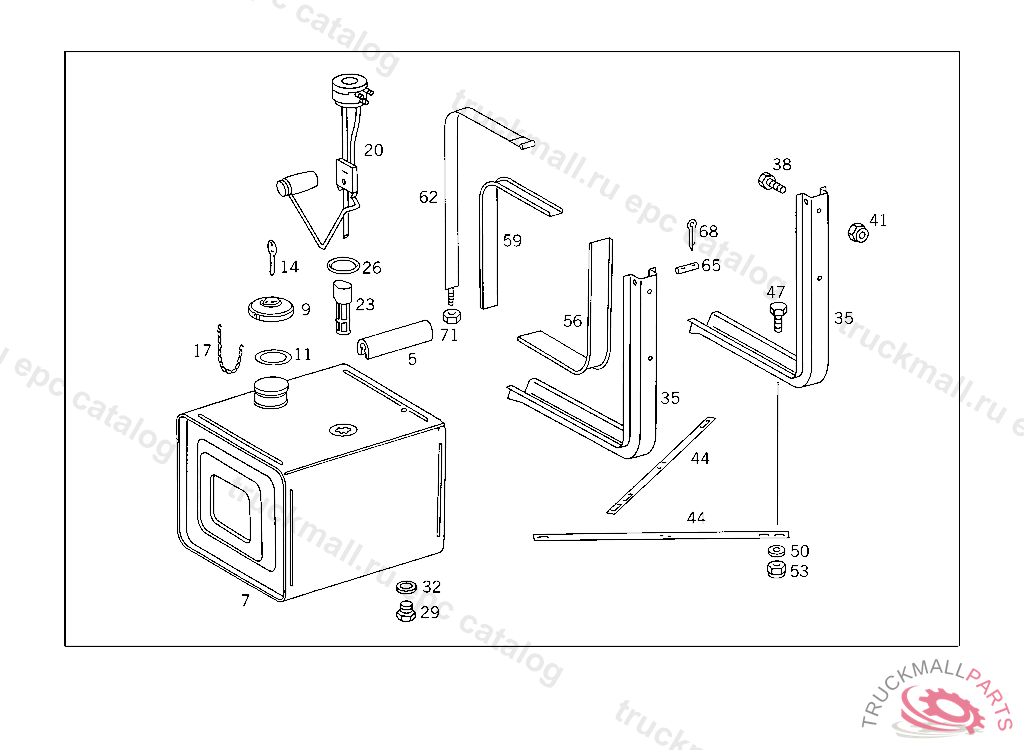

Поз.
Артикул
Описание
5
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
5
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
7
FUEL TANK200 L
9
FILLER CAP
11
SEAL RING
14
KEYTO 000 471 67 30, STATE LOCK NUMBER WHEN ORDERING
17
CHAIN FILLER CAP
20
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426517, +001A0005409917
23
FUEL STRAINER FUEL TANK,K 169122
26
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
29
SCREW PLUG FUEL TANK
29
SCREW PLUG , Replaced By: N007604014110
32
SEAL RINGTO 000 553 03 05,000 553 18 05,
35
CONSOLE REAR EXHAUST PIPE TO CONSOLE
38
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
38
SCREW , Replaced By: N308676014020
41
NUT , Replaced By: N910113014001
41
NUT BRACKET TO SIDE MEMBER
44
REINFORCEMENT SUPPORT TO CONSOLE,5 497851
47
SCREW CONSOLE TO SIDE MEMBER
50
WASHER
50
WASHER , Replaced By: N000125013008
53
NUT SUPPORT TO SIDE MEMBER
56
PAD FUEL TANK TO CONSOLE, ORDER BY THE METER
59
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
62
STRAP FUEL TANK TO SUPPORT
65
PIN STRAP TO SUPPORT
68
COTTER PIN STRAP TO SUPPORT
71
NUT STRAP TO SUPPORT
