Поз.
Артикул
Описание

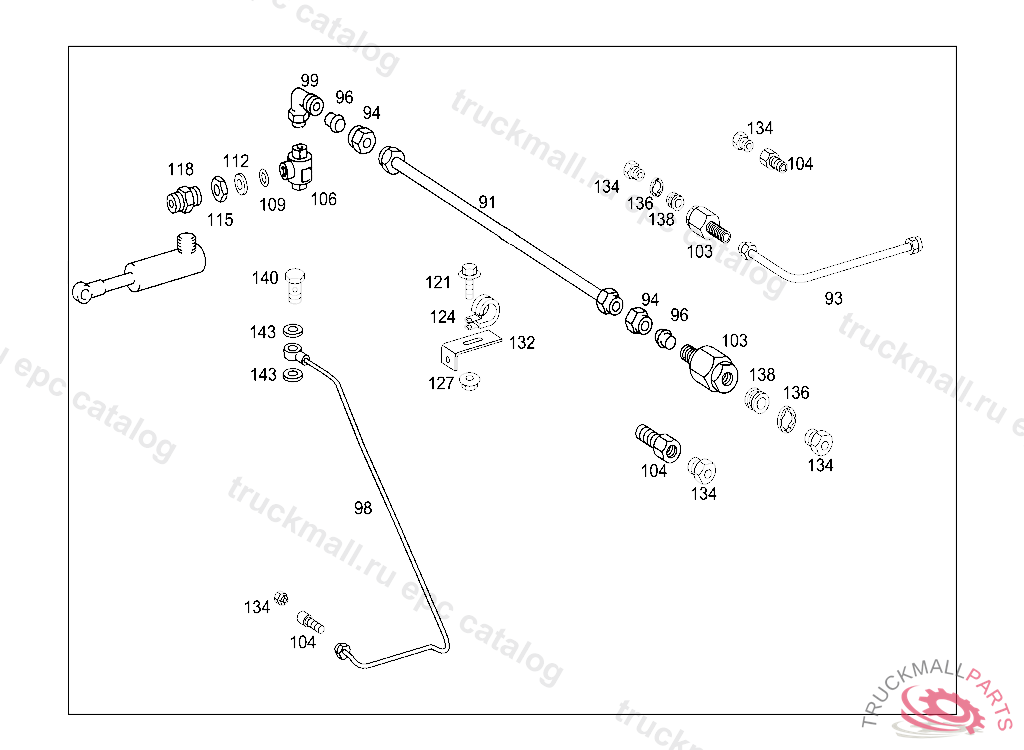

91
LINE EXHAUST BRAKE COMPRESSED AIR LINE
91
LINE EXHAUST BRAKE COMPRESSED AIR LINE
91
LINE EXHAUST BRAKE COMPRESSED AIR LINE,D 922800
91
COMPRESSED AIR LINE SET EXHAUST BRAKE COMPRESSED AIR LINE
91
LINE EXHAUST BRAKE COMPRESSED AIR LINE
91
LINE EXHAUST BRAKE COMPRESSED AIR LINE
91
COMPRESSED AIR LINE EXHAUST BRAKE COMPRESSED AIR LINE,D 922801
91
LINE EXHAUST BRAKE COMPRESSED AIR LINE, Replaced By: A3684203128
91
COMPRESSED AIR LINE EXHAUST BRAKE COMPRESSED AIR LINE
93
LINE AIR CONDITIONER 960MM
93
COMPRESSED AIR LINE AIR CONDITIONER 960MM
93
LINE AIR CONDITIONER 1.300MM
94
UNION NUT
96
GLAND , Replaced By: A0019901667
98
COMPRESSED AIR LINE UREA METERING VALVE COMPRESSED AIR UN. ARLA32-1154MM
99
ELBOW FITTING SINGLE CIRCUIT PISTON CYLINDER, CONNECTION:
99
FITTING , Replaced By: A0019909871
103
THROTTLE HOUSING. FITTING
104
ADAPTER FITTING TEST CONNECTION
106
VALVE , Replaced By: A6964310065
106
VALVE (QUICK-RELEASE VALVE)
109
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
112
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
115
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
115
NUT ,D 091466
118
CONNECTOR SOLENOID VALVE,CONNECTION: "2" TOA388 997 81 36 / 88 36
121
SCREW BRACKET AND CLAMP M6X20
121
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
121
HEXALOBULAR BOLT CLAMP ON BRACKET M6X30
124
CLAMP HYDRAULIC LINE TO SIDE MEMBER,RB012797
124
CLAMP LINE TO SIDE MEMBER
127
NUT BRACKET TO FIRE WALL
132
BRACKET LINE TO TRANSMISSION
132
BRACKET , Replaced By: A3464296040
134
SCREW. UNION SCREW , Replaced By: A0009973734
134
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
136
LOCK , Replaced By: A0009945448
138
SEAL RING , Replaced By: A0009940747
140
BANJO BOLT. HOLLOW SCREW OIL PRESSURE LINE ON OIL FILTER
143
SEALING RING TEST CONNECTION
