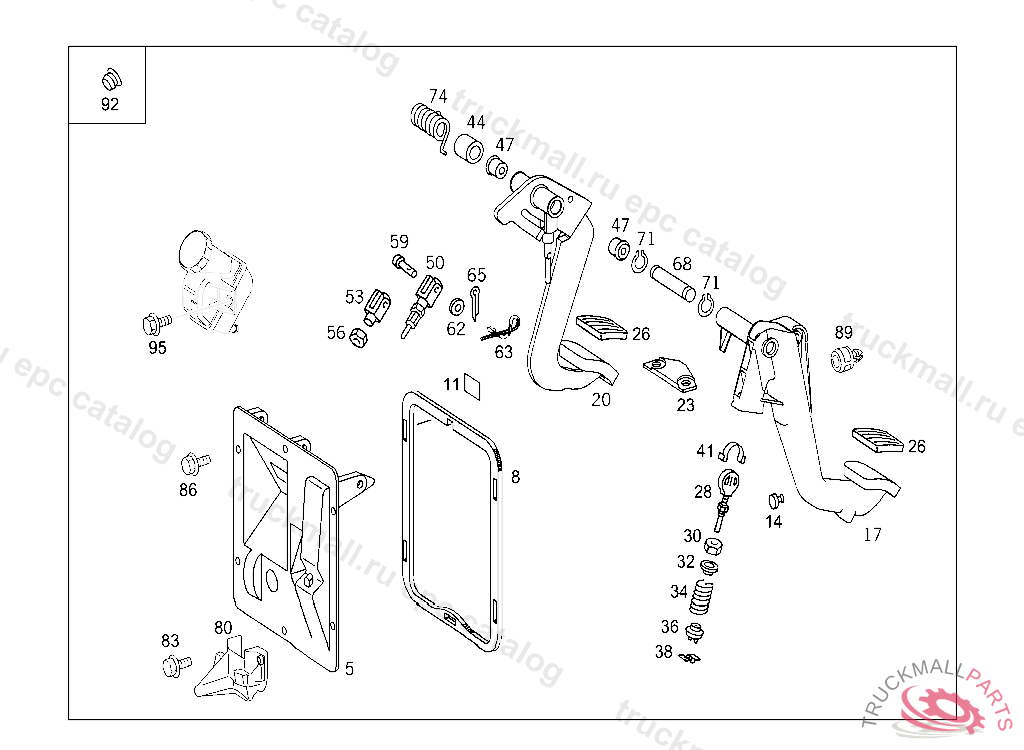

Поз.
Артикул
Описание
5
8
17
17
20
20
26
PAD BRAKE PEDAL
28
ROD
30
NUT
32
SPRING RETAINER TOP
34
SPRING (DEAD CENTER SPRING) 37 MM
36
SPRING RETAINER SPRING TO PUSH ROD
38
INSULATOR BOTTOM
41
INSULATOR ROD TO CLUTCH PEDAL
44
SPACER TUBE BRAKE PEDAL TO BEARING BRACKET
47
BUSHING BRAKE PEDAL
50
53
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
56
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
59
PIN ROD TO BRAKE PEDAL
62
WASHER BRACKET TO CROSS MEMBER
65
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
68
PIN CLUTCH AND BRAKE PEDALS TO BEARING BRACKET
71
LOCK STOP TO BEARING BRACKET
74
86
HEXAGON HEAD BOLT PROTECTIVE PLATE TO CLAMP M8X20,V 214001
89
STOP CLUTCH PEDAL
89
92
PLUG TO PLUG THE BORES
92
PLUG
92
PLUG TO PLUG THE BORES
95
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
95
SCREW , Replaced By: N914146006102
