Поз.
Артикул
Описание

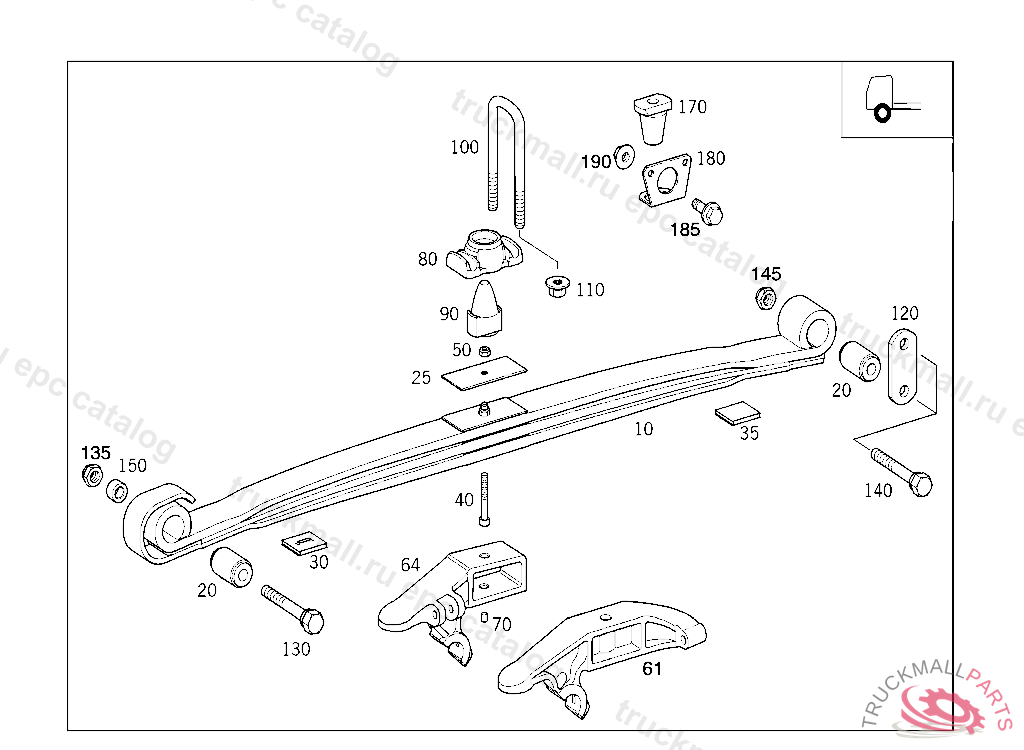

10
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "2", FOR COMPONENT PARTS SEE SPARE PARTS LIST
10
20
RUBBER MOUNTING
20
RUBBER MOUNTING , Replaced By: A0003223285
20
RUBBER MOUNTING , Replaced By: A0003223285
25
SHIM BETWEEN THE SPRING LEAVES
30
30
35
35
40
50
NUT STEERING SUPPORT TO FRAME
64
64
64
64
70
PIN , Replaced By: A6573310074
70
PIN FRONT SPRINGS TO FRONT AXLE 28 MM, Replaced By: A9303230374
70
CENTERING BOLT FRONT SPRINGS TO FRONT AXLE 28 MM
80
SPRING CLAMP PLATE FRONT SPRINGS TO FRONT AXLE
80
PLATE FRONT SPRINGS TO FRONT AXLE, NO.7390I I I I II
90
RUBBER BUFFER ON SPRING CLAMPING PLATE
100
U-BOLT FRONT SPRINGS TO FRONT AXLE 247MM
100
U-BOLT FRONT SPRINGS TO FRONT AXLE 240MM
100
U-BOLT FRONT SPRINGS TO FRONT AXLE 225MM
100
U-BOLT FRONT SPRINGS TO FRONT AXLE 227MM
120
SHACKLE FRONT SPRING,REAR
130
SCREW FRONT SPRING TO FRONT SPRING FRONT BRACKET M 24X180
135
HEXAGON NUT AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE M24X2
140
SCREW FRONT SPRING TO FRONT-SPRING REAR BRACKET M 24X150
145
HEXAGON NUT AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE M24X2
150
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET
170
HELPER SPRING SPRING STOP
180
BRACKET HELPER SPRING
