Mercedes A0115457726 - Пружинный штекер

214, 208 CDI, 211 CDI, 213 CDI, 216 CDI 902.611 TO IDENT-NR. R337626

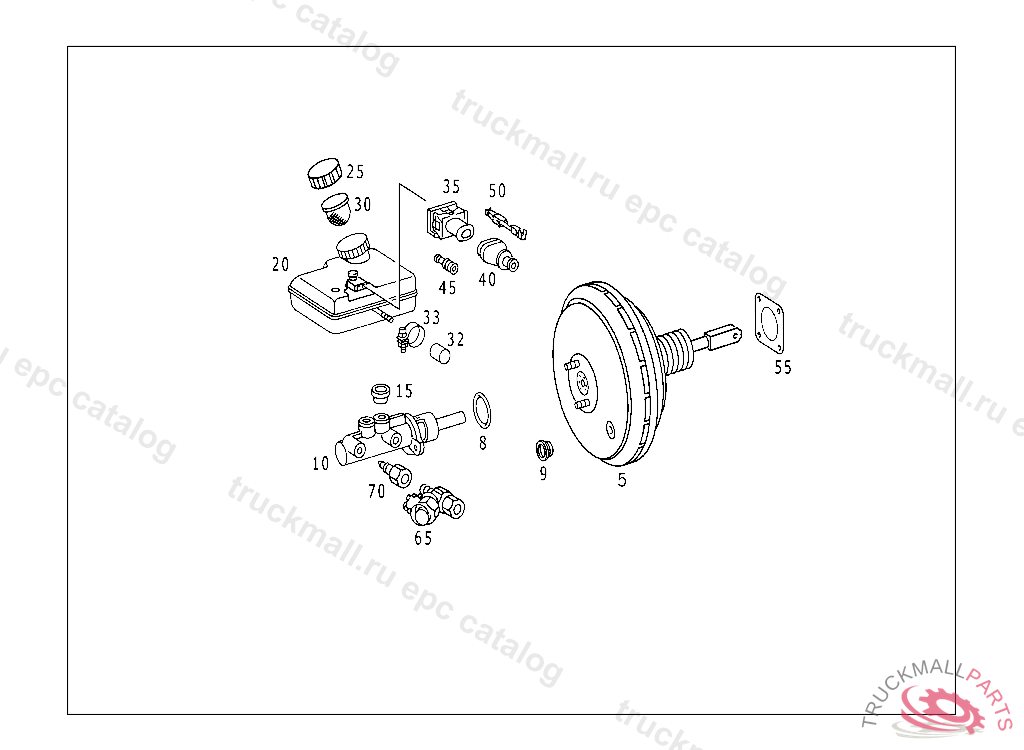

42 BRAKES - 050 BRAKE BOOSTER ASSEMBLY

Поз.
Артикул
Описание
5
A0004311527
BRAKE BOOSTER ,540072620020430 R 40072620020430
8
A0229973348
SEAL RING TANDEM BRAKE MASTER CYLINDER TO BRAKE BOOSTER
9
A0269977448
SEAL RING TANDEM BRAKE MASTER CYLINDER TO BRAKE BOOSTER
10
A0004316501
BRAKE MASTER CYLINDER ,P 707202
15
A0004311935
CONNECTOR
20
A0024314002
RESERVOIR
25
A0004317433
FILLER CAP , Replaced By: A0014314487
25
A0014314487
PROTECTIVE CAP
30
A0004317134
STRAINER
32
A6014310087
PROTECTIVE CAP BRAKE FLUID RESERVOIR
33
N916002012100
CLAMP LINE CONNECTION
35
A1405453528
PLUG INJECTION VALVE
40
A0005458583
CAP. BOOT ,126372
45
A0005452839
WIRE SEAL
50
A0115457726
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0MM2,126372
55
A9014310180
GASKET BRAKE BOOSTER TO PEDAL BEARING BRACKET
65
A0004317731
TEST CONNECTION BRAKE POWER REGULATOR
70
A0004283530
CONNECTOR
