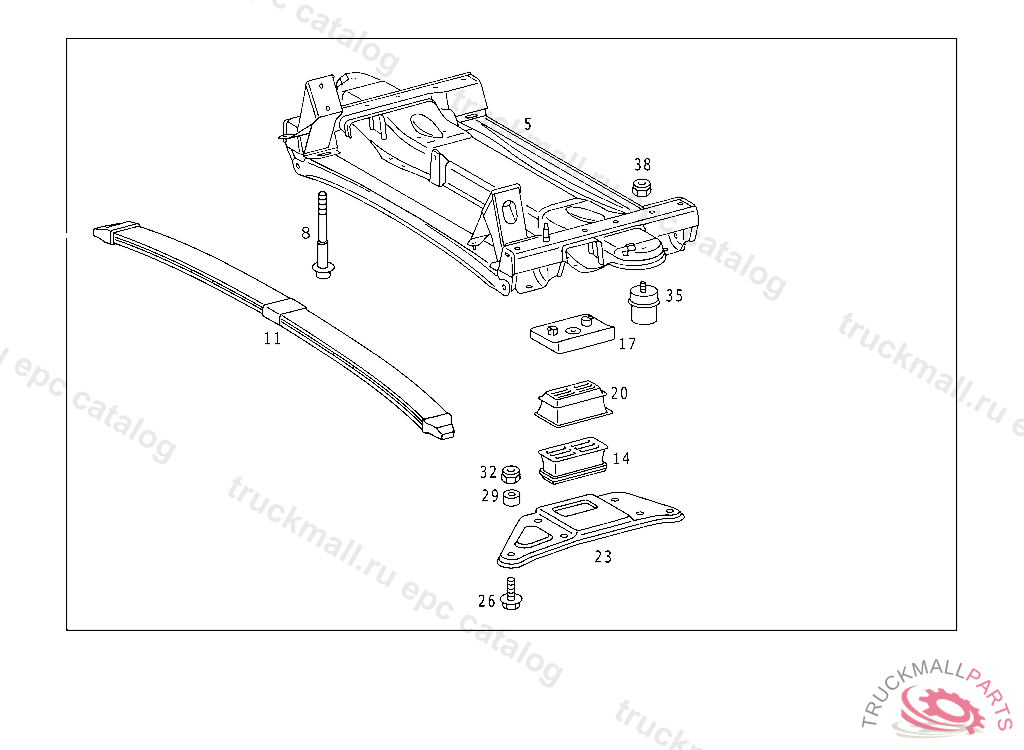

Поз.
Артикул
Описание
5
8
SCREW. BOLT FRONT SUBFRAME TO FRAME
11
FRONT SPRING LEAF SPRING
14
SPRING SEAT FRONT SPRING TO FRONT AXLE,RIGHT
14
SPRING SEAT FRONT SPRING TO FRONT AXLE,LEFT
14
SPRING SEAT FRONT SPRING TO FRONT AXLE,RIGHT
14
SPRING SEAT FRONT SPRING TO FRONT AXLE,RIGHT
14
SPRING SEAT FRONT SPRING TO FRONT AXLE,LEFT
14
SPRING SEAT FRONT SPRING TO FRONT AXLE,LEFT
17
SHIM FRONT SPRING TO FRONT AXLE,RIGHT
17
SHIM FRONT SPRING TO FRONT AXLE,LEFT
20
SPRING SEAT FRONT SPRINGS TO FRONT AXLE
20
SPRING SEAT FRONT SPRING TO FRAME
20
SPRING SEAT FRONT SPRING TO FRAME
23
PLATE LEFT SPRING
23
PLATE RIGHT SPRING
26
SCREW , Replaced By: N910105012013
26
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
26
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
29
BUSHING FRONT SPRINGS TO FRONT AXLE
32
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
32
NUT BRACKET TO SIDE MEMBER M12X1.5
35
RUBBER BUFFER AXLE STOP, ONLY REPLACEABLE BY PAIRS
38
NUT STRAP TO BRACKET
