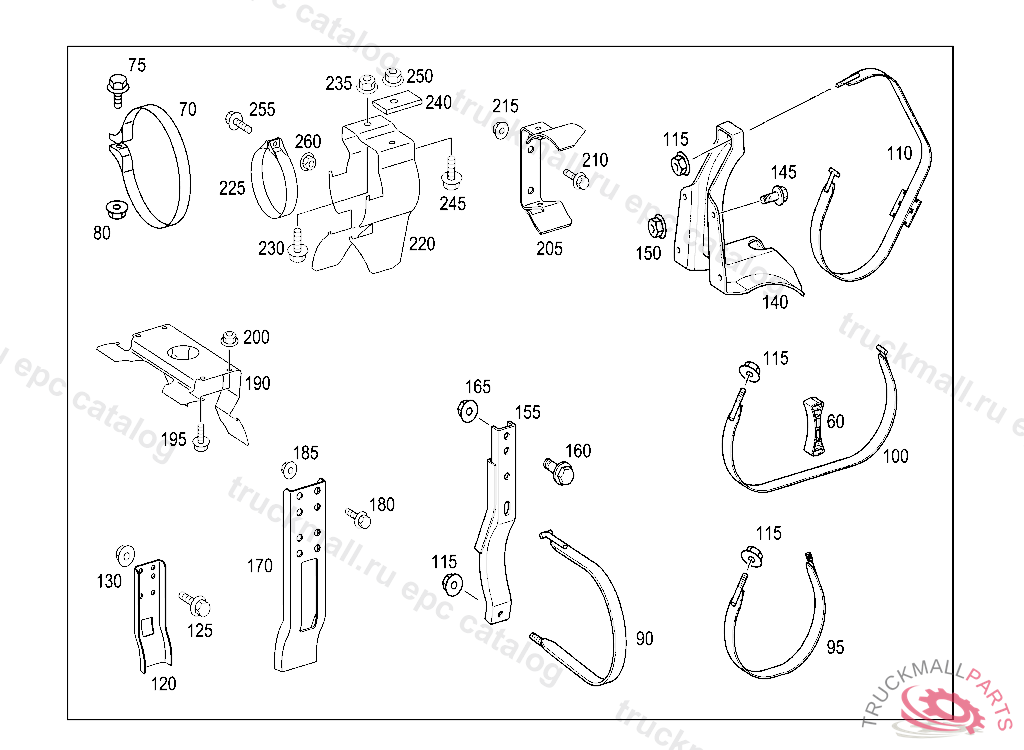

Поз.
Артикул
Описание
60
BASE AIR RESERVOIR TO CONSOLE
90
STRAP AIR RESERVOIR TO BRACKET
100
STRAP AIR RESERVOIR
110
STRAP AIR RESERVOIR
110
STRAP , Replaced By: A9414301240
115
NUT STRAP TO BRACKET M10
115
NUT STRAP TO SUPPORT M12X1.5
140
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT, REAR
145
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
150
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
155
BRACKET AIR RESERVOIR TO SUPPORT
160
HEXAGON HEAD BOLT. SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M14X1,5X80,D 228766
160
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
165
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
