Поз.
Артикул
Описание

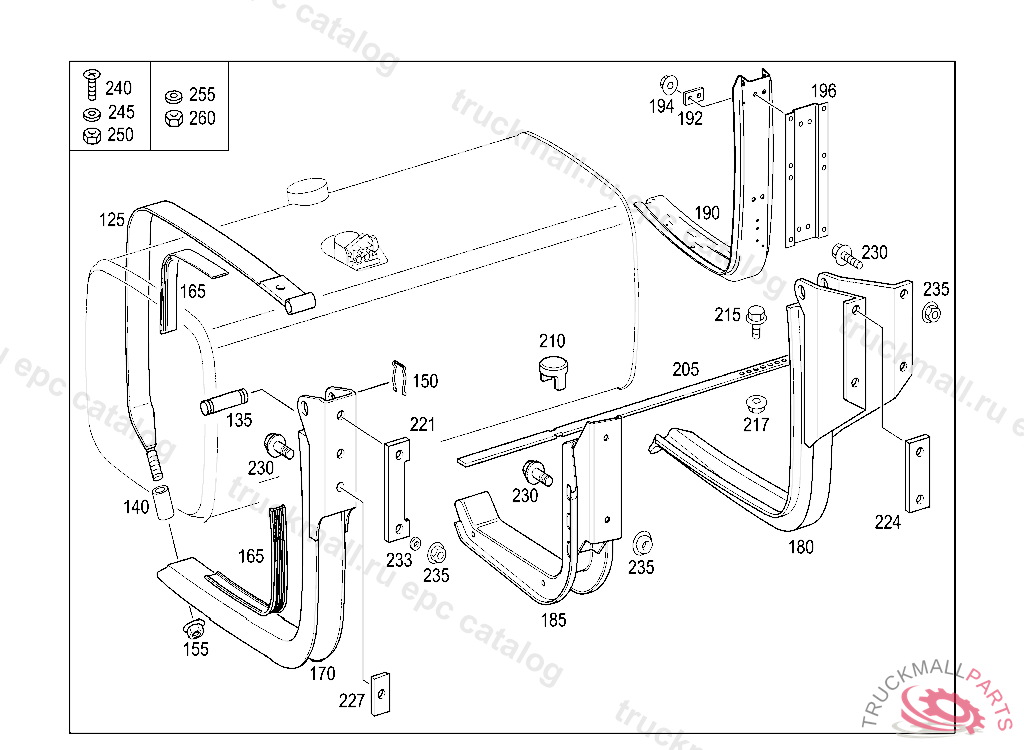

125
STRAP FUEL TANK
125
STRAP FUEL TANK TO CONSOLE
135
CLAMPING BOLT STRAP TO SUPPORT
135
PIN STRAP TO SUPPORT
140
HOSE STRAP TO SUPPORT 60MM
150
CLIP STRAP TO SUPPORT
155
NUT STRAP TO SUPPORT M 12X1.5
165
PAD BRAKE ANCHOR 35.9MM
165
PAD BRAKE ANCHOR 53 MM
165
PAD STRAP 61.5MM
165
PAD STRAP 61 MM
170
SUPPORT REAR TANK
170
SUPPORT REAR RIGHT TANK
170
SUPPORT FUEL TANK TO FRAME
170
SUPPORT FUEL TANK TO FRAME
230
HEXAGON HEAD BOLT. SCREW LOCK SPRING TO CROSS MEMBER M14X1.5X30
230
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
235
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
235
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
