Mercedes A3521550272 - ГАЙКА М12

OM 364 LA 374.976

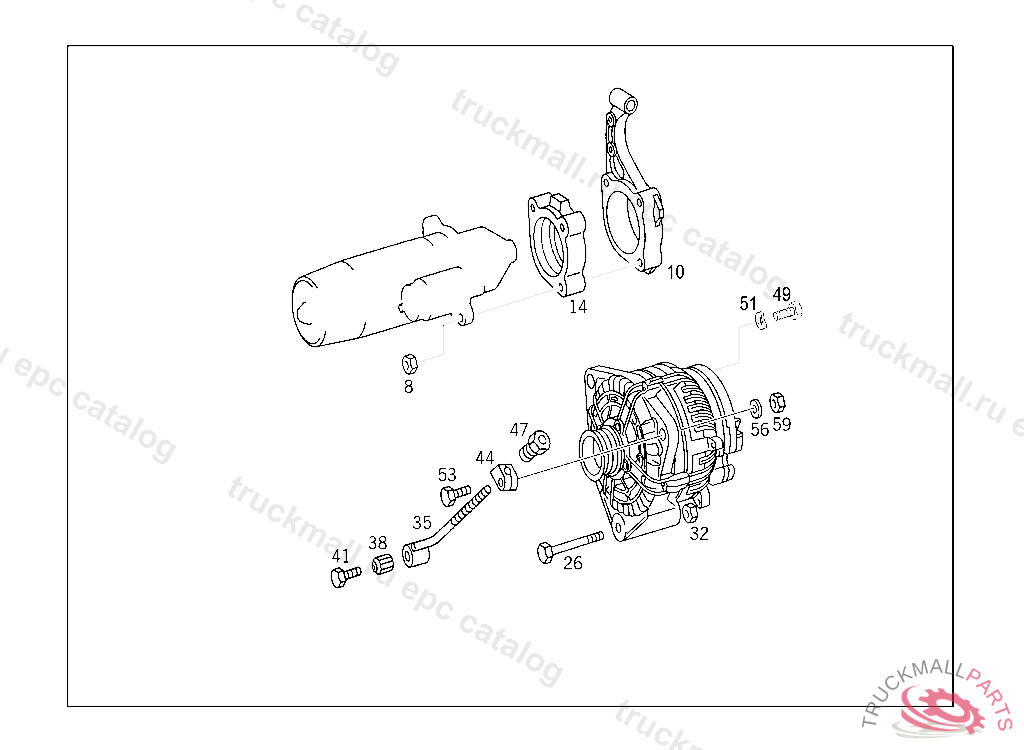

15 ELECTRICAL EQUIPMENT - 045 ATTACHMENT PARTS FOR STARTING MOTOR & ALTERNATOR

Поз.
Артикул
Описание
8
N000934010008
NUT , Replaced By: N304032010002
14
A3661510212
INTERMEDIATE PIECE STARTING MOTOR INTERMEDIATE FLANGE
26
A3521550171
SCREW ALTERNATOR MOUNTING
32
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
35
A3761507072
CLAMPING BOLT (CLAMPING BOLT)
38
A4031550250
BUSHING
41
N910105010011
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
44
A3141550228
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
47
A3521550272
NUT TIGHTENER PULLEY TO LEVER
53
N000960012262
SCREW CLAMPING BOLT TO ALTERNATOR
56
N000125013012
WASHER SUPPORT TO FRAME,D 127794
59
N000934012009
NUT FUEL TANK TO SUPPORT
