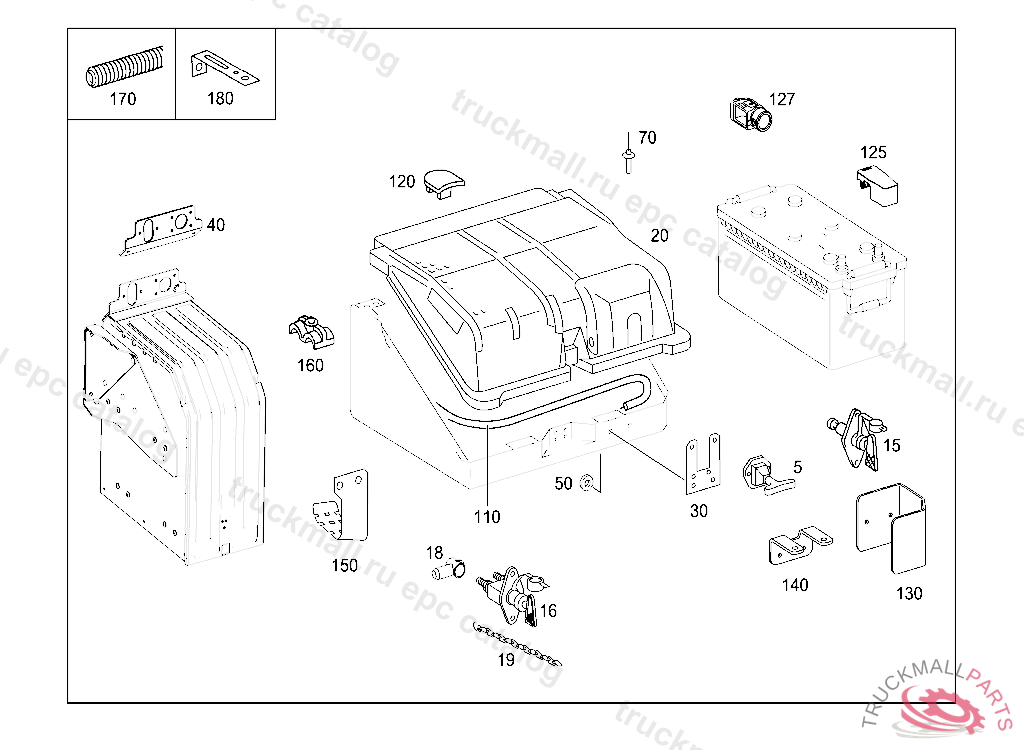

Поз.
Артикул
Описание
5
SWITCH. BATT.SWITCH (BATTERY MASTER SWITCH)
5
SWITCH (BATTERY MASTER SWITCH)
15
SWITCH (BATTERY MASTER SWITCH)
16
BATTERY CIRCUIT BREAKER (BATTERY MASTER SWITCH)
18
COVER BATTERY CUT-OFF
19
CHAIN FILLER CAP
20
COVER BATTERY COVERING
30
BRACKET BATTERY MASTER SWITCH
40
BRACKET BATTERY MASTER SWITCH
50
BUSHING TOOL BOX TO FRAME, TO BE ADAPTED DURING ASSEMBLY
50
BUSHING , Replaced By: A4403220150
50
WASHER BRACKET TO LEFT SIDE MEMBER
50
SPACER TUBE MOUNTING PARTS
70
RIVET MOUNTING PARTS 4 X 15 MM
110
ELECTRIC CABLE BATTERY, ORDER BY THE METER
120
BOOT POS. POLE
125
BOOT BATTERY EURO
127
BOOT
130
BRACKET BATTERY MASTER SWITCH
130
BRACKET BATTERY MASTER SWITCH
140
BRACKET BATTERY MASTER SWITCH
140
PROTECTIVE COVER BATTERY MASTER SWITCH
150
BRACKET AT SIDE MEMBER
160
CLAMP BATTERY CABLE
170
PROTECTIVE HOSE , Replaced By: A0005461930
170
INSULATING HOSE RIGID, FOR CABLE HARNESS DIA.: 23 MM, ORDER BY THE METER
180
BRACKET LINE MOUNTING
