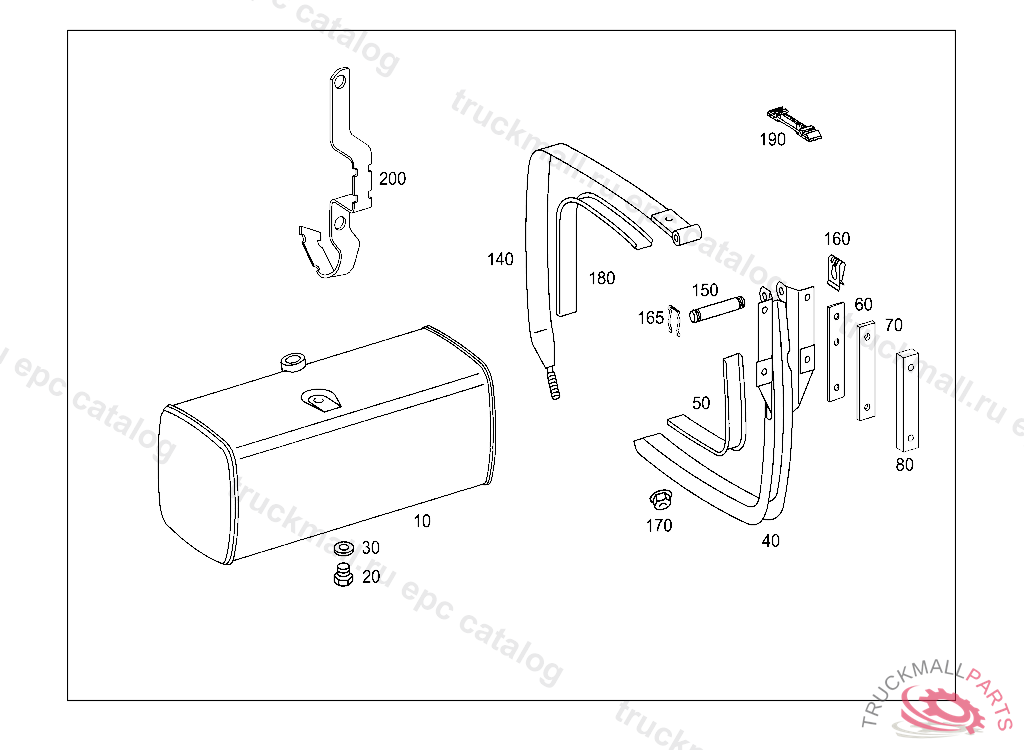

1823 L - 1833 L - 950.539 - 47 FUEL SYSTEM
Поз.
Артикул
Описание
10
FUEL TANK RIGHT 500L
20
SCREW PLUG FUEL TANK
30
SEAL RING FUEL LINE TO FEED PUMP
40
SUPPORT FUEL TANK TO FRAME, IN CONJUNCTION WITH CODE: 8BZK
40
SUPPORT FUEL TANK TO FRAME
40
SUPPORT FRONT TANK
40
SUPPORT FUEL TANK TO FRAME
50
PAD BRAKE ANCHOR 111 MM
60
SHIM MOUNTING PARTS
70
SHIM MOUNTING PARTS 8 MM
70
SHIM FUEL TANK TO FRAME 12MM
70
SHIM MOUNTING PARTS 10 MM
80
SHIM MOUNTING PARTS 20MM
80
SHIM MOUNTING PARTS 20MM
140
STRAP FUEL TANK TO CONSOLE
150
PIN STRAP TO SUPPORT
160
CLIP STRAP TO SUPPORT
165
CLIP STRAP TO SUPPORT
170
NUT STRAP TO SUPPORT M12X1.5
180
PAD STRAP 61 MM
190
BRACKET FUEL LINE
200
BRACKET LINE MOUNTING
