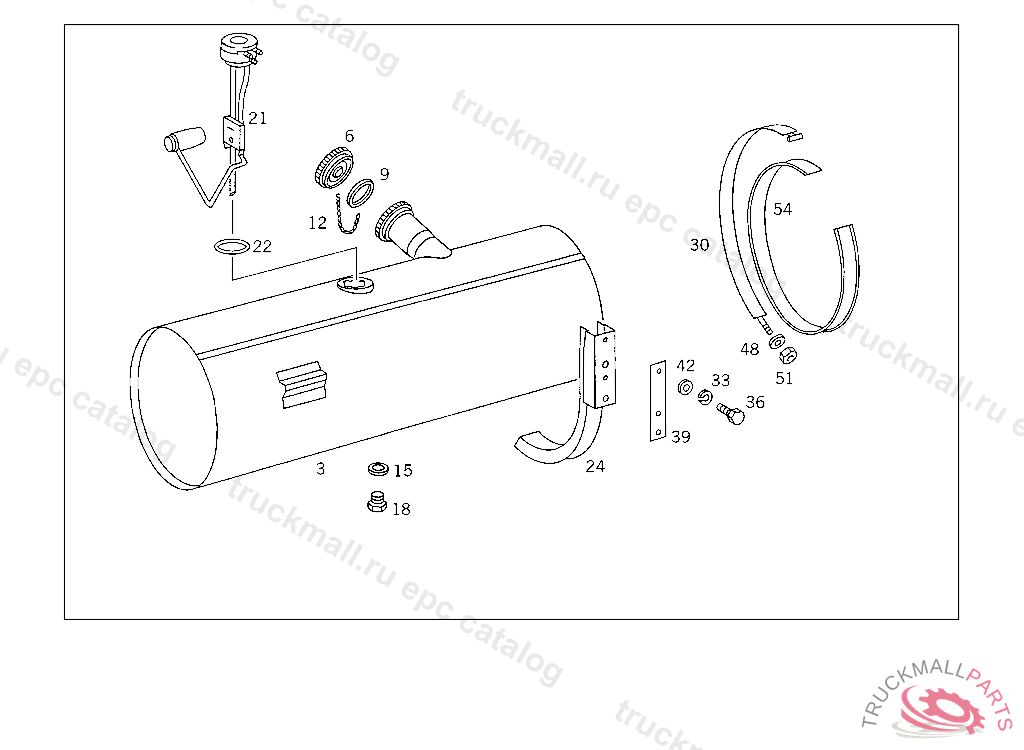

Поз.
Артикул
Описание
3
FUEL TANK200 L
3
FUEL TANK , Replaced By: A3554700101
3
FUEL TANK , Replaced By: A3874701301
6
FILLER CAP , Replaced By: A0004700305
6
FILLER CAP , Replaced By: A0004717930
6
FILLER CAP , Replaced By: A0004700305
6
FILLER CAP , Replaced By: A0004700305
6
FILLER CAP
9
SEAL RING
12
CHAIN FILLER CAP
15
SEAL RING FUEL LINE TO FEED PUMP
18
SCREW PLUG FUEL TANK
18
SCREW PLUG , Replaced By: N007604014110
21
SENDER UNIT , Replaced By: A0085428017
21
SENDER UNIT FUEL GAUGE
22
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
24
SUPPORT REAR
24
SUPPORT FRONT
30
STRAP FUEL TANK TO CONSOLE,5 149420
30
STRAP FUEL TANK,4 492432
30
STRAP ,5 149419, Replaced By: A6204700340, +001N000934012022
33
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
36
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
36
SCREW , Replaced By: N308676014020
39
SHIM , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 624614, Replaced By: A3834750384
39
SHIM SUPPORT TO SIDE MEMBER
42
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
42
WASHER , Replaced By: A3379900440
48
WASHER
51
NUT STRAP TO SUPPORT,5 149419
51
NUT STRAP TO SUPPORT
54
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
54
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
999
SENDER UNIT ,4 261141, Replaced By: A0045423717, +001A0004710235, +002A3054760126, +001A3879900078
999
SENDER UNIT ,4 312464, Replaced By: A0045423717, +002A3054760126, +001A3879900078
999
SENDER UNIT , Replaced By: A0055423817
999
SENDER UNIT FUEL GAUGE,4 316250
999
SENDER UNIT ,4 312465
999
SUPPORT , Replaced By: A3854700042
999
FUEL TANK , Replaced By: A6734701001
999
FUEL TANK , Replaced By: A3834701101, +001N007603014302, +001N007604014106
999
SUPPORT ,4 829902
999
STRAP AIR RESERVOIR, TO BE ADAPTED DURING ASSEMBLY
999
STRAP FUEL TANK TO SUPPORT,5 149420
999
RIVET12X28 MM, TO BE ADAPTED DURING ASSEMBLY
999
RIVET FRAME TRUSS TO SIDE MEMBER
