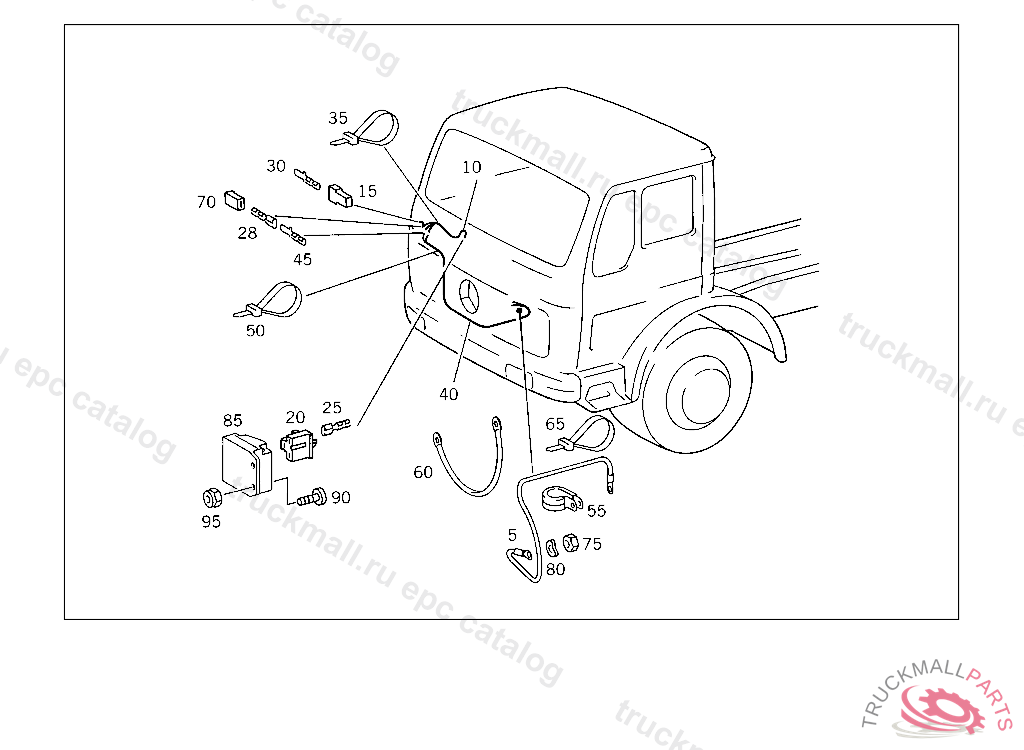

Поз.
Артикул
Описание
5
ELECTRIC CABLE FROM ALTERNATOR TO STARTING MOTOR,4 477130
5
ELECTRIC CABLE FROM ALTERNATOR TO STARTING MOTOR,4 477131
5
ELECTRIC CABLE FROM ALTERNATOR TO STARTING MOTOR,4 477130
10
ELECTRIC CABLE FROM REGULATOR TO PLUG CONNECTION AT CAB,4 483482
15
PIN BUSHING HOUSING UNIPOLAR
20
PIN BUSHING HOUSING 3-POLE,4 483482
25
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
28
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
28
PIN BUSHING , Replaced By: A0075458226
30
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
35
LOOM TIE LINE MOUNTING 280 MM
40
ELECTRIC CABLE , Replaced By: A3815401227
40
ELECTRIC CABLE FROM FRONT PLUG CONNECTION TO ALTERNATOR,4 483482
40
ELECTRIC CABLE FROM FRONT PLUG CONNECTION TO ALTERNATOR,4 483482
45
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
50
LOOM TIE LINE MOUNTING 280 MM
55
CLAMP BRAKE HOSE BRACKET
60
BRACKET ALTERNATOR BRANCH-OFF
65
LOOM TIE LINE MOUNTING 280 MM
70
PIN BUSHING HOUSING UNIPOLAR
75
NUT IN CASE OF SUBSEQUENT INSTALLATION
75
NUT
75
NUT BALL PIVOT TO LEVER
75
NUT , Replaced By: N304032005005
80
SPRING WASHER , Replaced By: N000137008204
80
SPRING WASHER , Replaced By: N000137008212
80
SPRING WASHER ALTERNATOR CONNECTION W
80
SPRING WASHER HEATER PLUG CABLE HARNESS
80
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
85
REGULATOR AND CUT-OUT TRANSISTOR,4 483482
90
SCREW CLAMP MOUNTING M 6X16
90
SCREW , Replaced By: N000000001146
95
NUT , Replaced By: N913004006001
95
NUT PUMP TO BRACKET
999
BRACKET CABLE HARNESS MOUNTING
999
BRACKET , Replaced By: A0005462243
999
SPACER TUBE ALTERNATOR BRANCH-OFF TO ALTERNATOR SA 24 439/03/04
999
CLAMP BRACKET TO ALTERNATOR
999
GROMMET ,5 180265
999
ELECTRIC CABLE FROM ALTERNATOR TO STARTING MOTOR,4 477131
999
BRACKET ALTERNATOR BRANCH-OFF
999
BRACKET ALTERNATOR BRANCH-OFF TO ALTERNATOR SA 24 439/03/04
999
ELECTRIC CABLE
999
SCREW CONTROL UNIT TO CAB
999
NUT TWO-WAY VALVE TO BRACKET
