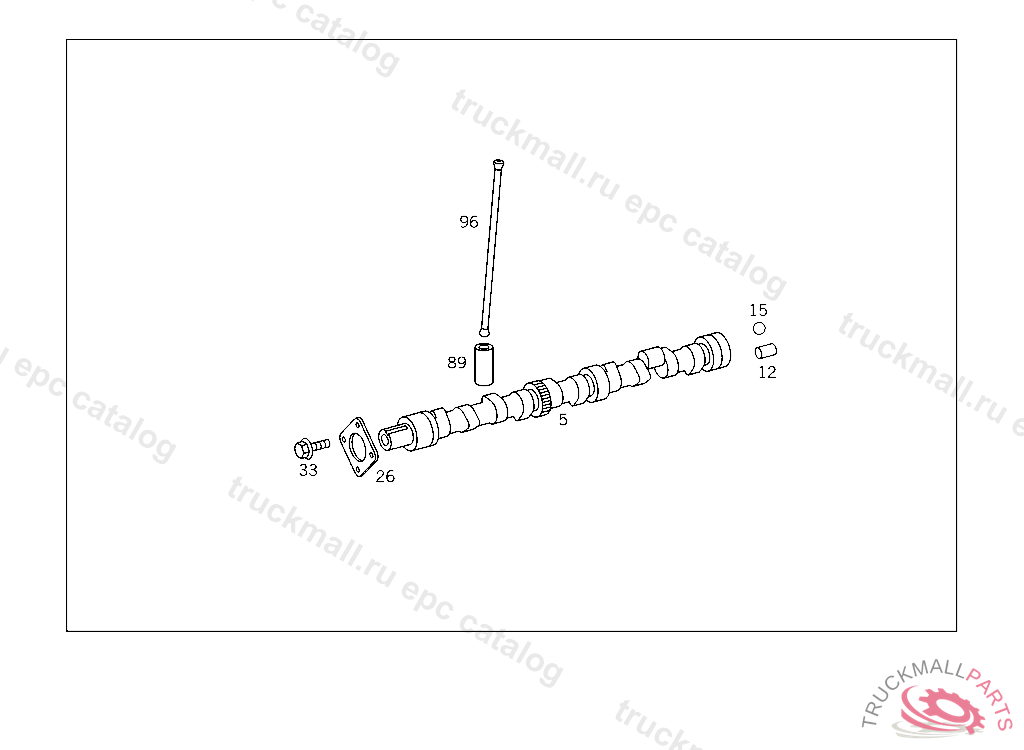

OM 364 A - 380.943 - 05 TIMING

5

CAMSHAFT , IN CASE OF ENGINES LESS CAMSHAFT-DRIVEN AIR COMRPESSOR, LOCK OIL BORE IN CRANK PIN BY MEANS OF A CLAMP PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART

15

BALL TO PLUG OIL CONNECTION TO AIR COMPRESSOR

26

THRUST WASHER CAMSHAFT FIXING, 340.930 FROM ENGINE 085456 ONLY APPLICABLE TO ENGINES WITH CAMSHAFT DRIVEN INJECTION TIMING DEVICE

33

SCREW THRUST WASHER TO CRANKCASE, UP TO ENGINE 283201 YEAR OF MANUFACTURE 1978

89

VALVE TAPPET STANDARD 27.98 MM-27.99 MM

96

PUSH ROD

96

PUSH ROD
