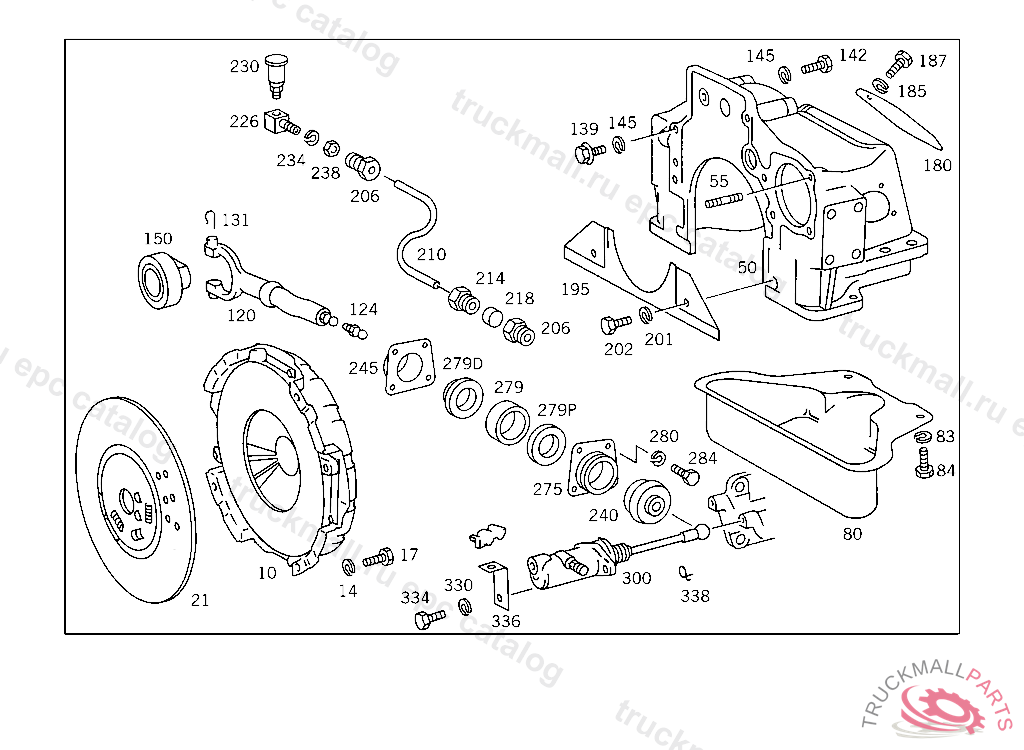

Поз.
Артикул
Описание
10
CLUTCH PRESSURE PLATE , Replaced By: A0032509904
10
CLUTCH PRESSURE PLATE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE4 188090-4 277323 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0022508704, +001A0032508403, +008N000931008311
14
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
17
SCREW CLUTCH TO FLYWHEEL M8X18,4 188090-4 277323
17
SCREW , Replaced By: N304017008030
21
CLUTCH DISC
21
CLUTCH DISC
21
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
21
CLUTCH DISC , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE4 188090-4 277323, Replaced By: A0032508403, +001A0022508704, +008N000931008311
50
BELL HOUSING ,4 276221449800, Replaced By: A3812510501, +001N000908016000, +001N007603016100
50
BELL HOUSING
55
STUD STARTING MOTOR MOUNTING
80
BELL HOUSING LOWER PART,5 332727 SEAL DURING ASSEMBLY
80
HOUSING ,5 332726, Replaced By: A6762500105, +001A3522500055
80
BELL HOUSING ,4 276221471619, Replaced By: A3812501005, +006N000137006204, +006N914125006306
80
HOUSING , Replaced By: A6762510002
83
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
84
SCREW BELL HOUSING LOWER PART TO BELL HOUSING
84
HEXAGON HEAD BOLT , Replaced By: N000000002270
84
SCREW , Replaced By: N910106006006
120
RELEASE LEVER , Replaced By: A3812540208, +001A3029910015
120
RELEASE LEVER (RELEASE YOKE)
124
BALL PIVOT RELEASE YOKE
124
BALL PIVOT RELEASE YOKE
131
SPRING LOCK RELEASE YOKE TO RELEASE BEARING
131
SPRING LOCK , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO.: 4 276221 UP TO ENGINE 599046 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3812540113
139
SCREW , Replaced By: A0029906804
139
SCREW , Replaced By: N910105012025
142
SCREW BELL HOUSING TO CYLINDER CRANKCASE M 12X145
145
LOCK WASHER FITTING TO BRACKET
150
RELEASE BEARING , Replaced By: A0012509315
150
RELEASE BEARING
150
RELEASE BEARING , Replaced By: A0012509315
180
END COVER TOP,785588
185
SPRING WASHER LICENSE PLATE TO BRACKET
187
SCREW COVER PLATE TO COVER PLATE M 6 X 10
187
SCREW , Replaced By: N304017006034
195
PROTECTIVE PLATE , Replaced By: A3522500055
195
PROTECTIVE PLATE , Replaced By: A3522510106
195
PROTECTIVE PLATE BELL HOUSING,5 332727 SEAL DURING ASSEMBLY
201
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
202
SCREW COVER PLATE TO COVER PLATE M 6 X 12
202
SCREW , Replaced By: N304017006018
206
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
210
HOSE RELEASE BEARING LUBRICATION
214
UNION SCREW RELEASE COLLAR LUBRICATION
218
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
226
GREASE NIPPLE RELEASE COLLAR LUBRICATION
226
INTERMEDIATE PIECE , Replaced By: A3072510208
226
INTERMEDIATE PIECE ,5 190179, Replaced By: A6209970088, +001A6209880135
230
GREASE CUP ,5 190179, Replaced By: A6209880135, +001A6209970088
230
CAP RELEASE BEARING LUBRICATION
234
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
238
NUT RELEASE BEARING LUBRICATION
238
NUT , Replaced By: N308675014000
238
NUT , Replaced By: N308675014002
240
BOOT , FIRST EXHAUST STOCK OF OLD PARTS FROM IDENT NO. 4 188090 - 4 965929, Replaced By: A6152540097
240
BOOT RELEASE YOKE
245
BRACKET INSIDE
275
BRACKET OUTSIDE
275
BRACKET , Replaced By: A3812500243
279
BEARING ,763226, Replaced By: A3802540035, +001A3852540051, +001A3802540159
279
BEARING RELEASE YOKE
279
BEARING RELEASE YOKE
280
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
284
SCREW PIPE CLAMP
284
SCREW , Replaced By: N304017008021
300
SLAVE CYLINDER CLUTCH
330
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
334
SCREW SUPPORT TO CROSS MEMBER M 10X28
336
BRACKET STARTING CABLE
338
CIRCLIP POWER CYLINDER TO THROTTLE VALVE LEVER
999
RIVET LINING WITH INTERMEDIATE SPRING
999
RIVET LEAF SPRING TO CLUTCH DISC
999
LEAF SPRING ,4 277323
999
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
999
RIVET LEAF SPRING TO CLUTCH DISC 5X8 MM,4 277323
999
RIVET , Replaced By: A0002523975
999
LEAF SPRING , REBORE HOLE IN SUPPORTING PLATE FROM 5.2MM TO 6.2MM, Replaced By: A0002524719, +002A0002523975
999
RIVET LINING WITH CLUTCH DISC,5 563495
999
RIVET LEAF SPRING TO CLUTCH DISC
999
RIVET LINING WITH INTERMEDIATE SPRING,5 563495
999
LEAF SPRING
999
CLUTCH LINING310 MM,4 277323
999
CLUTCH LINING330 MM,4 275351
999
REPAIR KIT CLUTCH SLAVE CYLINDER
999
ROD
999
LOCK
999
BOOT
999
BLEEDER VALVE , Replaced By: A0004310265
999
PROTECTIVE CAP , Replaced By: A0004217187
999
PROTECTIVE CAP ,5 962906
999
VALVE , Replaced By: A3075530107
999
REPAIR KIT , Replaced By: A0002900811
999
CLUTCH LINING , Replaced By: A0012529010
999
CLUTCH LINING ASBESTOS-FREE 310 MM,4 277323
999
CLUTCH LINING ASBESTOS-FREE
999
BALL PIVOT CLUTCH ACTUATION,4 601609
999
VALVE CLUTCH SLAVE CYLINDER
999
SEAL RING RELEASE YOKE
999
SEAL RING RELEASE YOKE
999
SEAL RING RELEASE YOKE
999
SEAL RING RELEASE YOKE
999
GREASE NIPPLE (PARTS KIT) RELEASE BEARING LUBRICATION
