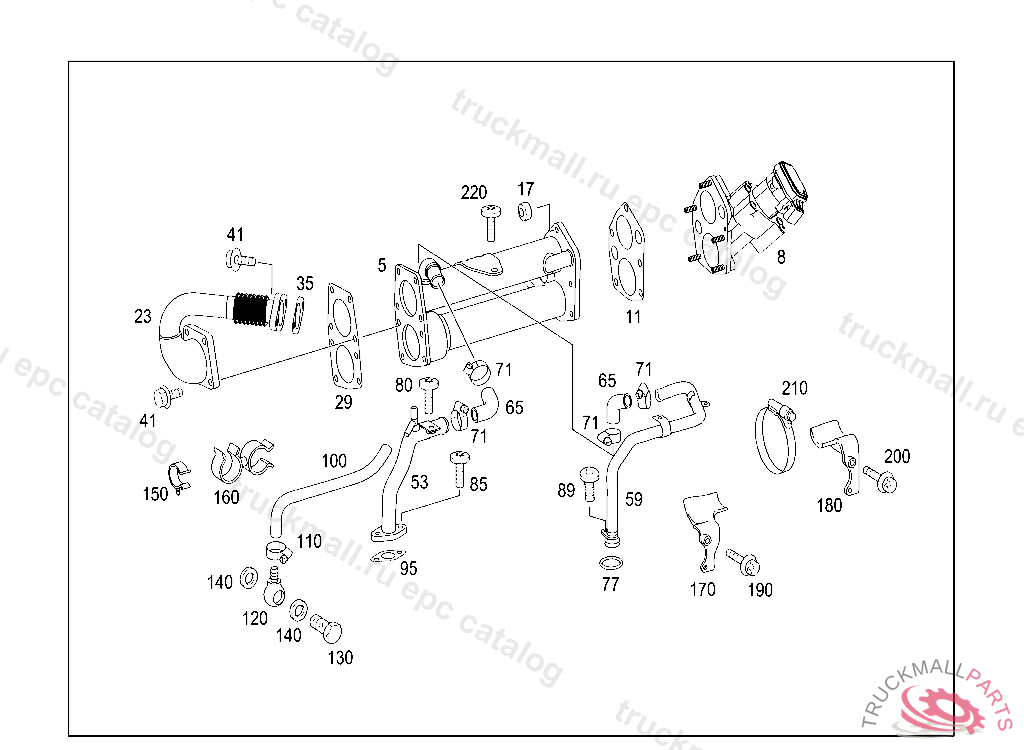

Поз.
Артикул
Описание
5
EXHAUST GAS COOLER
5
EXHAUST GAS COOLER , Replaced By: A9041420479
8
VALVE ,*0408737 THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A9061420219
8
VALVE ,*0408737, Replaced By: A9061420319, +001A9061421080
8
VALVE ,*0408737, Replaced By: A9061420619
8
VALVE EXHAUST GAS RECIRCULATION VALVE,*0408738
8
VALVE ,*0408737, Replaced By: A9061420619
11
GASKET EXHAUST GAS RECIRCULATION VALVE, HOT TO RADIATOR
11
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A9061420980
11
GASKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 383187, Replaced By: A9061421080
17
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
23
PIPE EXHAUST GAS RECIRCULATION LINE, COLD
29
GASKET BETWEEN EXHAUST GAS RECIRCULATION LINE AND EXHAUST GAS COOLER
35
GASKET EXHAUST GAS RECIRCULATION LINE TO INTERMEDIATE FLANGE
41
SCREW BRACKET TO SIDE MEMBER M8X20
53
LINE COOLING WATER LINE,*0524227
53
LINE COOLING WATER LINE,*0524226
59
LINE COOLING WATER LINE,*0524226
59
LINE COOLING WATER LINE,*0524227
65
HOSE COOLING WATER LINE
71
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
77
SEAL RING
80
HEXALOBULAR BOLT. SCREW HAND BRAKE VALVE TO BRACKET M 8X12
85
HEXALOBULAR BOLT PIPE ELBOW TO BRACKET M8X16
89
HEXALOBULAR BOLT SPOILER FASTENING M8X30
95
GASKET HEATING PIPE TO ENGINE
100
HOSE TO COOLANT LINE, NOT USED
110
CABLE TIE. CLAMP GUIDE TUBE TO CYLINDER CRANKCASE
120
BANJO UNION
130
BANJO BOLT HOSE TO COOLING WATER LINE
140
SEAL RING
150
CLAMP HOSE TO HOSE
160
HOSE BRACKET. LOOM TIE
170
BRACKET EXHAUST GAS COOLER TO CYLINDER HEAD
180
BRACKET EXHAUST GAS COOLER TO CYLINDER HEAD
190
SCREW BRACKET TO SIDE MEMBER M8X20
200
HEXALOBULAR BOLT BRACKET TO BRACKET M 10X30
210
CLAMP HOSE FASTENING 50-70X13 MM
220
HEXALOBULAR BOLT BRACKET TO OIL PAN M8X24
