Поз.
Артикул
Описание

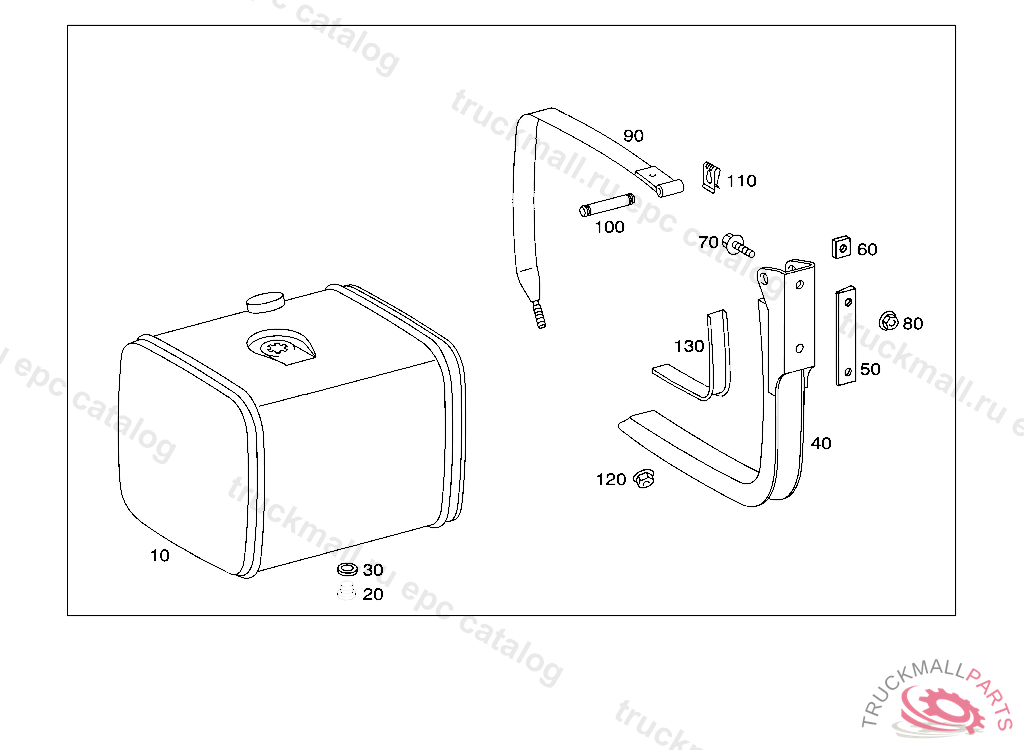

10
FUEL TANK ALUMINUM 145L
10
FUEL TANK RIGHT 145L, Replaced By: A4054701101
20
SCREW PLUG FUEL DISCHARGE
30
SEALING RING. SEAL RING FUEL TANK
40
SUPPORT FUEL TANK TO FRAME
40
SUPPORT REAR RIGHT TANK
50
SHIM MOUNTING PARTS
60
SHIM MOUNTING PARTS 7MM
70
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X45
70
HEXAGON HEAD BOLT TRAILER COUPLING TO REAR CROSS MEMBER M14X1.5X55
80
NUT SUPPORT TO FRAME
90
STRAP FUEL TANK TO CONSOLE
100
PIN STRAP TO SUPPORT
110
CLIP STRAP TO SUPPORT
110
CLIP RESERVOIR TO CAB FRONT PANEL
120
NUT STRAP TO SUPPORT M12X1.5
130
PAD STRAP 61 MM
130
PAD BRAKE ANCHOR 53 MM
