Поз.
Артикул
Описание

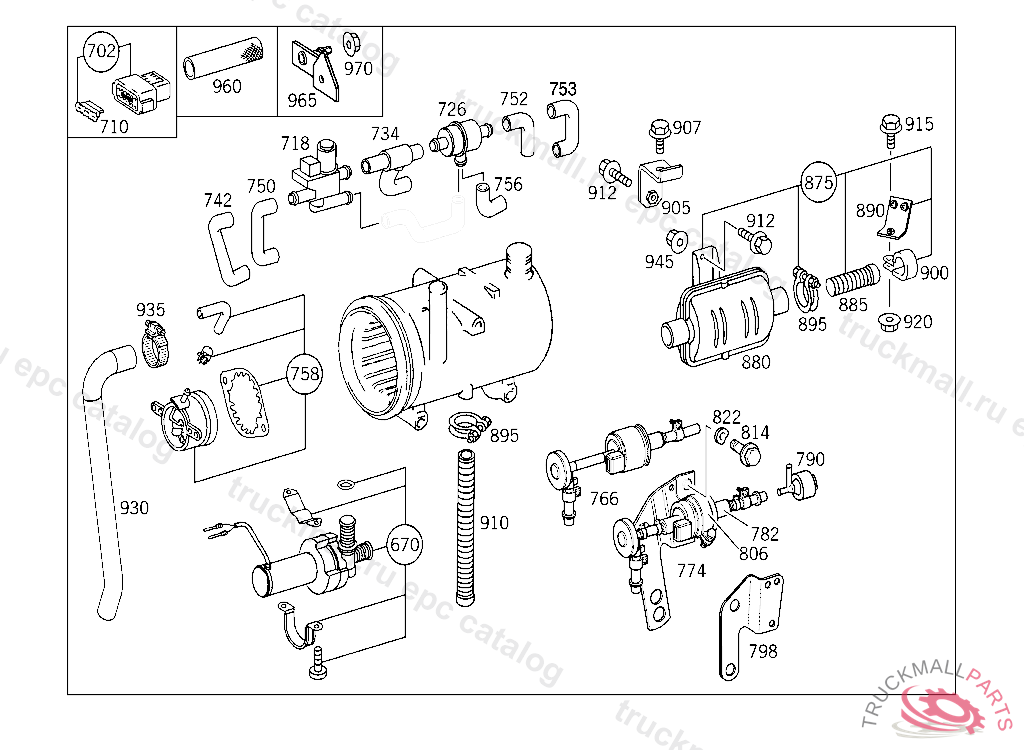

670
PUMP
702
CASE
710
TERMINAL
718
VALVE (SOLENOID VALVE)
718
VALVE , Replaced By: A0028302884
726
THERMOSTAT , Replaced By: A0008358179
726
THERMOSTAT
734
CONNECTING PIPE ,K 574789
742
HOSETO 942 500 15 98
750
HOSE
752
HOSE BETWEEN THERMOSTAT AND VALVE
753
HOSETO 942 500 15 98
756
HOSETO A 942 500 14 98
758
BURNER
766
AUXILIARY PUMP (METERING PUMP)
774
AUXILIARY PUMP ,K 546798 TO BE ADAPTED DURING ASSEMBLY
782
AUXILIARY PUMP ,K 546798 TO BE ADAPTED DURING ASSEMBLY
782
AUXILIARY PUMP
790
TANK DAMPING CYLINDER
798
BRACKET FUEL-OIL PUMP
806
CLAMP PUMP TO BRACKET TO 000 470 84 94
806
CLAMP PUMP TO BRACKET
814
SCREW COVER PLATE TO COVER PLATE M 6 X 10
822
SPRING WASHER LICENSE PLATE TO BRACKET
875
MUFFLER HEATER UNIT
875
MUFFLER HEATER UNIT,K 223600
875
MUFFLER HEATER UNIT
875
MUFFLER HEATER UNIT
880
EXHAUST MUFFLER HEATER UNIT
885
PIPE LINE
890
BRACKET MUFFLER ON STRUT
895
HOSE CLAMP EXHAUST PIPE TO HEATER UNIT
900
CLAMP
905
BRACKET MUFFLER ON STRUT
907
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
907
SCREW , Replaced By: N910143008002
910
PIPE LINE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0009854170
910
PIPE LINE , Replaced By: A9428350315
910
TUBE (EXHAUST LINE)
912
SCREW CLAMP MOUNTING M 6X16
915
SCREW BRACKET TO SIDE MEMBER M8X20
915
SCREW BRACKET TO CAB REAR PANEL M 8X20
920
NUT HORN TO BRACKET M8
930
HOSE , Replaced By: A9425064535
930
HOSE FROM EXPANSION TANK TO HEATING PIPE
930
HOSE FROM EXPANSION TANK TO HEATING PIPE
935
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
945
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
960
INSULATING HOSE , Replaced By: A0015462630
960
INSULATING HOSE BATTERY CABLE
965
BRACKET ATTACHMENT, EXHAUST GAS LINE
970
NUT HORN TO BRACKET M8
999
HOSE ,K 574790
999
HOSE ,K 574790
999
LIGHT EMITTING DIODE
999
PIPE SOCKETTO A 942 500 18 98
999
COVERTO A 942 500 18 98
999
PIPE LINE ,K 574790
999
BRACKET EXHAUST PIPE KP 528 093 /01, SIMPLE PART-PLEASE HAVE SHOP MADE
999
BRACKET EXHAUST PIPE KP 528 093 /02, SIMPLE PART-PLEASE HAVE SHOP MADE
999
BRACKET EXHAUST PIPE KP 528 093 /03, SIMPLE PART-PLEASE HAVE SHOP MADE
999
HOSE ,K 574790
