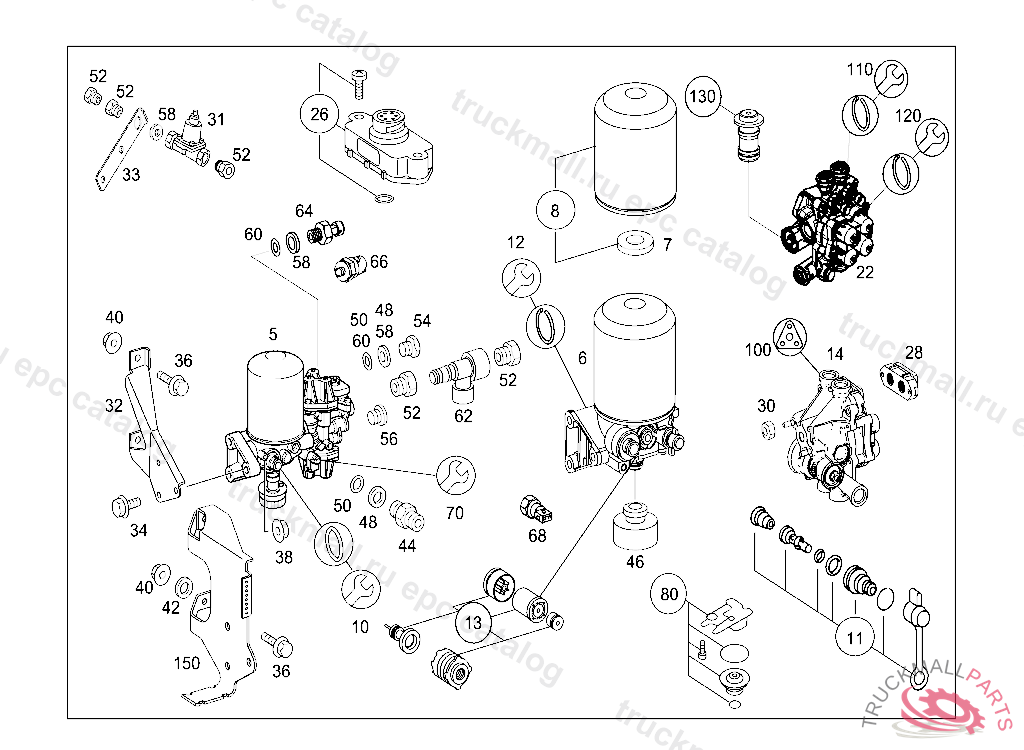

Поз.
Артикул
Описание
5
5
VALVE. ANTI-FREEZE DEVICE VALVE CLUSTERKNORR,D 625031
6
AIR DEHYDRATOR
7
SEAL RING PNEUMATIC VALVE
8
AIR CLEANER WITH OIL SEPARATOR KNORR
8
REPAIR KIT. AIR CLEANERTO 693 420 75 71
10
GASKET KIT REPAIR KIT TO A 664 431 01 15 KNORR
11
REPAIR KITTO A 664 431 01 15 KNORR
12
REPAIR KIT WITH PRESSURE SPRINGS TO A 664 431 01 15 KNORR
13
REPAIR KIT BETWEEN SPRING AND PLUNGER TO A 664 431 01 15 KNORR
14
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) KNORR
22
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) KNORR,D 521240
26
PRESSURE SENDER UNIT. PRESSURE REGULATORKNORR, Replaced By: A0015429218
28
PRESSURE REGULATOR AT FOUR-CIRCUIT PROTECTIVE VALVE KNORR
30
NUT
32
34
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
34
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
36
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 55
36
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 65
38
NUT BRACKET TO SIDE MEMBER M12X1.5
40
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
42
44
SCREW-IN FITTING LINE CONNECTION
46
MUFFLER VALVE CENTRE TO 693 420 75 71
48
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
48
THRUST RING CHECK VALVE TO AIR RESERVOIR
50
O-RING CHECK VALVE TO AIR RESERVOIR
52
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16, VOSS 232
52
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
52
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
54
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
54
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
56
SCREW PLUG , Replaced By: N000908012009
56
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
58
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
60
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
60
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
62
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10",TO M 22, VOSS 232
64
SENDER UNIT FOUR-CIRCUIT PROTECTIVE VALVE
66
PRESSURE SWITCH VALVE UNIT, REAR OF REAR AXLE 6.5 BAR
66
OIL-BREAK SWITCH VALVE UNIT, REAR OF REAR AXLE 6.5 BAR, Replaced By: A0065451114
66
PRESSURE SWITCH RELAY VALVE,CONNECTION: "21", 5.5 BAR
68
70
REPAIR KIT VALVE TO 695 420 75 71
80
ANTI-FREEZE DEVICETO A 664 431 01 15 KNORR
100
VALVE REPAIR KIT KNORR
999
VALVE SEAT
