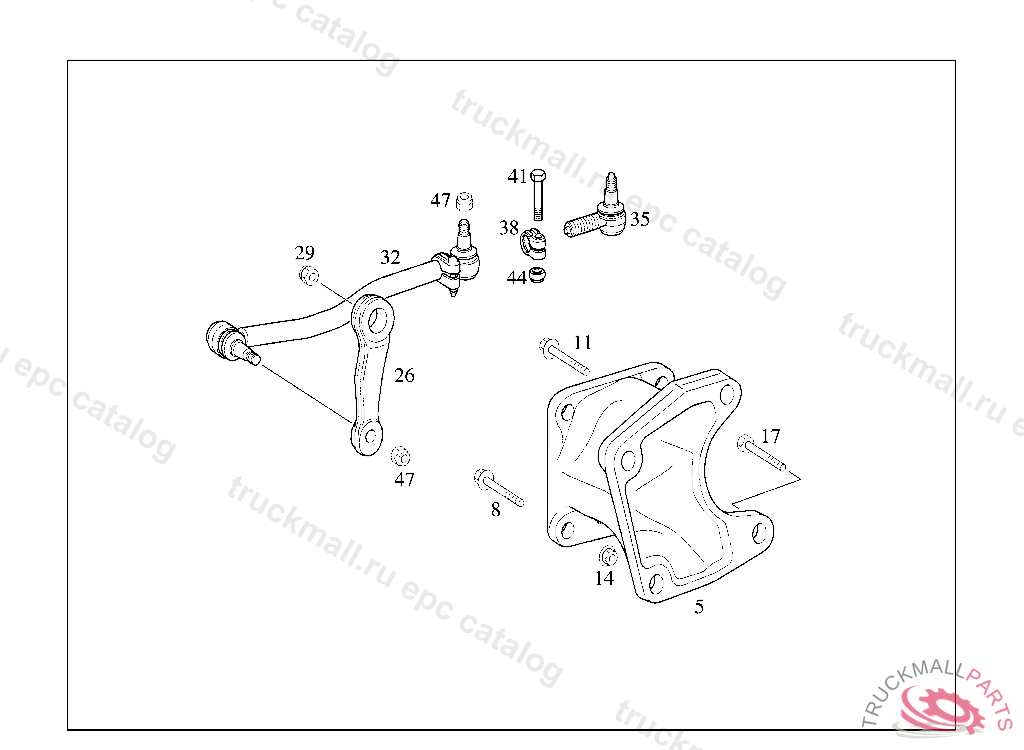

Поз.
Артикул
Описание
5
8
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M16 X 1.5 X 100
8
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M 16X1.5X60, IN CONJUNCTION WITH CODE: 8224
8
SCREW MOUNTING PARTS M16 X 1.5 X 110
8
HEXAGON HEAD BOLT TOWING EYE TO FRAME M16X1.5X80
8
HEXAGON HEAD BOLT. SCREW SHOCK ABSORBER TO LOWER BEARING BRACKET M 16X1.5X90
11
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO CONSOLE M 12X1.5X60
11
BOLT. SCREW MOUNTING PARTS M12X1.5X60
11
HEXAGON HEAD BOLT. SCREW THROTTLE HOUSING TO FRONT EXHAUST PIPE M 12X70
14
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
17
SCREW. HEXAGON HEAD BOLT STEERING BOX ASSEMBLY TO STEERING SUPPORT M20X1.5X45,V 207570
26
29
NUT PITMAN ARM TO STEERING BOX ASSEMBLY M45X1.5
29
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
32
32
35
35
38
CLAMPTO A 958 330 00 03
38
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
41
HEXAGON HEAD BOLTM10X1X50
41
SCREW STRUT TO FRAME M 12X62
44
NUT REINFORCEMENT TO BRACKET
44
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
47
NUT STEERING WHEEL TO STEERING COLUMN
