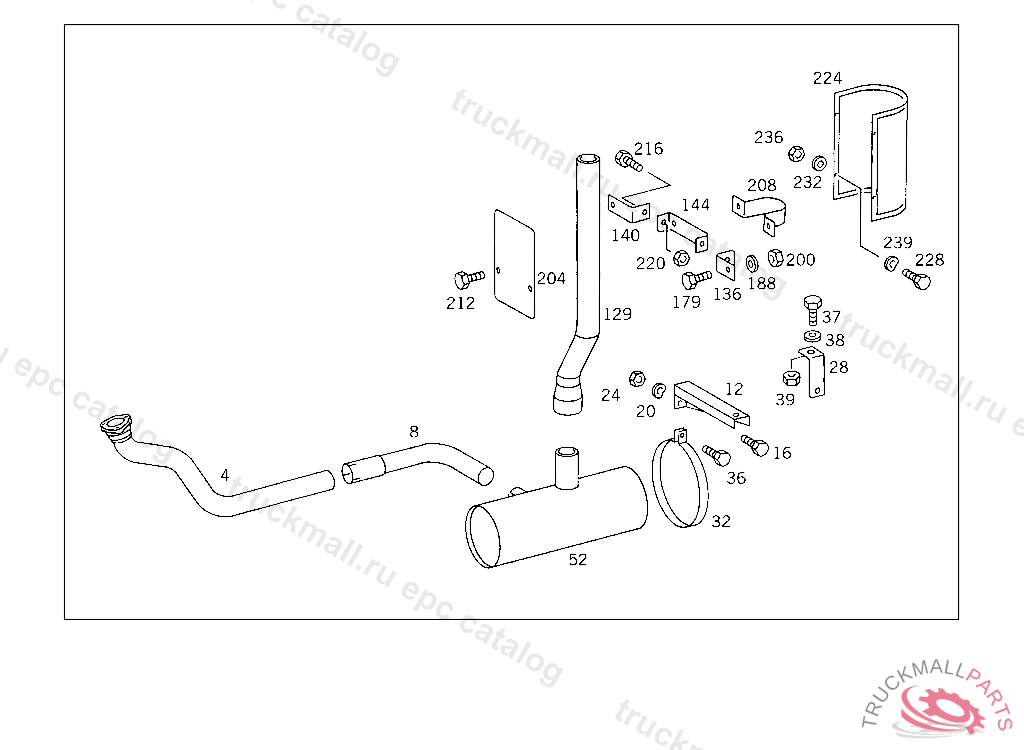

Поз.
Артикул
Описание
4
EXHAUST PIPE FRONT,FRONT PART, UP TO CHASSIS 792154,FROM CHASSIS 792155,SEE STANDARD VERSION
8
FRONT EXHAUST PIPE , Replaced By: A3664920201
8
FRONT EXHAUST PIPE FRONT,REAR PART, UP TO CHASSIS 792154,FROM CHASSIS 792155,SEE STANDARD VERSION
12
SUPPORT EXHAUST MUFFLER SUSPENSION, UP TO CHASSIS 792154,FROM CHASSIS 792155,SEE STANDARD VERSION
16
SCREW BRACKET TO LEFT SIDE MEMBER
20
LOCK WASHER FITTING TO BRACKET
24
NUT STRAP TO SUPPORT
28
BRACKET EXHAUST MUFFLER
32
CLAMP EXHAUST MUFFLER TO BRACKET
32
CLAMP , Replaced By: A3874900041
36
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
37
SCREW CONSOLE TO SIDE MEMBER
38
LOCK WASHER FITTING TO BRACKET
39
NUT STRAP TO SUPPORT
52
EXHAUST MUFFLER
129
EXHAUST PIPE , Replaced By: A3434900121
129
EXHAUST PIPE (TAIL PIPE)
129
EXHAUST PIPE , Replaced By: A3464900121
129
EXHAUST PIPE (TAIL PIPE)
136
BRACKET TAIL PIPE
140
BRACKET TAIL PIPE
144
BRACKET EXHAUST PIPE TO TOP OF CAB
179
SCREW , Replaced By: N304017008021
179
SCREW PIPE CLAMP
179
SCREW PIPE CLAMP
188
WASHER BRACKET TO LEFT SIDE MEMBER
188
WASHER BRACKET TO LEFT SIDE MEMBER
188
WASHER , Replaced By: N009021008213
200
NUT , Replaced By: N913004008001
200
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
200
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
204
PROTECTIVE PLATE BOTTOM
208
CLAMP , Replaced By: A3434920340
208
CLAMP HEAT SHIELD TO TAILPIPE
208
CLAMP , Replaced By: A4374920440
212
SCREW BRACKET TO CROSS CONNECTION STRUT
212
SCREW , Replaced By: N304017008034
216
SCREW , Replaced By: N304017008021
216
SCREW PIPE CLAMP
220
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
220
NUT , Replaced By: N913004008001
220
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
224
PROTECTIVE PLATE
228
SCREW SHIFT CASE TO SLOTTED GATE
232
WASHER , Replaced By: N009021006208
232
WASHER COMPRESSED AIR LINE TO BRACKET
236
NUT PUMP TO BRACKET
236
NUT , Replaced By: N913004006001
239
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT , Replaced By: N910113010000
999
NUT STRAP TO BRACKET
999
SCREW BRACKET TO SIDE MEMBER
999
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
CLAMP , Replaced By: N071555100501
999
SCREW , Replaced By: N304017010002
999
REAR EXHAUST PIPE
999
EXHAUST MUFFLER , Replaced By: A3464900101
999
REAR EXHAUST PIPE
999
FRONT EXHAUST PIPE
999
BRACKET
999
BRACKET TAIL PIPE
999
CLAMP REAR EXHAUST PIPE TO BRACKET
999
BRACKET TAIL PIPE
999
BRACKET REAR EXHAUST PIPE
999
CLAMP REAR EXHAUST PIPE
999
BRACKET EXHAUST MUFFLER SUSPENSION
999
BRACKET EXHAUST MUFFLER SUSPENSION
999
EXHAUST MUFFLER EXHAUST OUTLET,LEFT
999
BRACKET REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE ,4 858540
999
REAR EXHAUST PIPE ,4 858540
999
REAR EXHAUST PIPE ,4 860887
999
BRACKET EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
999
REAR EXHAUST PIPE ,4 858540
999
BRACKET REAR EXHAUST PIPE,4 858540
999
REAR EXHAUST PIPE ,4 858540
999
PLATE EXHAUST MUFFLER SUSPENSION
999
BRACKET EXHAUST MUFFLER SUSPENSION
999
EXHAUST MUFFLER EXHAUST OUTLET,RIGHT
999
EXHAUST MUFFLER ,4 860887
999
EXHAUST MUFFLER
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
CLAMP
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
BRACKET
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE , Replaced By: A3544921904
999
REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE
999
BRACKET FRONT EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE
999
BRACKET
999
BRACKET
999
BRACKET REAR EXHAUST PIPE
999
EXHAUST PIPE FRONT
999
EXHAUST MUFFLER
999
CLAMP ATTACHMENT FOR CHARGE AIR PIPE,HOT
999
CLAMP INTERMEDIATE PIECE
999
SPACER TUBE FRONT EXHAUST PIPE,B 884219
999
RUBBER DAMPING PLATE. DAMPING PAD , Replaced By: A3095860049
999
CLAMPING PLATE. BASE PLATE FRONT EXHAUST PIPE,B 884219
