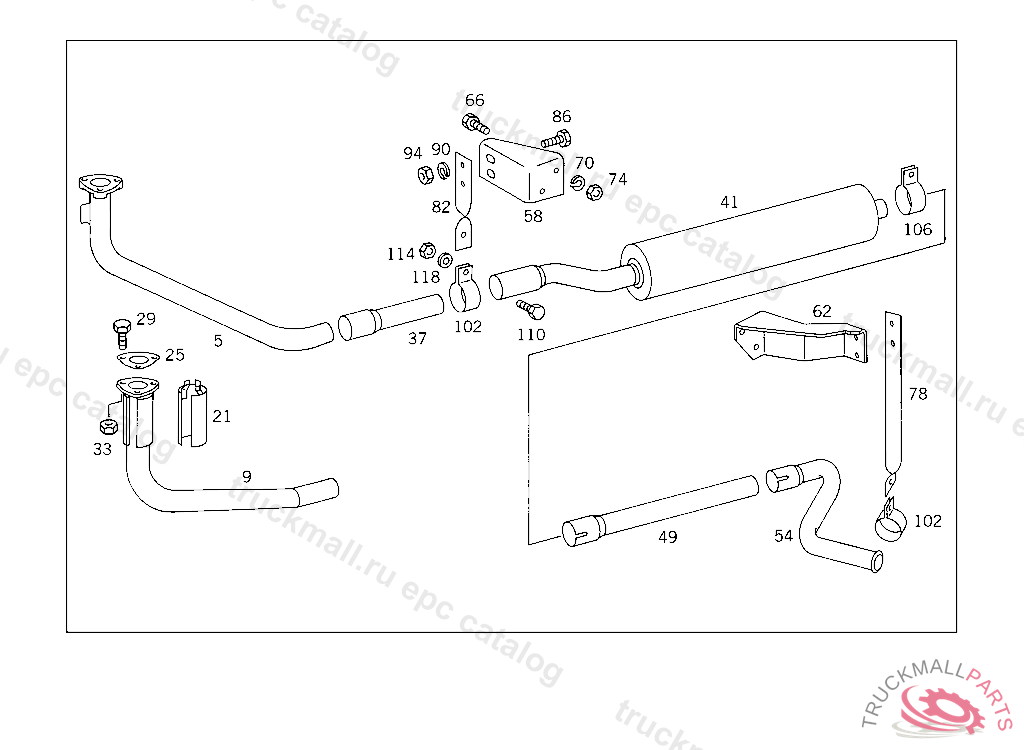

Поз.
Артикул
Описание
25
FLANGE GASKET , Replaced By: A4424920080
29
HEX. HEAD. SCREW FLANGE TO EXHAUST MANIFOLD
33
NUT STRAP TO SUPPORT,5 149419
37
CONNECTOR , Replaced By: A3024920509
58
SUPPORT EXHAUST PIPE,588185
66
SCREW , Replaced By: N304017008034
70
LOCK WASHER
74
NUT LEVER TO SHIFTING SHAFT
82
86
SCREW
90
LOCK WASHER
94
NUT LEVER TO SHIFTING SHAFT
106
CLAMP REAR EXHAUST PIPE TO SUPPORT,D 250888
110
SCREW ENGINE CROSS MEMBER TO SIDE MEMBERS M 10X28
114
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
999
BRACKET EXHAUST PIPE,588185
999
999
SUPPORT REAR EXHAUST PIPE
