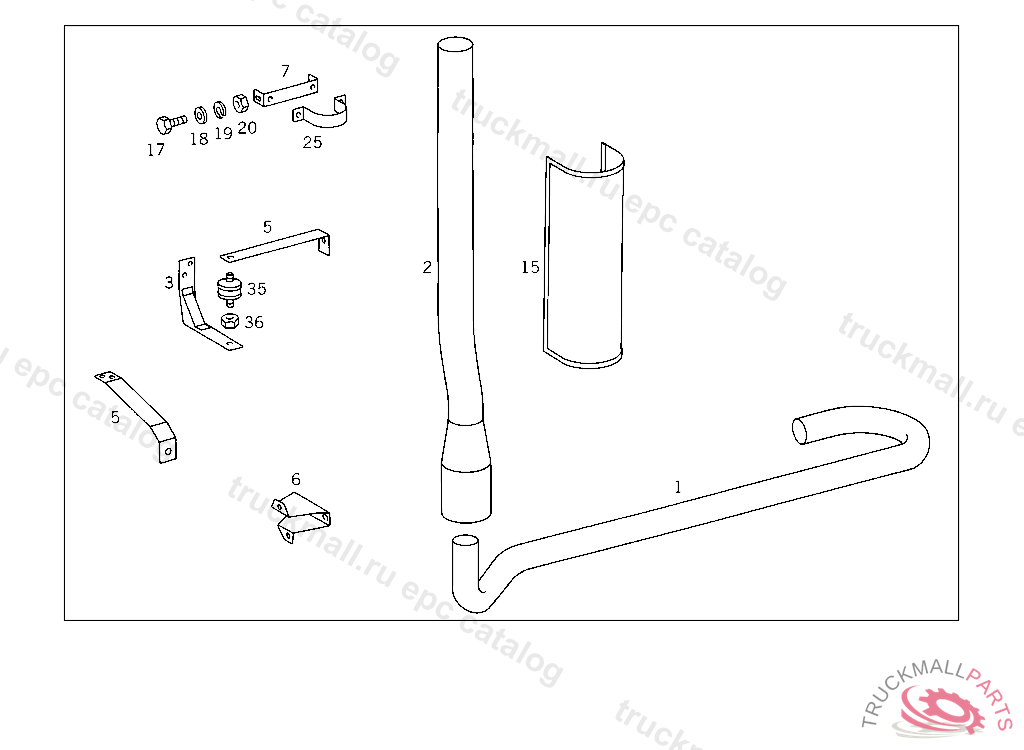

Поз.
Артикул
Описание
1
REAR EXHAUST PIPE BOTTOM, 872788
1
REAR EXHAUST PIPE BOTTOM, 872788
1
REAR EXHAUST PIPE BOTTOM, 872788
1
REAR EXHAUST PIPE BOTTOM, 872788
1
REAR EXHAUST PIPE BOTTOM, 872789
1
REAR EXHAUST PIPE BOTTOM, 872789
1
REAR EXHAUST PIPE BOTTOM, 872789
1
REAR EXHAUST PIPE BOTTOM, 872789
2
EXHAUST PIPE TOP
2
EXHAUST PIPE TOP
2
EXHAUST PIPE TOP
2
EXHAUST PIPE , Replaced By: A3604900621
2
EXHAUST PIPE TOP
2
EXHAUST PIPE , Replaced By: A3604900521
3
SUPPORT AT SIDE MEMBER, 872789
3
SUPPORT AT SIDE MEMBER, 872789
3
SUPPORT AT SIDE MEMBER, 872789
5
BRACKET EXHAUST MUFFLER TO CROSS MEMBER
5
BRACKET BEHIND EXHAUST MUFFLER
5
BRACKET , 872788
5
BRACKET , Replaced By: A3814923841
5
BRACKET REAR EXHAUST PIPE,5 193595
6
BRACKET FRONT DOOR ENTRANCE
7
BRACKET CENTRAL FRONT
7
BRACKET EXHAUST PIPE TO TOP OF CAB
7
BRACKET EXHAUST PIPE TO TOP OF CAB
15
PROTECTIVE PLATE
15
PROTECTIVE PLATE
17
SCREW SHIFT CASE TO SLOTTED GATE
18
WASHER COMPRESSED AIR LINE TO BRACKET
18
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
19
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
20
NUT , Replaced By: N913004006001
20
NUT PUMP TO BRACKET
25
CLAMP EXHAUST PIPE TO TOP OF CAB
25
CLAMP EXHAUST PIPE TO TOP OF CAB
25
CLAMP EXHAUST PIPE TO TOP OF CAB
25
CLAMP EXHAUST PIPE TO TOP OF CAB, THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE
25
CLAMP EXHAUST PIPE TO TOP OF CAB
35
RUBBER BUFFER EXHAUST MUFFLER
35
RUBBER BUFFER BRACKET TO SUPPORT
36
NUT STRAP TO BRACKET
36
NUT , Replaced By: N910113010000
36
NUT BRACKET TO SUPPORT AND TO END PIECE
36
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
BUSHING BRACKET TO ENTRANCE SUPPORT
999
CLAMP , Replaced By: A4374920440
999
BRACKET BRACKET TO SUPPORT, 872788
999
SUPPORT AT SIDE MEMBER, 872788
999
BRACKET EXHAUST PIPE TO TOP OF CAB, 872789
999
BRACKET BRACKET TO SUPPORT, 872789
999
BRACKET BRACKET TO SUPPORT, 872789
999
BRACKET TRANSFER CASE TO CROSS MEMBER
999
BRACKET EXHAUST PIPE
999
REAR EXHAUST PIPE REAR, FROM IDENT NO. 685038 ALSO INSTALLED ON 500001-599999
999
BRACKET EXHAUST PIPE
999
CLAMP HEAT SHIELD TO TAILPIPE
999
CLAMP60.5 MM,4 613839
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008028
999
SCREW FITTING TO TRANSMISSION M8X32
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N304017010002
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
SCREW SUPPORT TO CROSS MEMBER M 10X28
999
CLAMP , Replaced By: N000000001642
999
CLAMP END PIECE TO EXHAUST PIPE 63.5 MM
999
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
999
SCREW PIPE CLAMP
999
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW BRACKET TO SIDE MEMBER
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
