Поз.
Артикул
Описание
221

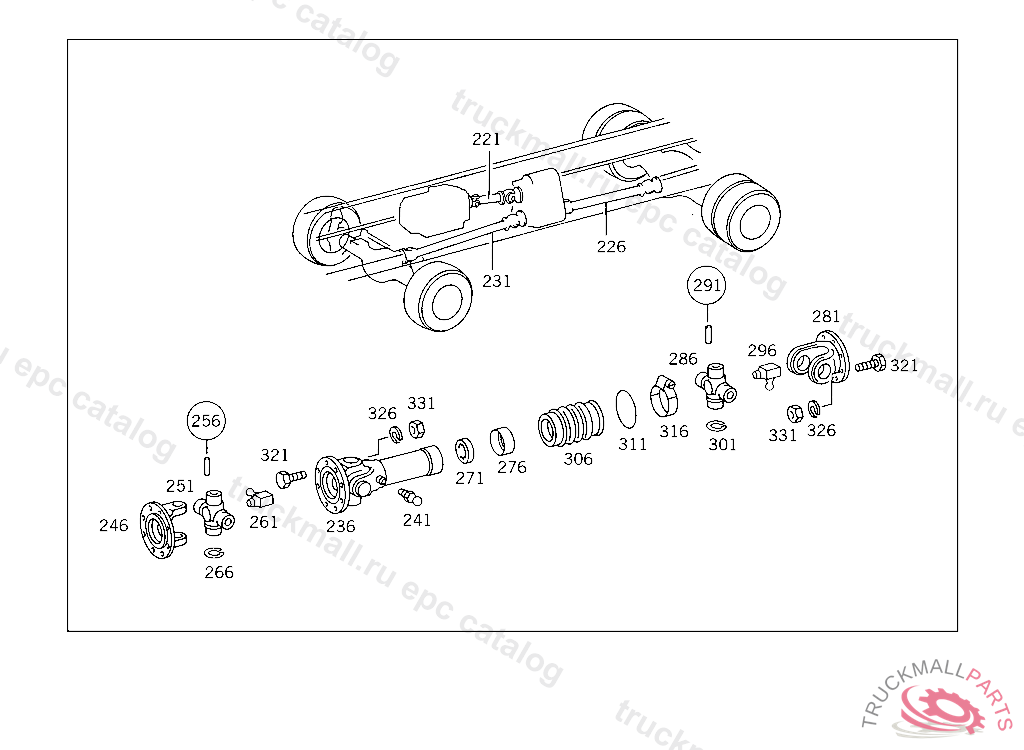

PROPELLER SHAFT FROM TRANSMISSION TO TRANSFER CASE L1291 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
226
PROPELLER SHAFT FROM TRANSFER CASE TO REAR AXLE 1418 MM,4 477511
231
PROPELLER SHAFT FROM INTERMEDIATE BEARING TO REAR AXLE 1672 MM
236
UNIVERSAL JOINT YOKE
241
GREASE NIPPLE , Replaced By: N071412008102
246
DRIVE FLANGE
251
UNIVERSAL JOINT CROSS WITH BUSHINGS, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
256
NEEDLE SET164 PIECES, BEARING BUSHING O..D.,38 MM
261
GREASE NIPPLE
266
SNAP RING2.750 MM
266
SNAP RING2.700 MM
266
SNAP RING2.650 MM
266
SNAP RING2.600 MM
266
SNAP RING2.550 MM
266
SNAP RING2.500 MM
271
SEAL RING , PROPELLER SHAFT WITH BOOT
276
SEAL HOLDER , PROPELLER SHAFT WITH BOOT
281
DRIVE FLANGE
286
UNIVERSAL JOINT CROSS WITH BUSHINGS, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
291
NEEDLE SET164 PIECES, BEARING BUSHING O..D.,38 MM
296
GREASE NIPPLE
301
SNAP RING2.500 MM
301
SNAP RING2.550 MM
301
SNAP RING2.600 MM
301
SNAP RING2.650 MM
301
SNAP RING2.700 MM
301
SNAP RING2.750 MM
306
BOOT
311
WIRE RING , WITH BOOT
316
CLAMP , WITH BOOT
321
SCREW , Replaced By: A3539900001
321
HEX. HEAD SCREW. SCREW PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE, LOCK WASHER MUST NOT BE INSTALLED
326
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
331
NUT FROM PROPELLER SHAFT TO FRONT AXLE
