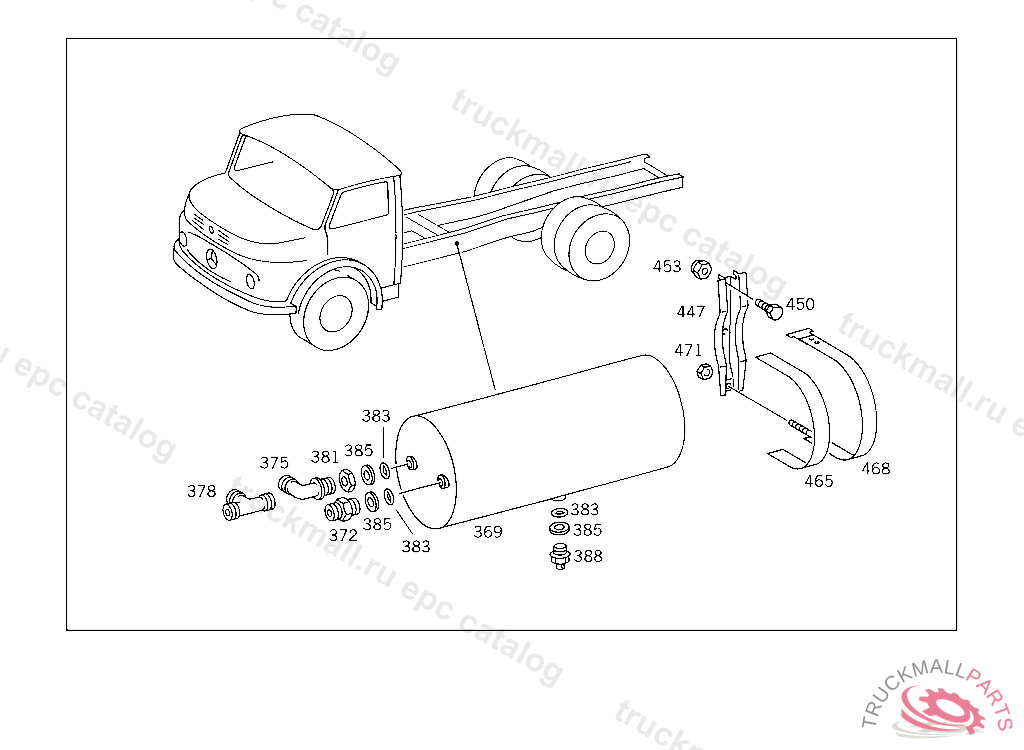

Поз.
Артикул
Описание
369
RESERVOIR40L,276 MM,8.5 BAR
369
RESERVOIR , Replaced By: A3454308205
372
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
378
T-FITTING , Replaced By: N074317000100
381
NUT CHECK VALVE TO AIR RESERVOIR
383
O-RING CHECK VALVE TO AIR RESERVOIR
385
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
388
VALVE DRAIN, Replaced By: A0004322107
388
VALVE. DRAIN VALVE DRAIN
388
VALVE
388
VALVE , Replaced By: A0004322407
388
VALVE DRAIN, Replaced By: A0004322407
447
CONSOLE AIR RESERVOIR TO SUPPORT
450
SCREW , Replaced By: N308676014020
450
SCREW BRACKET TO SIDE MEMBER
453
NUT , Replaced By: N910113014001
465
RUBBER STRIP
468
STRAP AIR RESERVOIR TO CONSOLE
471
NUT BRACKET TO SUPPORT AND TO END PIECE
999
SCREW PLUG , Replaced By: A0004315433
999
FITTING (PARTS KIT),LINE RUPTURE
999
FITTING , Replaced By: A0029905971
999
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
