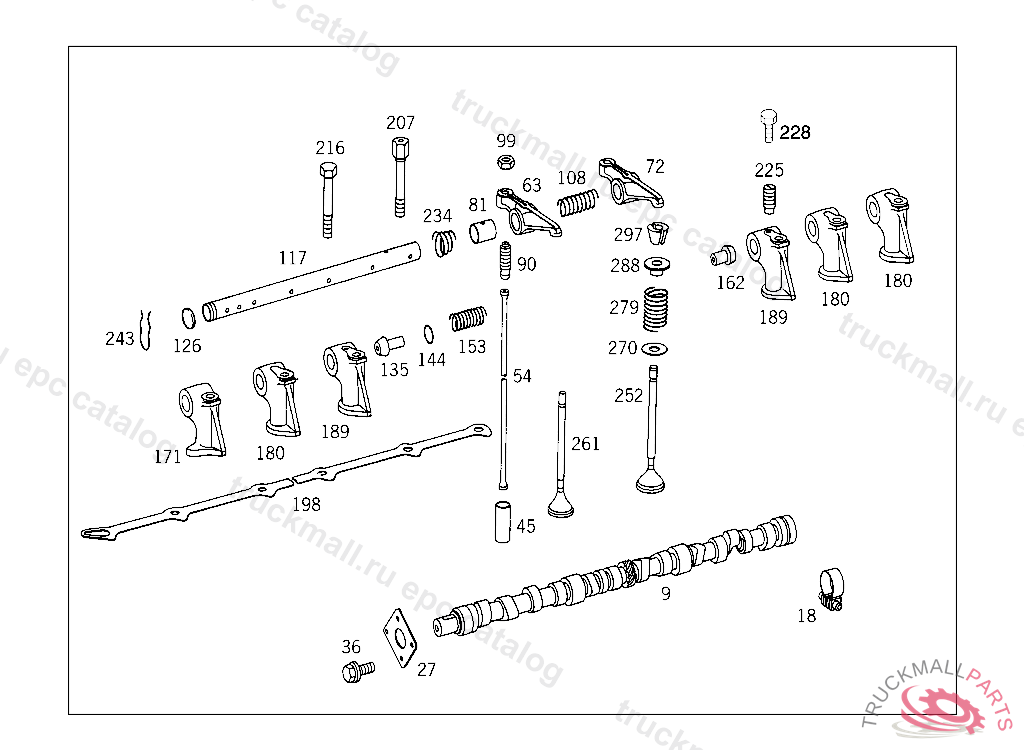

Поз.
Артикул
Описание
9
CAMSHAFT WITH CAMSHAFT MOUNTED INJECTION TIMING DEVICE,LIFTING PIN WIDTH, 28 MM
18
CLAMP
27
THRUST WASHER CAMSHAFT FIXING, 340.930 FROM ENGINE 085456 ONLY APPLICABLE TO ENGINES WITH CAMSHAFT DRIVEN INJECTION TIMING DEVICE
36
SCREW THRUST WASHER TO CRANKCASE, UP TO ENGINE 283201 YEAR OF MANUFACTURE 1978
36
SCREW COVER PLATE TO COVER PLATE
36
SCREW COVER PLATE TO COVER PLATE
45
VALVE TAPPET REPAIR SIZE II 28.48 MM-28.49 MM
45
VALVE TAPPET REPAIR SIZE I 28.18 MM-28.19 MM
45
VALVE TAPPET STANDARD 27.98 MM-27.99 MM
45
VALVE TAPPET REPAIR SIZE III 28.73 MM - 28.74 MM
54
PUSH ROD
63
ROCKER ARM WITH BUSHING,LEFT
63
ROCKER ARMNO. 1, NO. 3, NO. 5, NO. 7
72
ROCKER ARMNO. 2, NO. 4, NO. 6, NO. 8
72
ROCKER ARM WITH BUSHING,RIGHT
81
BUSHINGTO 366 050 05 33,04 34
90
BALL PIN ROCKER ARM
99
NUT
99
NUT , Replaced By: A4229900051
108
SPRING LONG,ROCKER ARM SPACING
117
ROCKER ARM SPINDLE
126
EXPANSION PLUG LATERAL P.T.O. WITH REVERSE SPEED
135
OIL PIPE
144
SEAL RING
144
SEAL RING , Replaced By: A0109971748
153
SPRING
162
SPACER TUBE
171
ROCKER ARM BRACKET , Replaced By: A3520550610
171
ROCKER ARM BRACKET OIL SUPPLY NO.1
180
ROCKER ARM BRACKETNO.2,5,6
180
ROCKER ARM BRACKET , Replaced By: A3520550410
189
ROCKER ARM BRACKETNO.3
189
ROCKER ARM BRACKET , Replaced By: A3520550210, +001N000417006001
198
SHIM , ONLY FOR REPAIR PURPOSES ON REGROUND CYLINDER HEAD
207
SCREW ROCKER SHAFT TO CYLINDER HEAD
207
SCREW
216
SCREW , Replaced By: A0029903804
216
SCREW ROCKER SHAFT TO CYLINDER HEAD
225
HEADLESS SETSCREW PLANET GEAR, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
228
HEXAGON HEAD BOLT. SCREW VALVE TO BRACKET
234
SPRING
243
SPRING
252
INTAKE VALVE
252
INTAKE VALVE , Replaced By: A3520500126
252
INTAKE VALVE , Replaced By: A3520500026
261
EXHAUST VALVE , Replaced By: A3660500027
261
EXHAUST VALVE , Replaced By: A3660500627
261
EXHAUST VALVE
270
WASHER VALVE SPRING
270
WASHER
279
VALVE SPRING
279
VALVE SPRING
288
SPRING RETAINER
297
VALVE COLLET
297
VALVE COLLET (VALVE CONE HALF)
297
VALVE COLLET
