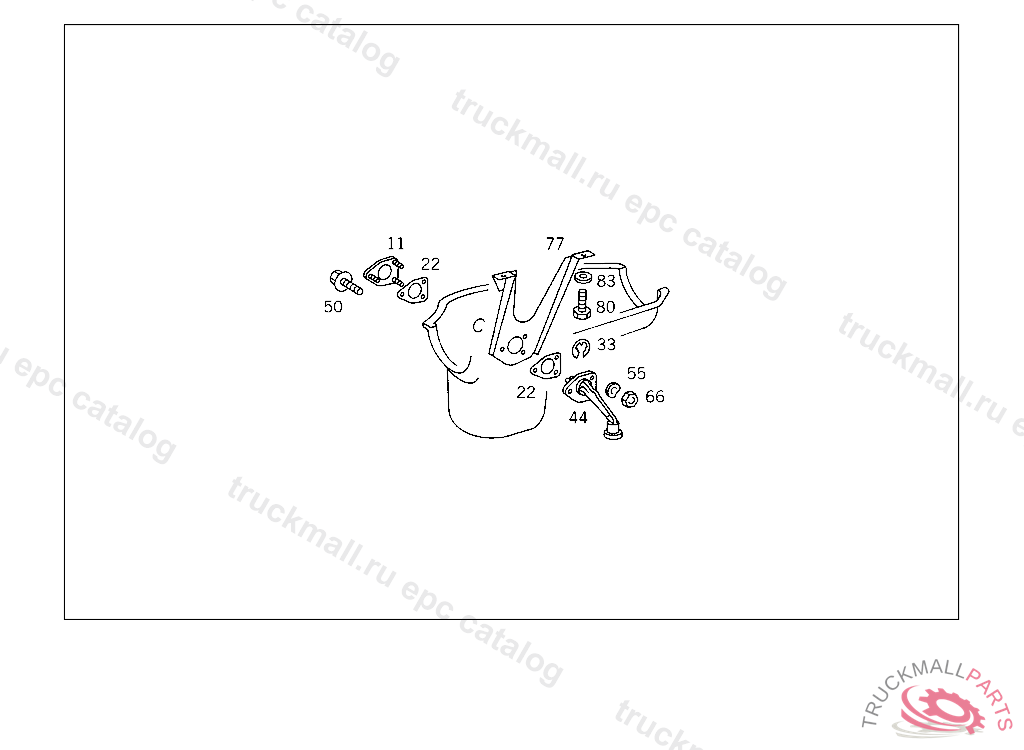

Поз.
Артикул
Описание
11
FLANGE
22
GASKET FLANGE TO OIL PAN
22
GASKET , Replaced By: A3660180580
33
LOCK PLATE RELEASE LEVER TO SHAFT
44
SENDER UNIT OIL LEVEL SENDER UNIT, MUST NO LONGER BE INSTALLED, IN ITS PLACE USE: 429 018 00 61 COVER, 352 018 08 80 GASKET
44
SENDER UNIT OIL LEVEL SENDER UNIT
50
SCREW COVER TO P.T.O. CASE,183596
55
WASHER EXHAUST MUFFLER TO STRAP
55
WASHER
66
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
77
BRACKET SENDER UNIT TO OIL PAN
77
BRACKET SENDER UNIT TO OIL PAN
80
SCREW , Replaced By: N304017006016
80
SCREW PUMP TO BRACKET
83
CONICAL SPRING WASHER COVERING
999
SCREW OIL PAN TO CYLINDER CRANKCASE
999
BRACKET
