Поз.
Артикул
Описание

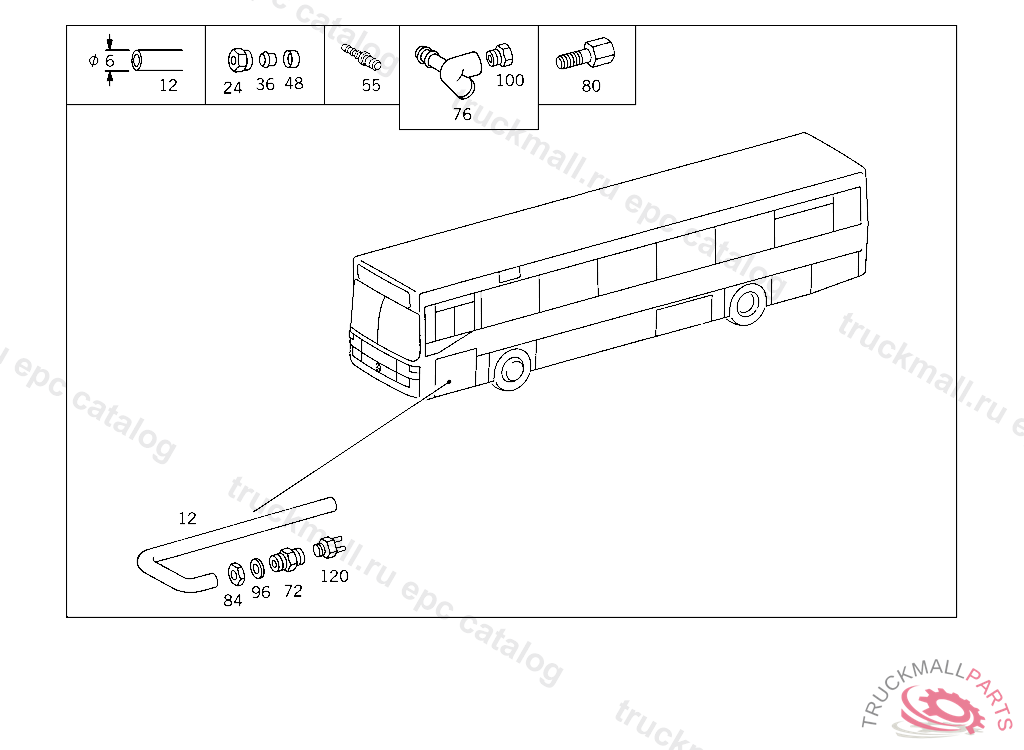

12
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
12
PLASTIC PIPE RISING PIPE 4X6 MM
24
UNION NUT
36
GLAND , Replaced By: A0019901667
48
SLEEVE LEAK LINE
55
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
55
CONNECTOR , Replaced By: A0029905378
72
FITTING , Replaced By: A0009977172
76
FITTING 3/2-WAY SOLENOID VALVE,CONNECTION: "20",5 766895, 5 806950
80
ADAPTER FITTING TEST CONNECTION
84
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
96
WASHER
100
SCREW. UNION SCREW LINE CONNECTION
100
SCREW. UNION SCREW , Replaced By: A0009973734
120
PRESSURE SWITCH MAKE PULSE 0.5BAR
999
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
999
T-FITTING EXHAUST-BRAKE POWER CYLINDER
