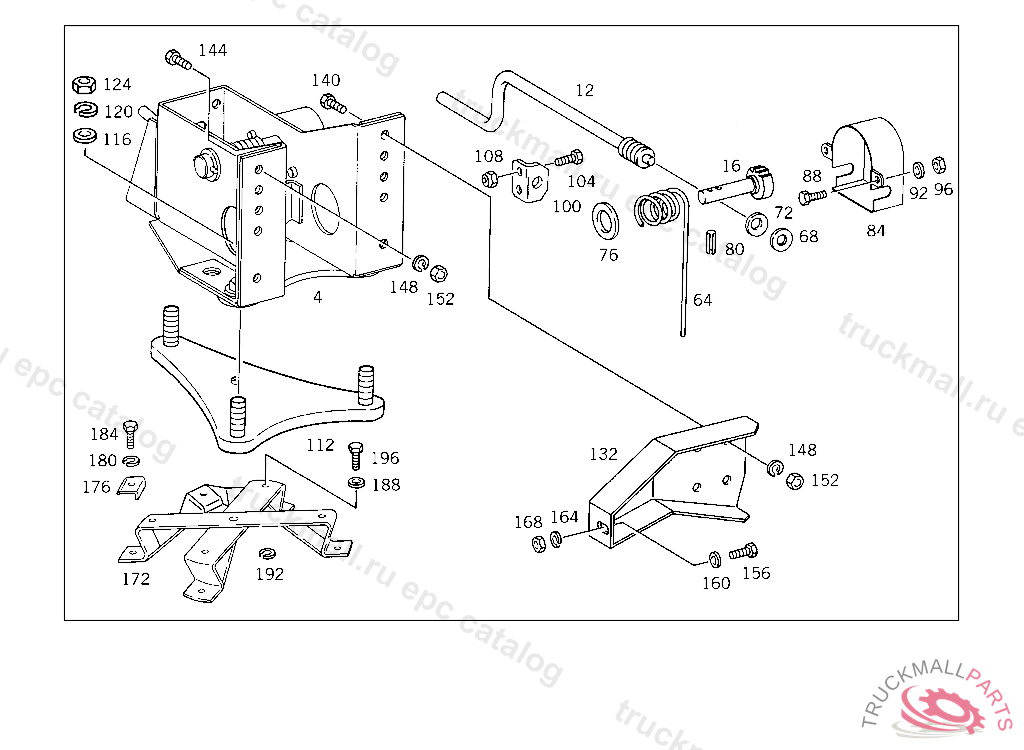

Поз.
Артикул
Описание
4
BRACKET SPARE WHEEL HOIST
4
BRACKET SPARE WHEEL HOIST
12
WORM ,5 127459, Replaced By: A6204030085, +001A3854030003, +001A3354030130, +001A6204030583, +001N001481006027
12
WORM
12
WORM
16
STOP GEAR
16
STOP GEAR
16
STOP GEAR ,5 127459, Replaced By: A6204030583, +001A3854030003, +001A3354030130, +001A6204030085, +001N001481006027
64
WIRE CABLE
64
WIRE CABLE
64
WIRE CABLE. ROPE , ORDER BY THE METER, Replaced By: N083334008000
68
WASHER WORM AND SHAFT TO BRACKET
72
DISC SPRING WORM AND SHAFT TO BRACKET
72
DISC SPRING WORM AND SHAFT TO BRACKET
76
WASHER WORM AND SHAFT TO BRACKET
80
CLAMPING SLEEVE , Replaced By: N308752008000
80
CLAMPING PIN BRACKET TO SUPPORT
84
COVERING PROTECTION PLATE TO BRACKET
88
SCREW , Replaced By: N304017006020
88
SCREW LICENSE PLATE TO BRACKET
92
WASHER COMPRESSED AIR LINE TO BRACKET
92
WASHER , Replaced By: N009021006208
96
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
96
NUT , Replaced By: N910113006001
100
BEARING BRACKET CRANK
104
SCREW , Replaced By: N304017006020
104
SCREW LICENSE PLATE TO BRACKET
108
NUT , Replaced By: N910113006001
108
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
112
BRACKET SPARE WHEEL MOUNTING
116
WASHER BRACKET TO SPARE WHEEL CARRIER,4 670772
120
SPRING LOCK WASHER FRONT SPRINGS TO FRONT AXLE,5 184731
124
NUT SPARE WHEEL HOIST TO FRAME
132
REINFORCEMENT SPARE WHEEL CARRIER TO FRAME
140
SCREW BRACKET TO FRAME,4 439997
144
SCREW
148
LOCK WASHER FITTING TO BRACKET
152
NUT STRAP TO SUPPORT
156
SCREW SUPPORT TO CROSS MEMBER M 10X28
160
WASHER RADIATOR TO RUBBER MOUNTING
160
WASHER , Replaced By: N000125010532
164
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
168
NUT BRACKET TO SUPPORT AND TO END PIECE
172
BRACKET , Replaced By: A3814002839
172
BRACKET
176
CLAMPING PIECE SPARE WHEEL CARRIER
176
CLAMPING PIECE , Replaced By: A3354030369
180
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
184
SCREW BRACKET TO SIDE MEMBER
188
WASHER SPARE WHEEL CARRIER
192
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
196
SCREW BRACKET TO CAB CONSOLE,K 035197
999
CRANK , Replaced By: A6504030045
999
BRACKET , Replaced By: A3854000039
999
BRACKET SPARE WHEEL
999
COTTER PIN BALL PIVOT TO STEERING ARM
999
CLAMPING SLEEVE CRANK TO BUSHING
999
RIVET GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS 10X26 MM
