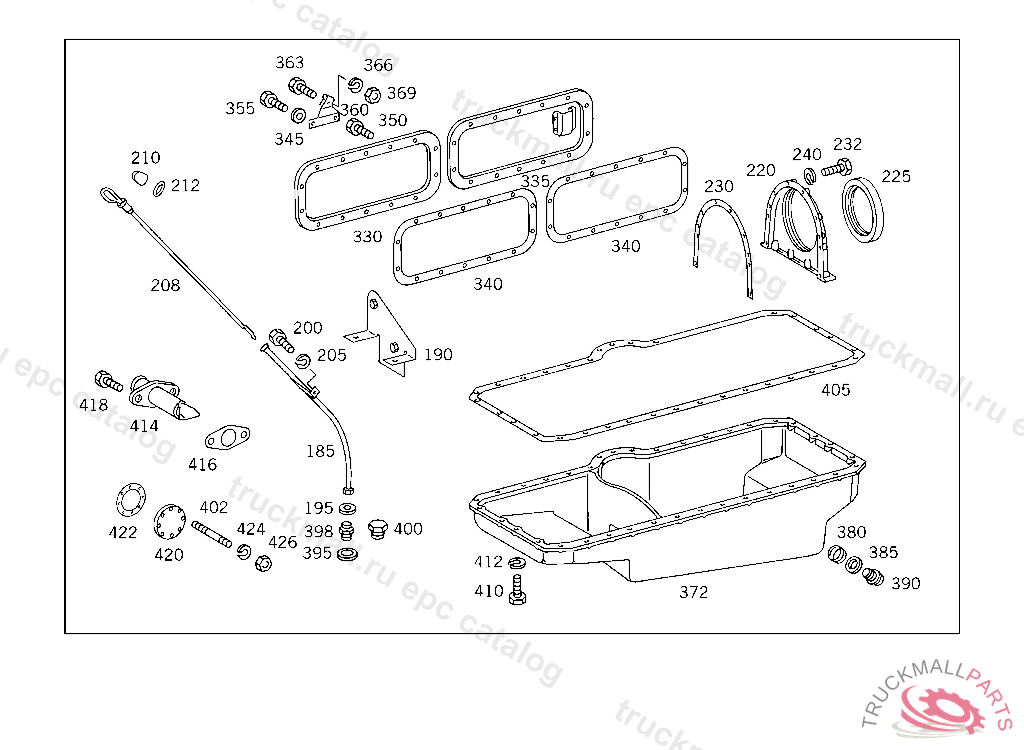

Поз.
Артикул
Описание
185
GUIDE TUBE
200
HEXAGON HEAD BOLT BRACKET TO TRANSMISSION
205
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
208
OIL DIPSTICK
210
CAP
212
SEAL RINGTO 000 431 59 14
220
COVER CRANKSHAFT,REAR
225
SEAL RING CRANKSHAFT SEALING,REAR
230
GASKET COVER TO CYLINDER CRANKCASE
232
SCREW CYLINDER CRANKCASE REAR COVER
240
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
330
COVER PUSH ROD CHAMBER,FRONT
335
COVER FRONT
340
GASKET PUSH ROD CHAMBER COVER TO CYLINDER CRANKCASE
340
GASKET , Replaced By: A3600150222
345
WASHER , Replaced By: N000125008443
345
WASHER EXHAUST MUFFLER TO STRAP
350
SCREW , Replaced By: N304017008016
350
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
355
SCREW , Replaced By: N304017008021
355
SCREW PIPE CLAMP
363
SCREW COVER PLATE TO BRACKET
366
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
369
NUT BALL PIVOT TO LEVER
372
OIL PAN
380
THREADED INSERT REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY
385
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
390
SCREW PLUG OIL COOLER,5 360280
390
SCREW PLUG
390
SCREW PLUG , Replaced By: N000908026008
390
SCREW PLUG , Replaced By: A0009973532
405
GASKET OIL PAN TO CYLINDER CRANKCASE
410
SCREW , Replaced By: N304017008027
410
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
412
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
GASKET OIL FILTER BOWL WITH FULL-FLOW FILTER TO OIL FILTER HEAD
999
GASKETTO 366 180 09 10
999
GASKET FILTER HOUSING TO FILTER HEAD
999
BRACKET
999
SEAL RING FUEL FILTER COVER
999
SEAL RING ,D 031246
999
SEAL RING INJECTION TIMING DEVICE
999
SEAL RING OIL FILLER PIPE
999
SEAL RING
999
SEAL RING
999
FLANGE GASKET COVER TO TIMING CASE
999
BRACKET
999
SEAL RING ANGLE DRIVE
999
SEAL HOLDER
999
COVER , FROM ENGINE 002294 ALSO INSTALLED ON, SEE FOOTNOTE 020, Replaced By: A3270150501
999
CYLINDER HEAD COVER , Replaced By: A3600160505, +001N000908042000, +001N007603042300
999
VALVE GUIDE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 103937, Replaced By: A3600530029, +001A3600530096
999
VALVE GUIDE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 103937, Replaced By: A3600530129, +001A3600530096
999
VALVE GUIDE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 103937, Replaced By: A3600530229, +001A3600530096
999
VALVE GUIDE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 103937, Replaced By: A3600530329, +001A3600530096
999
VALVE GUIDE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 103937, Replaced By: A3600530030, +001A3600530096
999
VALVE GUIDE , Replaced By: A3600530130, +001A3600530096
999
VALVE GUIDE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 103937, Replaced By: A3600530230, +001A3600530096
999
VALVE GUIDE , Replaced By: A3600530330, +001A3600530096
999
SEAL FUEL LEAK LINE
999
GUIDE TUBE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 036669, Replaced By: A3520102566
999
GUIDE TUBE , Replaced By: A3520184216
999
GASKETTO 352 010 01 68
999
GASKET COVER TO THERMOSTAT HOUSING,078816
999
GASKET COVER TO THERMOSTAT HOUSING, NOT USED
999
GASKET , Replaced By: A3522032680
999
GASKET DE-AERATION LINE TO HEATING LINE
999
SEAL RING DELIVERY LINES
999
GASKET
999
GASKET INJECTION PUMP DRIVE TO TIMING CASE
999
GASKET OUTLET TO ENGINE
999
COVER , Replaced By: A3600100116
999
CYLINDER HEAD ,014208
999
CYLINDER HEAD ,014208
999
CYLINDER HEAD ,014208
999
CYLINDER HEAD ,014208
999
CRANKCASE , RANGE OF DELIVERY INCLUDES: 1 X 352 010 25 66 1 X 327 018 00 53 1 X 000433 013001 1 X 007604 016100, Replaced By: A3600101108
999
CYLINDER HEAD , Replaced By: A3600101620
999
CYLINDER HEAD , Replaced By: A3600101520
999
CYLINDER HEAD , Replaced By: A3600101920
999
CYLINDER HEAD ,014209
999
CYLINDER HEAD , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 103937, Replaced By: A3600102220
999
CYLINDER HEAD , Replaced By: A3600103020
999
GASKET TIMING CASE COVER TO TIMING CASE
999
GASKET , Replaced By: A3600150222
999
GASKET TIMING CASE TO CYLINDER CRANKCASE
999
GASKET , Replaced By: A3600150480
999
CYLINDER HEAD GASKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3600160320
999
GASKET CYLINDER HEAD COVER TO CYLINDER HEAD
999
CYLINDER HEAD GASKET
999
GASKET CYLINDER SIDE COVER TO CYLINDER CRANKCASE
999
GASKET
999
GASKET INTAKE MANIFOLD
999
GASKET EXHAUST MANIFOLD TO CYLINDER HEAD
999
GASKET SUCTION PIPE TO OIL PUMP HOUSING
999
GASKET WATER PUMP TO CYLINDER CRANKCASE
999
GASKET UPPER COOLING WATER LINE TO CYLINDER HEAD
999
SEAL RING OIL COOLER CONNECTION
999
GASKET COVER TO TIMING CASE, Replaced By: A0259976947
999
GASKET OIL FILTER TO CYLINDER CRANKCASE
999
SEAL RINGBOSCH
999
SEAL RING SCREW PLUG
999
SEAL RING BRACKET TO CYLINDER HEAD
999
SEAL RING , Replaced By: N007603010110
999
SEAL RING
999
SEAL RING PNEUMATIC VALVE
999
SEAL RING LINE CONNECTION
999
SEAL RING FROM FUEL TANK TO FUEL TANK
999
SEAL RING FUEL LINE TO FEED PUMP
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SEAL RING VALVE TO VALVE,K 025179
999
SEAL RING TEMPERATURE GAUGE SENDER UNIT
999
SEAL RING , 001778
999
SEAL RING LINE CONNECTION
999
SEAL RING AIR RESERVOIR,CONNECTIONS: "24,34"
999
SEALING RING. SEAL RING OIL DRAIN
999
SEAL RING OIL LINE TO OIL COOLER
999
SEAL RING
999
SEAL RING REAR CORE HOLE
999
GASKET HEATING PIPE TO ENGINE
999
GASKET. SEAL , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3559970149
