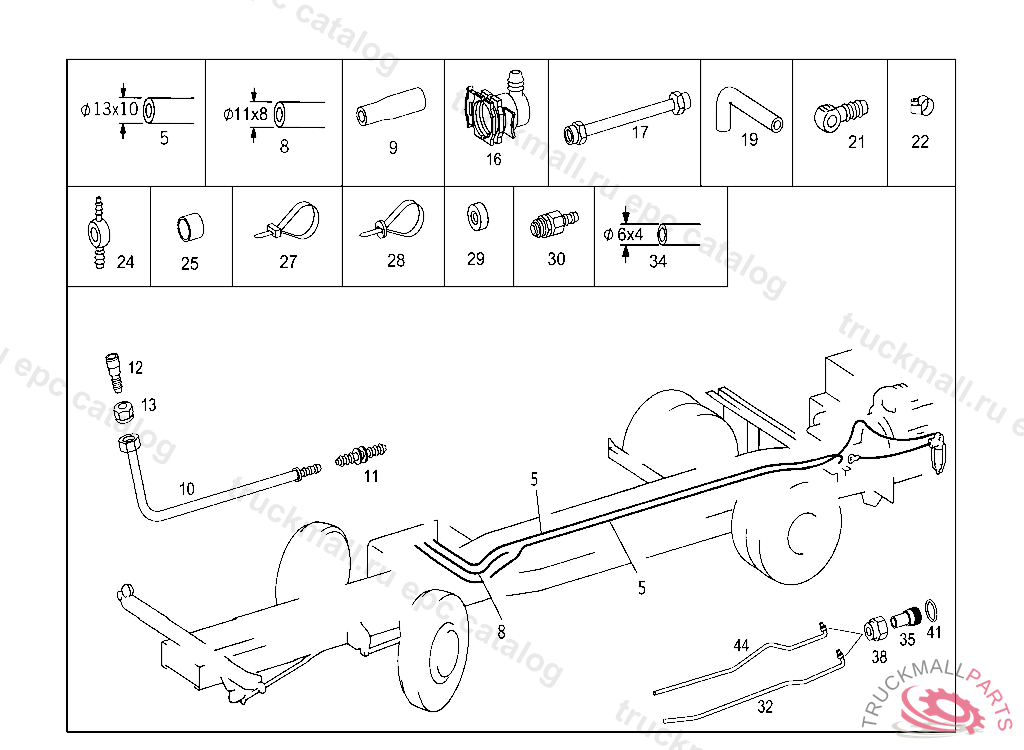

Поз.
Артикул
Описание
5
HOSE FEED & RETURN 13X1.5 MM, ORDER BY THE METER
9
HOSE LINE CONNECTION, Replaced By: A3754760026
11
CONNECTOR AT AIR COMPRESSOR, NOT USED
21
BANJO UNION HOSE WIDTH, / I.D., 10/16 MM
22
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
25
HOSE VIOLET
25
HOSE GREEN
25
HOSE WITHE
27
LOOM TIE LINE TO BRACKET 508 MM
27
LOOM TIE ELECTRIC CABLE MOUNTING
27
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
32
SUCTION LINE FUEL FEED
32
SUCTION LINE FUEL RETURN LINE
35
LOCK NUT FUEL FEED
38
UNION NUT RETURN LINE
41
SEAL RING FILTER INLET
