Поз.
Артикул
Описание

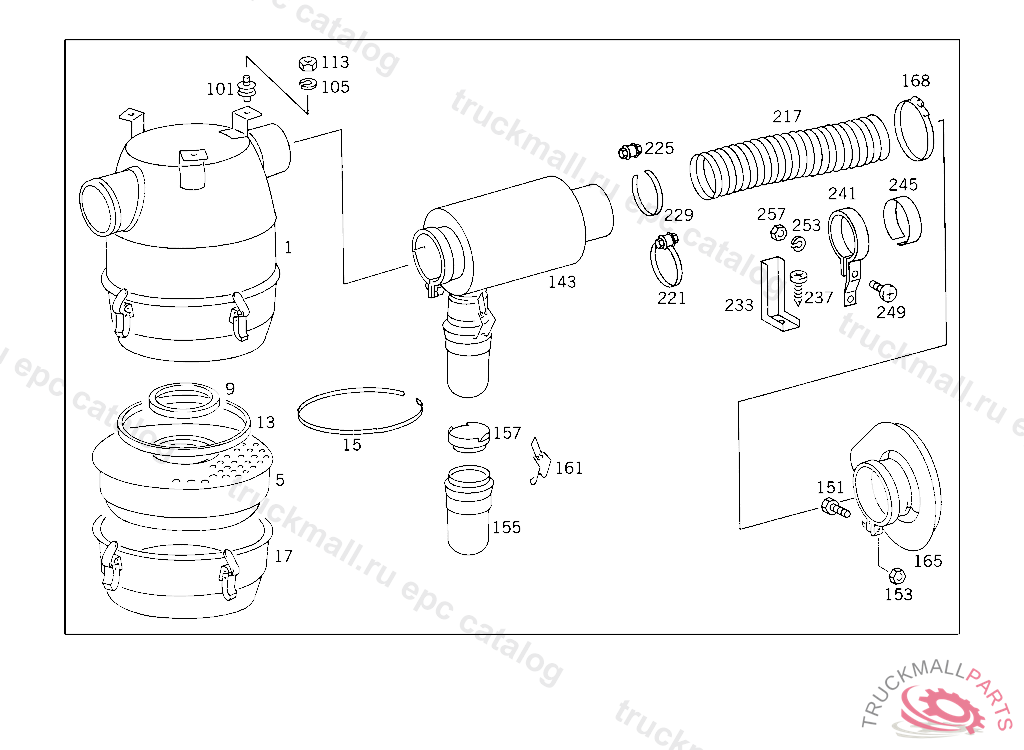

165
RAIN DEFLECTOR CAP
168
168
CLAMP AIR CLEANER TO SUPPORT
217
HOSE FROM INTAKE ELBOW TO COOLING AIR INTAKE CHAMBER
221
LOOM TIE INTAKE PIPE TO AIR CLEANER
225
LOOM TIE ALTERNATOR BREATHING
229
STRAP AIR HOSE TO ELBOW AND TO INTAKE CASE
233
BRACKET HOSE
237
SHEET METAL SCREW BRACKET TO WINDOW LEVEL GIRDER
241
BRACKET HOSE TO BRACKET
245
RUBBER SEAL HOSE TO BRACKET
249
SCREW SWITCH TO APPARATUS PLATE, 10/20 UP TO IDENT NO. 4 422632, 50/60 UP TO IDENT NO. 4 422723
253
LOCK WASHER WIRE CABLE TO LEVER
257
NUT BALL PIVOT TO LEVER
257
NUT SPRING-LOADED PUSH ROD
999
LOOM TIE
999
