Mercedes N009021008213 - ШАЙБА

1215 375.101

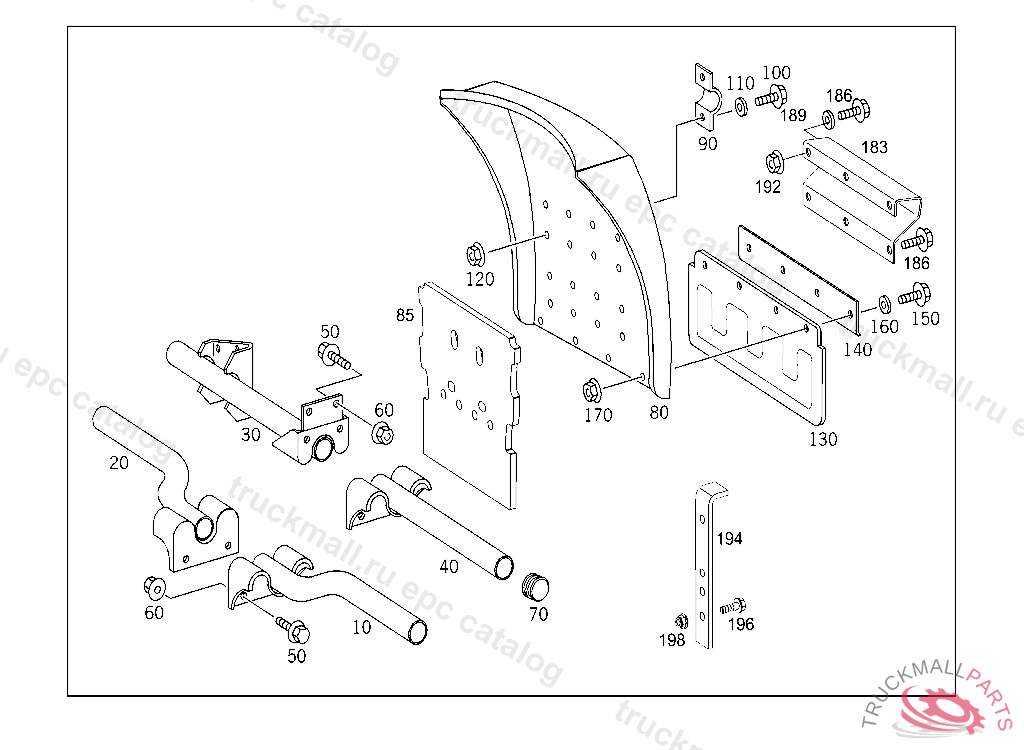

52 SHEET METAL,AIR INTAKE - 060 FENDER IL. 1

Поз.
Артикул
Описание
10
A3755200433
20
A3755200533
30
A3755200733
40
A3755200633
50
N910105012015
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M12X45
50
N910105012007
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
50
N910105012047
SCREW BRACKET MOUNTING
60
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
70
A3755250138
80
A3755210001
85
A9705221308
90
A3755210197
100
N910143008002
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
110
N009021008213
WASHER BRACKET TO LEFT SIDE MEMBER
120
N913023008003
NUT HORN TO BRACKET M8
130
A3755210014
140
A3755210149
150
N910105006008
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
160
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
170
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
186
N910143008009
HEXALOBULAR BOLT TRAVEL SENSOR TO FRAME SIDE MEMBER M8X70,V 207570
189
N000000003250
WASHER BRACKET TO CAB REAR PANEL
192
N913023008003
NUT HORN TO BRACKET M8
