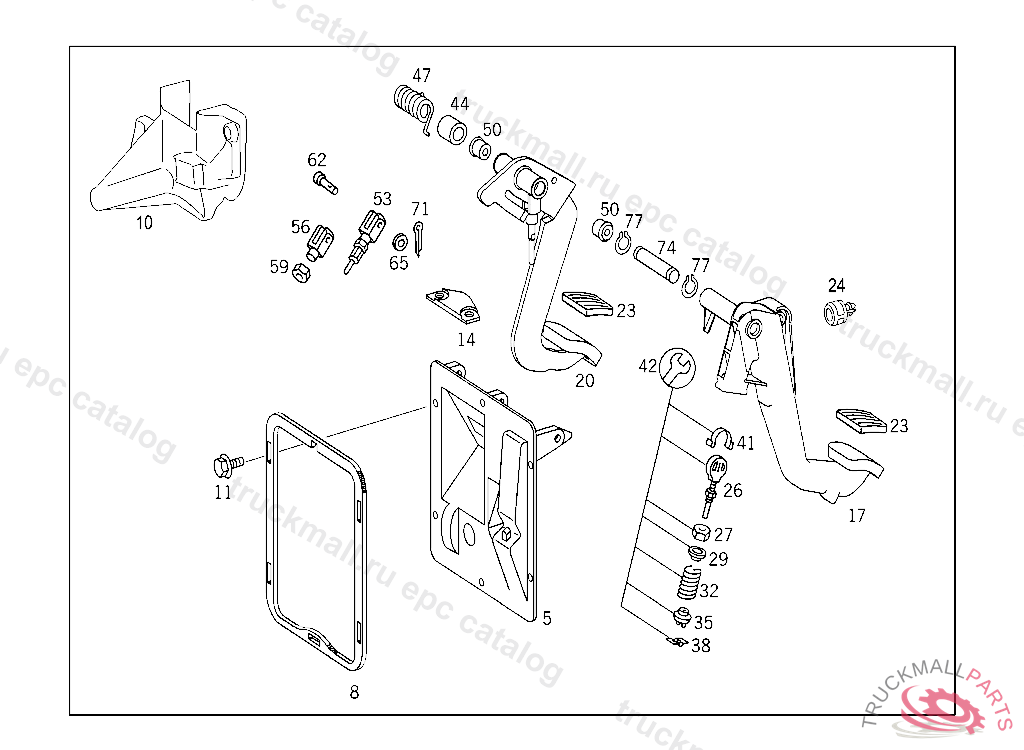

Поз.
Артикул
Описание
5
5
8
10
11
SCREW BEARING BRACKET TO FIRE WALL
11
HEXAGON HEAD BOLT PROTECTIVE PLATE TO CLAMP M8X20,V 214001
11
SCREW. HEXAGON HEAD BOLT OIL PAN TO CYLINDER CRANKCASE M8X35
14
PLATE SERVICE BRAKE VALVE TO PEDAL BEARING BRACKET, Replaced By: A9412920245
17
PEDAL CLUTCH
17
17
17
17
17
20
20
PEDAL BRAKE
20
20
23
PAD BRAKE PEDAL
23
PAD CLUTCH PEDAL
24
STOP CLUTCH PEDAL
26
ROD
27
NUT
29
SPRING RETAINER TOP
32
SPRING CLUTCH PEDAL RESET
35
SPRING RETAINER SPRING TO PUSH ROD
38
INSULATOR BOTTOM
41
INSULATOR ROD TO CLUTCH PEDAL
42
REPAIR KIT DEAD CENTER SPRING
44
SPACER TUBE BRAKE PEDAL TO BEARING BRACKET
47
SPRING BRAKE PEDAL RESET
47
50
BUSHING BRAKE PEDAL
50
53
ROD PISTON ROD AND PUSH ROD
56
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
56
YOKE OPERATING ROD
59
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
59
NUT
62
PIN ROD TO BRAKE PEDAL
65
WASHER PULL ROD TO SHIFT LEVER
71
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
74
PIN CLUTCH AND BRAKE PEDALS TO BEARING BRACKET
77
LOCK STOP TO BEARING BRACKET
77
LOCK RING , Replaced By: A0079942041
