Поз.
Артикул
Описание

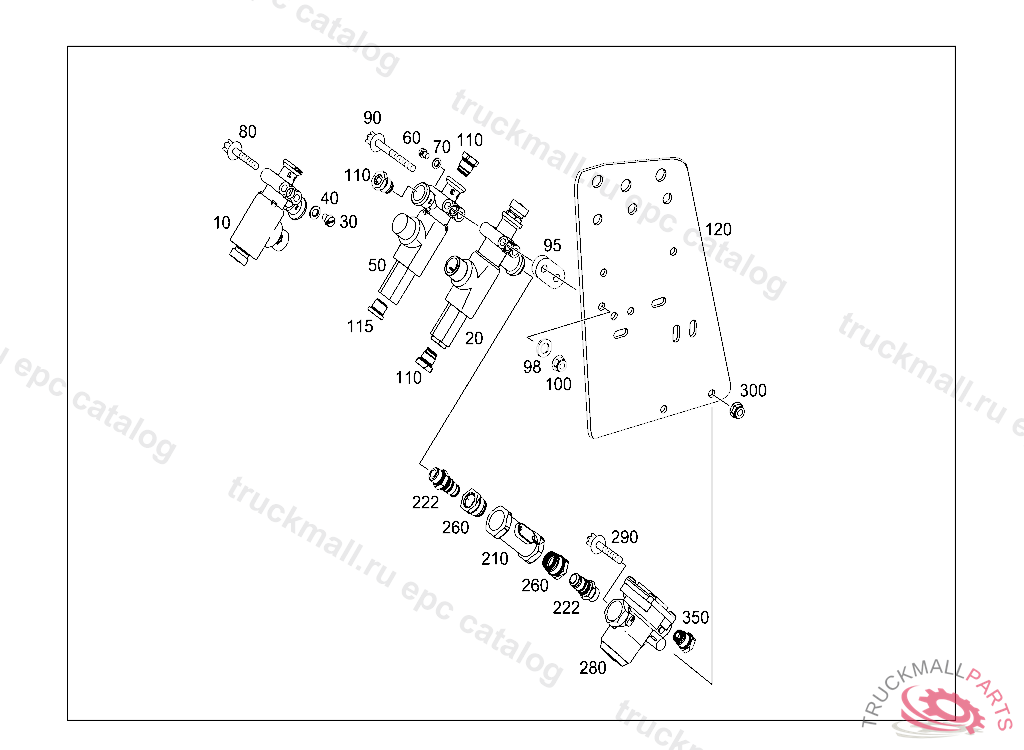

10
VALVE (3/2-WAY SOLENOID VALVE) ENGINE SHUT-OFF WABCO
10
3-2-WAY PNEUMATIC VALVE EXHAUST BRAKE WABCO,L 477192B 477192
10
VALVE (3/2-WAY SOLENOID VALVE) ENGINE SHUT-OFF EKS, REPAIR IMPOSSIBLE
20
SOLENOID VALVE 3/2-WAY VALVE ADBLUE
20
3-2-WAY PNEUMATIC VALVE 3/2-WAY VALVE ADBLUE
30
SCREW TO PLUG THE FREE CONNECTIONS
30
HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
40
SEAL RING TO LOCK SOLENOID VALVE 7X12MM
50
3-2-WAY PNEUMATIC VALVE 3/2-WAY VALVE ADBLUE
50
VALVE (3/2-WAY SOLENOID VALVE)
60
HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
60
SCREW TO PLUG THE FREE CONNECTIONS
70
SEAL RING TO LOCK SOLENOID VALVE 7X12MM
80
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 8X60
80
HEXALOBULAR BOLT TRAVEL SENSOR TO FRAME SIDE MEMBER M8X70,V 207570
90
HEXAGON HEAD BOLT. SCREW REAR EXHAUST PIPE TO MUFFLER M8 X 110 MM
90
HEXALOBULAR BOLT SOLENOID VALVE TO BRACKET M8X100
95
SHIM SOLENOID VALVE TO BRACKET
98
100
NUT HORN TO BRACKET M8
110
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16, VOSS 232
115
SCREW PLUG SOLENOID VALVE M16
120
BRACKET MOUNTING PARTS
210
NON-RETURN VALVE CHECK VALVE
222
SCREW-IN FITTING
260
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
280
VALVE PRESSURE LIMIT VALVE
290
HEXALOBULAR BOLT BRACKET TO BRACKET
300
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
350
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16, VOSS 232
