Mercedes A3662030380 - ПРОКЛАДКА

OM 366 LA 377.988

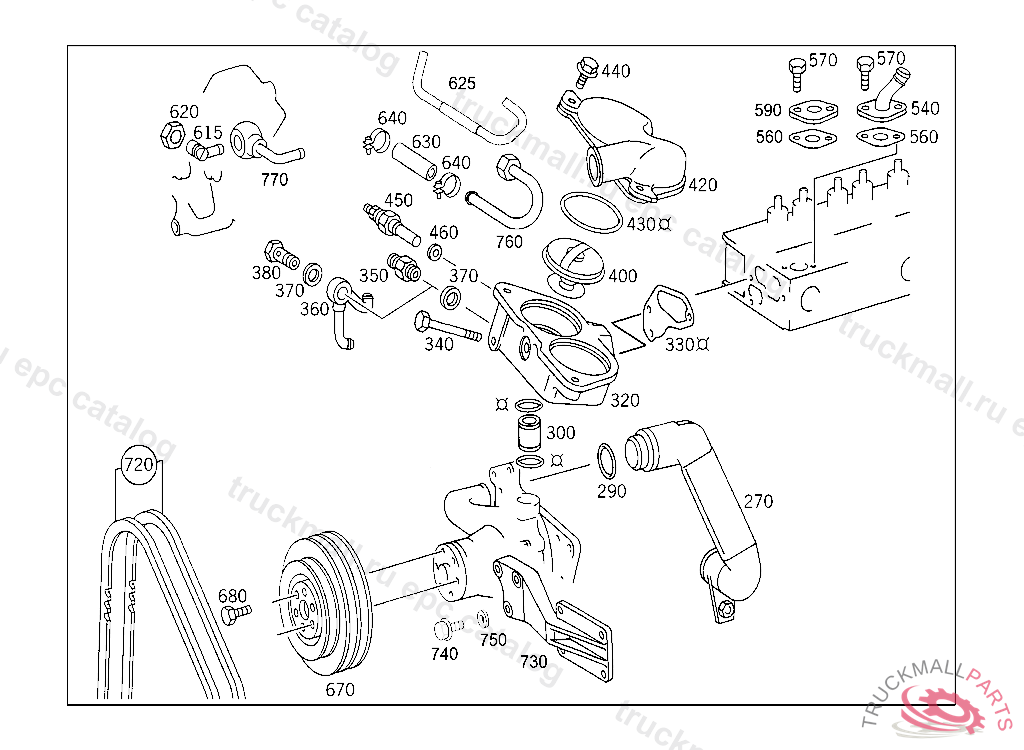

20 ENGINE COOLING SYSTEM - 015 WATER PUMP IL. 1

Поз.
Артикул
Описание
300
A3662032515
PIPE THERMOSTAT HOUSING TO WATER PUMP
320
A3662030173
HOUSING THERMOSTAT
330
A3662030280
GASKET THERMOSTAT HOUSING TO CYLINDER HEAD
340
N910105008011
SCREW STOP TO BATTERY CASE
340
N000931008131
SCREW P.T.O. TO TRANSMISSION
340
N304017008000
SCREW
350
A3522030808
CONNECTOR AT ENGINE,591819
370
N007603018400
SEAL RING DELIVERY LINE
560
A3662030380
GASKET PIPE SOCKET TO CYLINDER HEAD, UP TO IDENT NO.5 448662, FROM IDENT NO. 5 448663 SEE UNIT MICROFICHE
570
N910105008011
SCREW STOP TO BATTERY CASE
590
A3662030139
FLANGE HOT WATER HEATING CONNECTION
