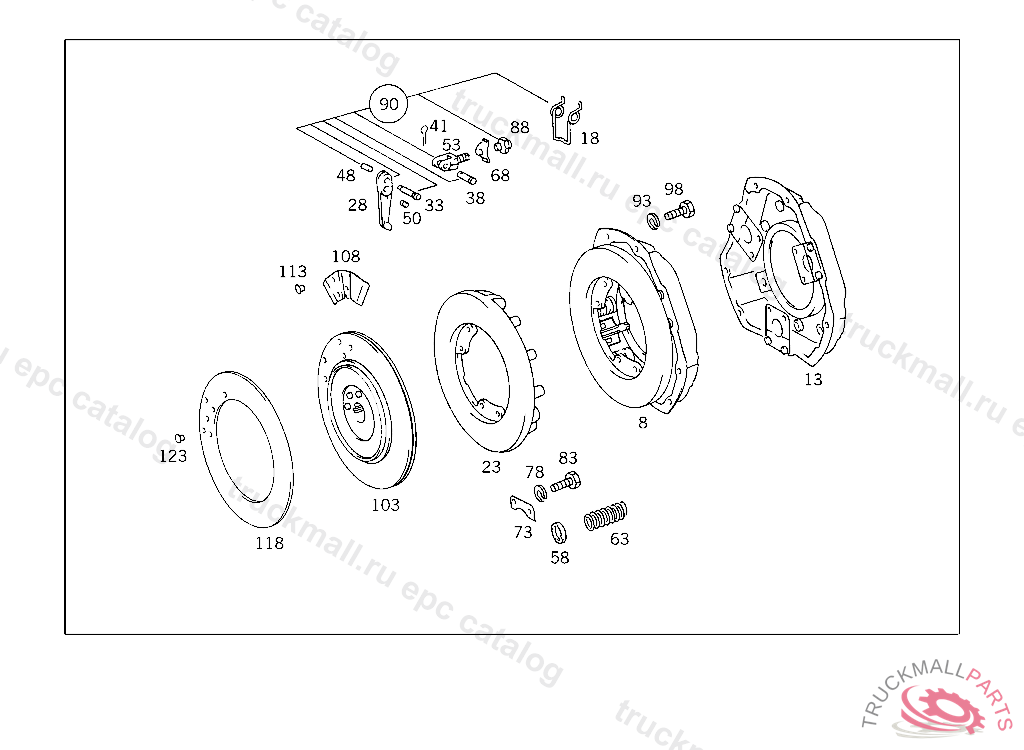

Поз.
Артикул
Описание
8
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
CLUTCH PRESSURE PLATE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 008484, Replaced By: A0032501004
8
CLUTCH PRESSURE PLATE , Replaced By: A0032501004
8
CLUTCH PRESSURE PLATE
13
HOUSING
13
HOUSING
18
SPRINGTO 344 586 70 25
23
CLUTCH PRESSURE PLATE , Replaced By: A0002526212, +001A0002526413, +001A0002523114, +001A0002523516, +001A0002523816, +001A0002520018, +001N006799007007
23
CLUTCH PRESSURE PLATE
23
PRESSURE PLATE
23
CLUTCH PRESSURE PLATE
28
RELEASE LEVER , UP TO IDENT NO. 760271 EXCEPT FOR 500001-599999 AXLE BORE IN PRESSURE PLATE TO BE REAMED FROM 8.0MM TO 8.1MM, Replaced By: A0002526413, +001A0002522914, +001A0002523816, +001A0002524216, +040A0002520018, +001A1249945241
28
RELEASE LEVER , Replaced By: A0002525713
28
RELEASE LEVER , UP TO IDENT NO. 760271 EXCEPT FOR 500001-599999
33
SPINDLE , Replaced By: A0002524216, +001A1249945241
33
SPINDLE , UP TO IDENT NO. 760271 EXCEPT FOR 500001-599999 AXLE BORE IN PRESSURE PLATE TO BE REAMED FROM 8.0MM TO 8.1MM, Replaced By: A0002523516, +001A0002526413, +001A0002522914, +001A0002523816, +040A0002520018, +001A1249945241
38
SPINDLE THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING,K 062600
38
SPINDLE , Replaced By: A0002523816, +001A1249945241
41
COTTER PIN ROD TO CENTRAL LOCKING MECHANISM
41
COTTER PIN ROD TO LEVER
48
ROLLERTO 344 586 70 25
50
RIVET
53
BRACKET
53
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0002522514, +001A0002523372
58
INSULATING WASHER
63
PRESSURE SPRING SPRING STEEL WIRE DIA., 4.5 MM, TO 003 250 10 04,001 250 75 04
63
PRESSURE SPRING
63
PRESSURE SPRING , ON ELIMINATION OF INSULATING WASHERS 000 252 00 24, Replaced By: A0002528120
68
LEAF SPRING
73
LOCKTO 002 250 67 04
78
LOCK WASHER
83
SCREW
88
NUT , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0002523372, +001A0002522514
90
REPAIR KIT
93
LOCK WASHER
98
SCREW CLUTCH TO FLYWHEEL
103
CLUTCH DISC
103
103
CLUTCH DISC
103
CLUTCH DISC , Replaced By: A0022507403
103
108
LEAF SPRING
113
RIVET , 341.250 UP TO CHASSIS A 002139
113
RIVET LEAF SPRING TO CLUTCH DISC 4X6 MM
118
CLUTCH LINING
118
CLUTCH LINING
123
RIVET LINING WITH INTERMEDIATE SPRING
999
LOCK , Replaced By: A0005863829
999
RODTO 308 295 70 07
999
REPAIR KIT CLUTCH SLAVE CYLINDER, FROM IDENT NO. 148037 ALSO INSTALLED ON 140555,142078
999
PIN
