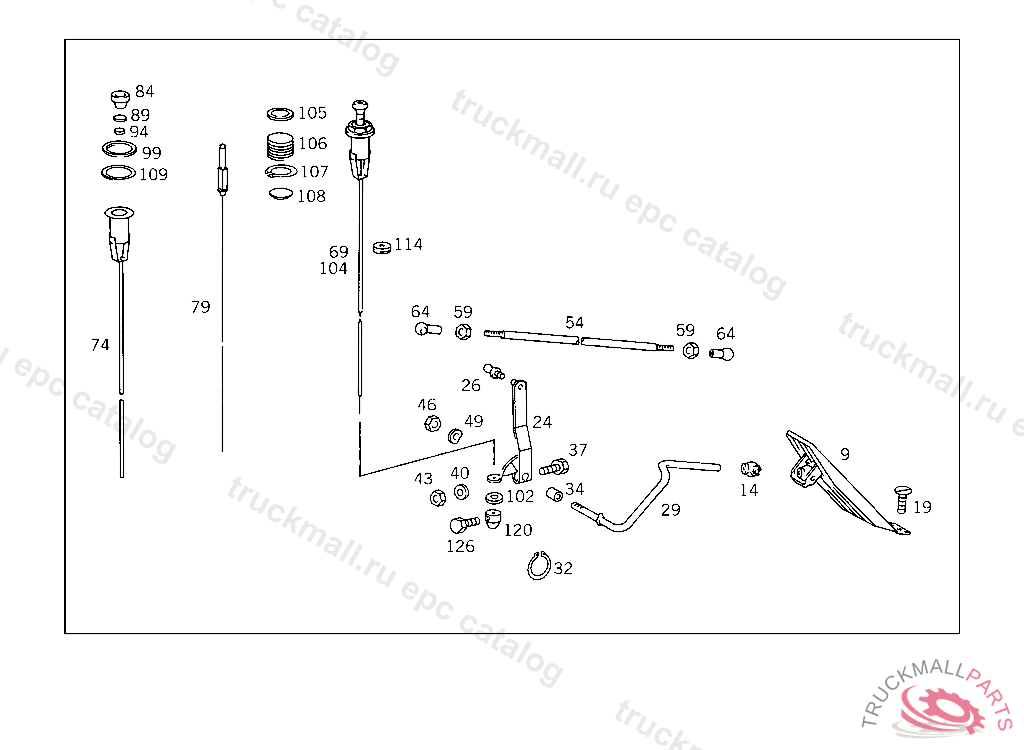

Поз.
Артикул
Описание
9
ACCELERATOR PEDAL ,150172
9
9
ACCELERATOR PEDAL , 309.0 FROM CHASSIS 004925-150171, 309.1 FROM CHASSIS 081030-150171, Replaced By: A3093001304
14
JOINT
14
JOINT
19
SCREW
24
LEVER CONTROL,014893
24
LEVER , 10/50 UP TO CHASSIS 177541,20/60 UP TO CHASSIS 182202, Replaced By: A3103000025, +001A3093002325
24
26
BALL PIVOT
26
BALL PIVOT , Replaced By: A3129910120
29
LEVER ,502879, Replaced By: A3103000425, +001A3103000025
29
LEVER ,177541150172, Replaced By: A3103000425, +001A3093002525
29
LEVER ,081030-150171, Replaced By: A3103000425, +001A3093001304, +001A3093002525
32
RETAINING RING FOLDING ARMREST
34
BUSHING ACCELERATOR CONTROL LINKAGE BEARING
37
SCREW
40
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
43
NUT
46
NUT , Replaced By: N308673010000
49
SPRING WASHER MOUNTING TO BODY
54
ROD ,013936281715, Replaced By: A3093011515, +001A0009914722, +001A0009914822, +002N000934006007
54
54
ROD FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE,018871
59
NUT
59
NUT BALL PIVOT TO LEVER
64
BALL SOCKET
64
BALL SOCKET , Replaced By: A0009911320
64
BALL SOCKET CONTROL
64
BALL PIVOT
69
69
KNOB , Replaced By: A3083007007
69
74
74
79
79
84
KNOB , FROM IDENT NO. 739256 ALSO INSTALLED ON:500001-599999 UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
84
KNOB , UP TO IDENT NO. 739255 EXCEPT FOR 500001-599999, Replaced By: A3523020201, +001A3523020308
84
KNOBTO 323 300 00 07
89
WASHER MANUAL CONTROL,4 155516
94
WASHER , UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
99
WASHER , ON SPECIAL REQUEST
102
WASHERTO 352 300 00 07
104
NUT , UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
105
WASHER
106
107
LOCK RING , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
108
COVERTO 323 300 00 07
109
114
GROMMET CLUTCH LINE TO BRACKET
114
GROMMET ,D 314239
120
RING WIRE CABLE TO LEVER
126
SCREW 3/2-WAY VALVE TO BRACKET
999
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
