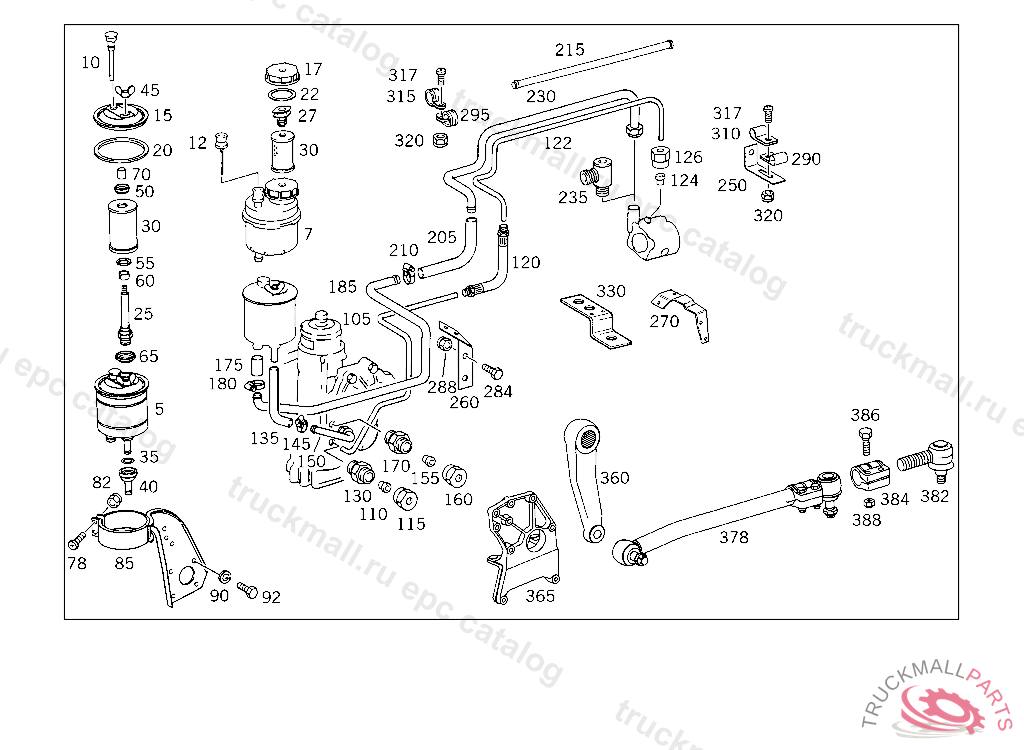

Поз.
Артикул
Описание
5
TANK , Replaced By: A0004664502
7
TANK OIL
10
PIPETO 000 466 38 02
12
OIL DIPSTICK
12
OIL DIPSTICK , Replaced By: A0004660867
15
COVERTO 000 466 38 02
17
FILLER CAP
20
SEAL RINGTO 000 466 38 02
22
SEAL RING
25
FILTER CARRIERTO 000 466 38 02
27
BRACKET
30
FILTER
30
FILTER
30
FILTER , Replaced By: A0004660604
35
SEALING CORD , Replaced By: A0059970848
35
SEAL RING , Replaced By: A0059970848
35
SEAL RINGTO 000 466 38 02
40
CONNECTORTO 000 466 38 02
45
NUTTO 000 466 38 02
50
CENTERING RINGTO 000 466 38 02
55
SPACER WASHERTO 000 466 38 02
55
WASHER , Replaced By: A9402680552
60
SPACER TUBETO 000 466 38 02
65
COVER PLATETO 000 466 38 02
70
RUBBER SLEEVETO 000 466 38 02
78
SCREW OIL TANK TO BRACKET
82
NUT OIL TANK TO BRACKET
82
NUT , Replaced By: N913002006009
85
BRACKET OIL TANK
85
BRACKET OIL TANK
85
BRACKET OIL TANK
85
BRACKET OIL TANK
90
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
92
HEXAGON HEAD BOLT BRACKET TO TRANSMISSION
105
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
105
LINE , NOT USED
105
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING,5 466861
105
LINE FROM HIGH PRESSURE HOSE TO STEERING
110
GLAND , Replaced By: A0019901967
110
SEAL CONE LINE CONNECTION
115
UNION NUT LINE CONNECTION, Replaced By: N000000006239
115
UNION NUT LINE CONNECTION
120
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
120
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
120
HOSE , Replaced By: A0009978252
120
HOSE , Replaced By: A0009978252
120
HOSE , Replaced By: A0009978152
120
HOSE , Replaced By: A0009978152
122
LINE , Replaced By: A0005516156
122
LINE FROM POWER STEERING PUMP TO HOSE
122
LINE FROM PUMP TO HIGH PRESSURE HOSE
122
LINE , NOT USED
122
TUBE FROM HIGH PRESSURE HOSE TO STEERING
124
SEAL CONE LINE CONNECTION
124
GLAND , Replaced By: A0019901967
126
UNION NUT LINE CONNECTION, Replaced By: N000000006239
126
UNION NUT LINE CONNECTION
130
FITTING DELIVERY LINE TO PUMP
135
HOSE , Replaced By: A6999974082
135
HOSE , Replaced By: A3439970582
135
HOSE , Replaced By: A3609971182
135
HOSE , Replaced By: A3859971682
135
HOSE , NOT USED
135
HOSE FROM STEERING TO OIL TANK
145
CLAMP , Replaced By: N000000000667
145
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
150
LINE FROM STEERING TO OIL TANK
155
GLAND LINE CONNECTION
160
UNION NUT LINE CONNECTION
170
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
170
FITTING RETURN LINE TO STEERING
175
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
175
HOSE , Replaced By: A3859971582
175
HOSE CONNECTION WITH TRANSMISSION CIRCUIT: "2", Replaced By: A3609970982
180
CLAMP , Replaced By: N000000000667
180
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
185
LINE FROM TANK TO HOSE
185
LINE FROM OIL TANK TO HOSE, NOT USED
185
LINE , Replaced By: A3834660765
185
LINE FROM RETURN LINE TO OIL TANK, 620.415 UP TO IDENT NO. 5 014668 620.416 UP TO IDENT NO. 5 000515 620.417 UP TO IDENT NO. 4 972023
205
HOSE , Replaced By: A3859971582
205
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
210
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
210
CLAMP , Replaced By: N000000000667
215
LINE HOSE,CONNECTOR,STEERING
230
LINE FROM HOSE TO POWER STEERING PUMP
230
LINE FROM HOSE TO POWER STEERING PUMP
230
LINE FROM HOSE TO OIL PUMP
230
LINE , NOT USED
235
ELBOW FITTING SUCTION LINE TO OIL PUMP
250
BRACKET , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 493018, Replaced By: A3812950440
250
BRACKET , Replaced By: A3812950440
260
BRACKET DELIVERY AND SUCTION LINES TO BRACKET AT FRAME
270
BRACKET DELIVERY AND SUCTION LINES TO FRAME
270
BRACKET LINE TO STEERING,4 178936
270
BRACKET , NOT USED
270
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 716042, Replaced By: A3874660940
270
BRACKET , Replaced By: A6164660040
284
SCREW BRACKET TO LEFT SIDE MEMBER
288
NUT SUPPORT TO SIDE MEMBER
290
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
295
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
310
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
310
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
315
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
317
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
320
NUT PUMP TO BRACKET
320
NUT , Replaced By: N913004006001
330
BRACKET CLUTCH AND BRAKE HOSES,4 276783
360
PITMAN ARM ,4 215305
365
STEERING SUPPORT AT FRAME,5 593344
365
STEERING SUPPORT AT FRAME,5 593344
378
DRAG LINKLEMFOERDER
378
DRAG LINKEHRENREICH,4 215305
378
DRAG LINKEHRENREICH
378
DRAG LINKLEMFOERDER
378
DRAG LINKEHRENREICH
378
DRAG LINK , Replaced By: A3834601605
378
DRAG LINK , Replaced By: A3834601705
378
DRAG LINK , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3834604505
378
DRAG LINK , Replaced By: A3834604905
378
DRAG LINK , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3834604705
378
DRAG LINKLEMFOERDER,4 215305
382
JOINT TO BE SCREWED INTO DRAG LINK LEMFOERDER
382
JOINT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0013300335
382
JOINT TO BE SCREWED INTO DRAG LINK EHRENREICH, Replaced By: A0024601048
382
BALL JOINT TO BE SCREWED INTO DRAG LINK EHRENREICH
384
CLAMP CLAMP, TWO-HOLE
384
CLAMP , Replaced By: A0003380645
386
SCREW CLAMP, TWO-HOLE
388
NUT SUPPORT TO SIDE MEMBER
999
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
999
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
999
NUT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 764686 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0019908151
999
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
999
SCREW , Replaced By: N000000001149
999
PROTECTIVE CAP
999
BRACKET , Replaced By: A6205244040
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
999
HOSE , Replaced By: A3859971582
999
DRAG LINKLEMFOERDER, FROM IDENT NO. 4 640760 EXCEPT FOR 4 643168,4 643987,4 644822,4 654860,4 650619
999
DRAG LINKLEMFOERDER, FROM IDENT NO. 4 640760 EXCEPT FOR 4 643168,4 643987,4 644822,4 654860,4 650619
999
BRACKET
999
BRACKET CLUTCH HOSE,4 276783
999
BRACKET , NOT USED
999
BRACKET HYDRAULIC HOSE TO STEERING GEAR
999
BRACKET HYDRAULIC HOSE TO STEERING GEAR
999
BRACKET
999
LINE HIGH PRESSURE HOSE,CONNECTOR,STEERING
999
BOOT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 456943, Replaced By: A3814621196
999
BOOT UNIVERSAL JOINT COVERING, NO.8316INO.7C52INO.7B90INO.9051I II I
999
HOSE FROM LINE TO OIL TANK
999
HOSE FROM STEERING TO OIL TANK
999
BRACKET , Replaced By: A3852953340
999
BRACKET CLUTCH HOSE TO POWER STEERING RESERVOIR,4 337905
999
BRACKET CLUTCH HOSE TO POWER STEERING RESERVOIR,4 3379054 653179
999
BRACKET HYDRAULIC HOSE TO STEERING GEAR,4 653180
999
BRACKET HYDRAULIC LINE
999
BRACKET , Replaced By: A3875015820
999
BRACKET , Replaced By: A3044760335
999
BRACKET , Replaced By: A3524290740
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
999
SCREW , Replaced By: A0029903712
999
COTTER PINROCKINGER,TYP 260 G150,260 G140
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N308676012017
999
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
999
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
999
NUT , Replaced By: N913004006001
999
CLAMP , Replaced By: N000000000667
