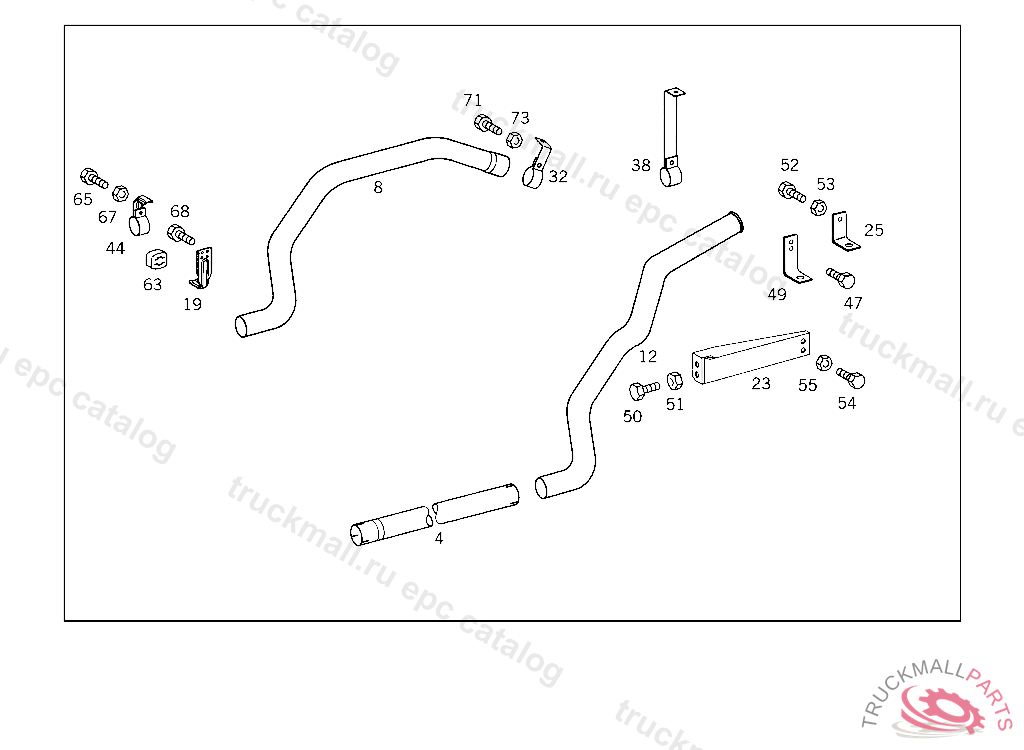

Поз.
Артикул
Описание
4
CONNECTOR REAR
4
CONNECTOR REAR
4
CONNECTOR REAR
4
CONNECTOR REAR
4
CONNECTOR REAR
4
CONNECTOR REAR
4
CONNECTOR REAR
4
CONNECTOR REAR
4
CONNECTOR , Replaced By: A3834920907
4
CONNECTOR , Replaced By: A3604921907
4
CONNECTOR , Replaced By: A3604922507
4
CONNECTOR , Replaced By: A3604921707
4
CONNECTOR , Replaced By: A3604921507
4
CONNECTOR , Replaced By: A3834920907
4
CONNECTOR , Replaced By: A3604921907
4
CONNECTOR , Replaced By: A3604921707
4
CONNECTOR REAR
4
CONNECTOR (TAIL PIPE)
8
REAR EXHAUST PIPE CENTRAL PART
8
REAR EXHAUST PIPE CENTRAL PART
12
REAR EXHAUST PIPE
12
REAR EXHAUST PIPE
12
REAR EXHAUST PIPE
12
REAR EXHAUST PIPE
12
REAR EXHAUST PIPE
12
REAR EXHAUST PIPE
12
REAR EXHAUST PIPE
12
REAR EXHAUST PIPE
19
SUPPORT EXHAUST
23
SUPPORT EXHAUST
23
SUPPORT EXHAUST PIPE
23
SUPPORT EXHAUST PIPE
25
SUPPORT EXHAUST PIPE
25
SUPPORT EXHAUST PIPE
25
SUPPORT EXHAUST PIPE
25
SUPPORT EXHAUST
32
BRACKET FRONT EXHAUST PIPE TO BRACKET,4 484038
32
BRACKET EXHAUST PIPE,4 3935984 726044 TO BE ADAPTED DURING ASSEMBLY
32
BRACKET , Replaced By: A3814921441
32
BRACKET , Replaced By: A3834923441
38
BRACKET , Replaced By: A3834927941
38
BRACKET , Replaced By: A3814922241
38
BRACKET EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
38
BRACKET EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
44
BRACKET EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
44
BRACKET EXHAUST
44
BRACKET FRONT EXHAUST PIPE TO BRACKET,4 484038
44
BRACKET EXHAUST
44
BRACKET EXHAUST
44
BRACKET
44
BRACKET EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
44
BRACKET EXHAUST
44
BRACKET EXHAUST
44
BRACKET , Replaced By: A3814921441
44
BRACKET , Replaced By: A3834927941
44
BRACKET , Replaced By: A3814922241
47
SCREW SUPPORT TO CROSS MEMBER M 10X28
49
BRACKET EXHAUST PIPE
50
SCREW SUPPORT TO CROSS MEMBER M 10X28
51
NUT , Replaced By: N910113010000
51
NUT STRAP TO BRACKET
52
SCREW , Replaced By: N304017012020
52
SCREW END PIECE TO EXHAUST PIPE M 12X30
53
NUT END PIECE TO EXHAUST PIPE
54
SCREW , Replaced By: N304017008034
55
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
55
NUT , Replaced By: N913004008001
63
DAMPING PAD PARTICLE FILTER
65
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
67
NUT STRAP TO BRACKET
67
NUT , Replaced By: N910113010000
68
SCREW SUPPORT TO CROSS MEMBER M 10X28
71
SCREW , Replaced By: N304017008034
73
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
73
NUT , Replaced By: N913004008001
73
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE , Replaced By: A3814926804
999
REAR EXHAUST PIPE REAR,4 613839
999
BRACKET , Replaced By: A3814923841, +001N071555075502
999
BRACKET , Replaced By: A3834927941
999
BRACKET , Replaced By: A3834927941
999
REAR EXHAUST PIPE ,4 191699
999
REAR EXHAUST PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 471444
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE , Replaced By: A3814927004
999
BRACKET EXHAUST PIPE
999
BRACKET , Replaced By: A3814922241
999
BRACKET
999
REAR EXHAUST PIPE , Replaced By: A3814926804
999
REAR EXHAUST PIPE REAR,4 613839
999
REAR EXHAUST PIPE
999
BRACKET EXHAUST PIPE
999
PLATE
999
SUPPORT EXHAUST PIPE
999
SUPPORT EXHAUST PIPE TO SIDE MEMBER
999
SUPPORT , Replaced By: A3604910016
999
EXHAUST PIPE REAR
999
EXHAUST PIPE REAR, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 471444
999
RUBBER BUFFER BRACKET TO SUPPORT
