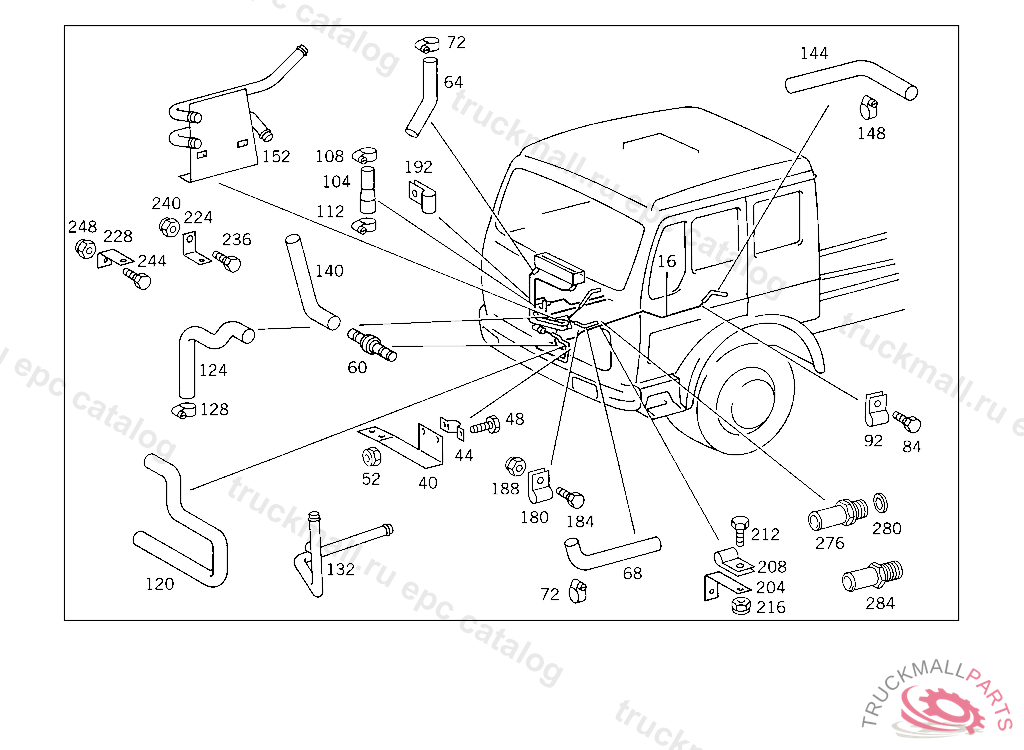

Поз.
Артикул
Описание
16
BREATHER PIPE FROM CHECK VALVE TO HEATING PIPE 2620 MM, 380.0/1,381.0/1,383.0/1,385.0/1 UP TO CHASSIS 4 661119,380.2,381.2/3,385.2 UP TO CHASSIS 4 661211
16
BREATHER PIPE FROM CHECK VALVE TO HEATING PIPE 2620 MM, 380.0/1,381.0/1,383.0/1,385.0/1 UP TO CHASSIS 4 661119,380.2,381.2/3,385.2 UP TO CHASSIS 4 661211
40
BRACKET AT CROSS MEMBER
44
CLAMP LINE MOUNTING
48
SCREW PUMP TO BRACKET
48
SCREW , Replaced By: N304017006016
52
NUT , Replaced By: N913004006001
52
NUT PUMP TO BRACKET
60
VALVE , Replaced By: A0008352772
60
VALVE (CHECK VALVE)
64
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
64
HOSE HEATING PIPE
68
HOSE HEATING PIPE
72
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
72
CLAMP HOSE TO FITTING AND TO OIL TANK
84
SCREW , Replaced By: N304017006020
84
SCREW , Replaced By: N304017006016
84
SCREW LICENSE PLATE TO BRACKET
84
SCREW PUMP TO BRACKET
92
CLAMP LINE MOUNTING
92
CLAMP , Replaced By: A3609950210
104
HOSE , Replaced By: A3095062535
104
HOSE PIPE LINE TO CONNECTION FITTING AND TO PRESSURE REGULATOR
108
CLAMP HOSE TO FITTING AND TO OIL TANK
108
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
112
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
112
CLAMP , Replaced By: N000000000667
120
HOSE FROM RECIRCULATING PUMP TO HEATING PIPE, 380.0/1,381.0/1,383.0/1,385.0/1 UP TO CHASSIS 4 661119,380.2,381.2/3,385.2 UP TO CHASSIS 4 661211
124
HOSE HEATING PIPE
128
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
128
CLAMP HOSE TO FITTING AND TO OIL TANK
128
LINE HEATING PIPE
132
LINE HEATING PIPE
132
LINE , Replaced By: A3875000689
132
LINE FROM RECIRCULATING PUMP TO HEATING PIPE
132
LINE FROM RECIRCULATING PUMP TO HEATING PIPE, 380.0/1,381.0/1,383.0/1,385.0/1 FROM CHASSIS 4 661120,380.2,381.2/3,385.2 FROM CHASSIS 4 661212
132
LINE FROM RECIRCULATING PUMP TO HEATING PIPE
140
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
144
HOSE HEATING PIPE
144
HOSE ENGINE BREATHING
148
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
148
CLAMP HOSE TO FITTING AND TO OIL TANK
152
LINE HEATING PIPE
152
LINE HEATING PIPE
152
LINE HEATING PIPE
152
LINE HEATING PIPE
180
CLAMP AT BRACKET
180
CLAMP , Replaced By: N916016011202
184
SCREW , Replaced By: N304017008021
184
SCREW PIPE CLAMP
188
NUT STRAP TO BRACKET
192
CLAMP AT BRACKET
192
CLAMP DELIVERY AND SUCTION LINES TO STEERING
192
CLAMP , Replaced By: N916016011202
204
BRACKET HEATING WATER LINE, 380.0/1,381.0/1,383.0/1,385.0/1 UP TO CHASSIS 4 661119,380.2,381.2/3,385.2 UP TO CHASSIS 4 661211
208
CLAMP LINE MOUNTING
208
CLAMP , Replaced By: A6739950001
208
CLAMP DELIVERY AND SUCTION LINES TO STEERING
212
SCREW PUMP TO BRACKET
212
SCREW , Replaced By: N304017006016
216
NUT , Replaced By: N913004006001
216
NUT PUMP TO BRACKET
224
BRACKET , Replaced By: A3873020140
224
BRACKET CABLE HARNESS MOUNTING
228
BRACKET HEATING WATER LINE TO SIDE MEMBER, 380.0/1,381.0/1,383.0/1,385.0/1 FROM CHASSIS 4 661120,380.2,381.2/3,385.2 FROM CHASSIS 4 661212
236
SCREW CONSOLE TO SIDE MEMBER
236
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
236
SCREW , Replaced By: N308676012012
236
SCREW , Replaced By: N304017008034
240
NUT SUPPORT TO SIDE MEMBER
240
NUT STRAP TO BRACKET
244
SCREW END PIECE TO EXHAUST PIPE M 10X25
248
NUT STRAP TO BRACKET
248
NUT , Replaced By: N910113010000
276
FITTING AT ENGINE
280
SEAL RING SOLENOID VALVE A 18X24
284
FITTING COOLING WATER LINE
999
BRACKET , Replaced By: A3124761535
999
BRACKET , Replaced By: A3184280240
999
HOSE , Replaced By: A3018320523
999
HOSE , Replaced By: A3465015382
999
ANGLE LINE MOUNTING
999
CLAMP LINE MOUNTING
999
CLAMP , Replaced By: A6739950001
999
HOSE , Replaced By: A3835060035
999
LINE HEATING, TO CAB,4 829878
999
LINE , NOT USED
999
BREATHER PIPE , NOT USED
999
BREATHER PIPE VENTILATION, FROM RADIATOR TO EXPANSION TANK 550 MM, NOT FOR USE WITH MERCEDES-BENZ CAB4 367398
999
BREATHER PIPE , NOT USED
999
HOSE , NOT USED
999
HOSE , NOT USED
999
BREATHER PIPE , NOT USED
999
LINE HEATING,MOUNTED TOGETHER WITH RADIATOR AT RUBBER BUFFER, 415 5 014668 416 5 000515 417 4 972023
999
BREATHER PIPE WATER DRAIN
999
LINE HEATING PIPE, NOT USED
999
CLAMP , Replaced By: A3609950210
