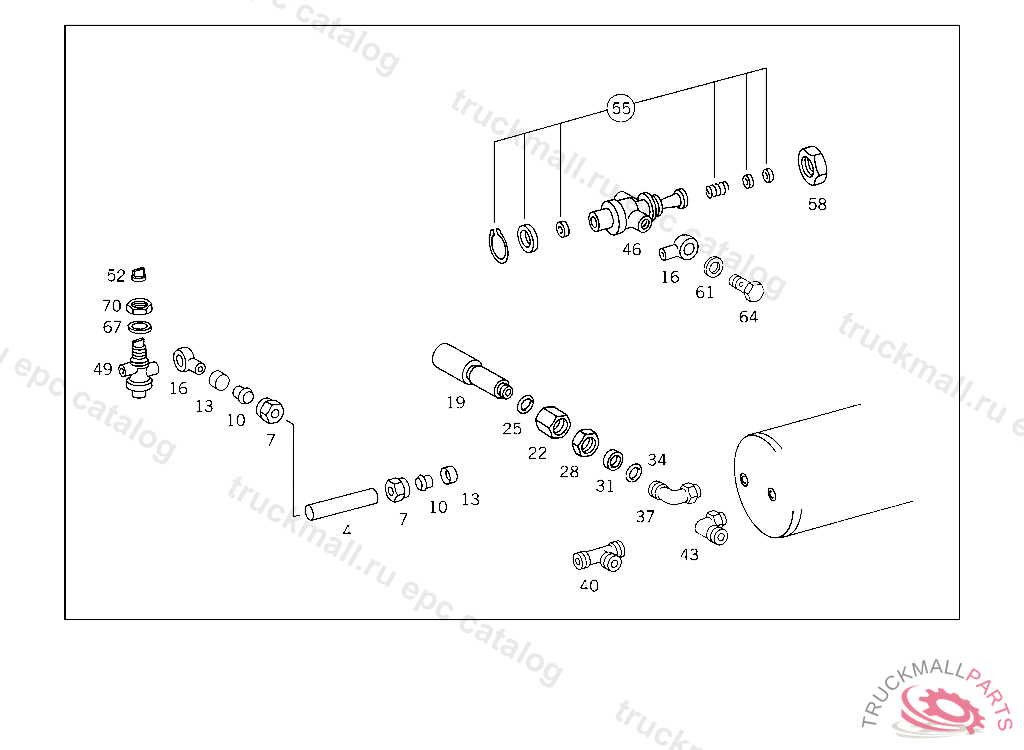

Поз.
Артикул
Описание
4
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
7
UNION NUT , Replaced By: N915017008100
7
UNION NUT LINE CONNECTION
10
GLAND LINE CONNECTION
13
SLEEVE , Replaced By: N915062006000
13
SLEEVE LINE CONNECTION
16
BANJO UNION HEATING CONNECTION,K 169122
16
BANJO UNION , Replaced By: N915052006005
16
BANJO UNION HEATING CONNECTION,K 169122
19
VALVE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 4 903131, Replaced By: A0034295044
19
VALVE ,K 025179, Replaced By: A0044297044
19
VALVE PRESSURE LIMIT,K 025180
22
ADAPTER FITTING RESERVOIR TO SUPPORT
25
SEAL RING SOLENOID VALVE A 18X24
28
NUT CHECK VALVE TO AIR RESERVOIR
31
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
31
THRUST RING CHECK VALVE TO AIR RESERVOIR
34
O-RING CHECK VALVE TO AIR RESERVOIR
37
FITTING , Replaced By: A0009909171
37
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
40
T-FITTING
43
ELBOW FITTING , Replaced By: A0004294638
43
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
46
VALVE TWO-WAY,4 685151
49
VALVE 3/2-WAY,4 685152
52
ACTUATING PARTTO 002 429 79 44
55
REPAIR KITTO 001 429 55 44
58
NUT , Replaced By: N080705026003
58
NUT 3/2-WAY VALVE TO CAB,4 685151
61
SEAL RING FUEL LINE TO FEED PUMP
64
HOLLOW SCREW , Replaced By: N915036010108
64
HOLLOW SCREW FUEL LINE TO FEED PUMP
67
WASHER AT TWO-WAY VALVE
70
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
999
REPAIR KITTO 002 429 79 44
999
COVERING
