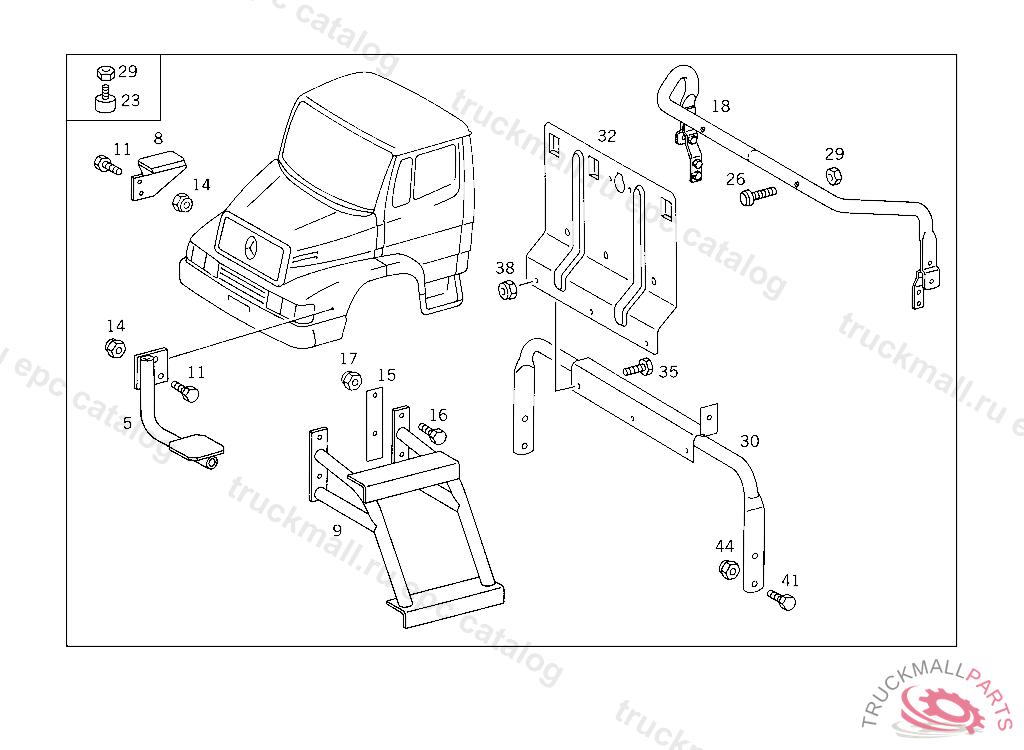

Поз.
Артикул
Описание
5
RUNNING BOARD LEFT,D 117088
5
RUNNING BOARD LEFT,D 117088
5
RUNNING BOARD RIGHT,D 117088
5
RUNNING BOARD RIGHT,D 117088
8
RUNNING BOARD ,D 117088
9
RUNNING BOARD STEP
11
SCREW , Replaced By: N304017010002
11
SCREW SUPPORT TO FRAME M12X1,5X35,D 127794
11
SCREW BRACKET TO CROSS MEMBER,024208
14
NUT ALTERNATOR TO SUPPORT
14
NUT , Replaced By: N910113010000
14
NUT , Replaced By: N910113010002
15
BASE
16
SCREW BATTERY CASE TO SIDE MEMBER
17
NUT , Replaced By: N910113014000
18
CLAMP
26
RUBBER BUFFER
26
RUBBER BUFFER
29
NUT BATTERY CABLE TO CABLE CONNECTOR
30
CLAMP BRAKE HOSE CONNECTION
32
BRACKET BRAKE HOSE CONNECTION
35
SCREW CONSOLE TO BRACKET M 12X1.5X25,20 L
38
NUT , Replaced By: N910113012003
41
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
41
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
44
NUT , Replaced By: N910113014000
44
NUT , Replaced By: N910113012003
