Поз.
Артикул
Описание

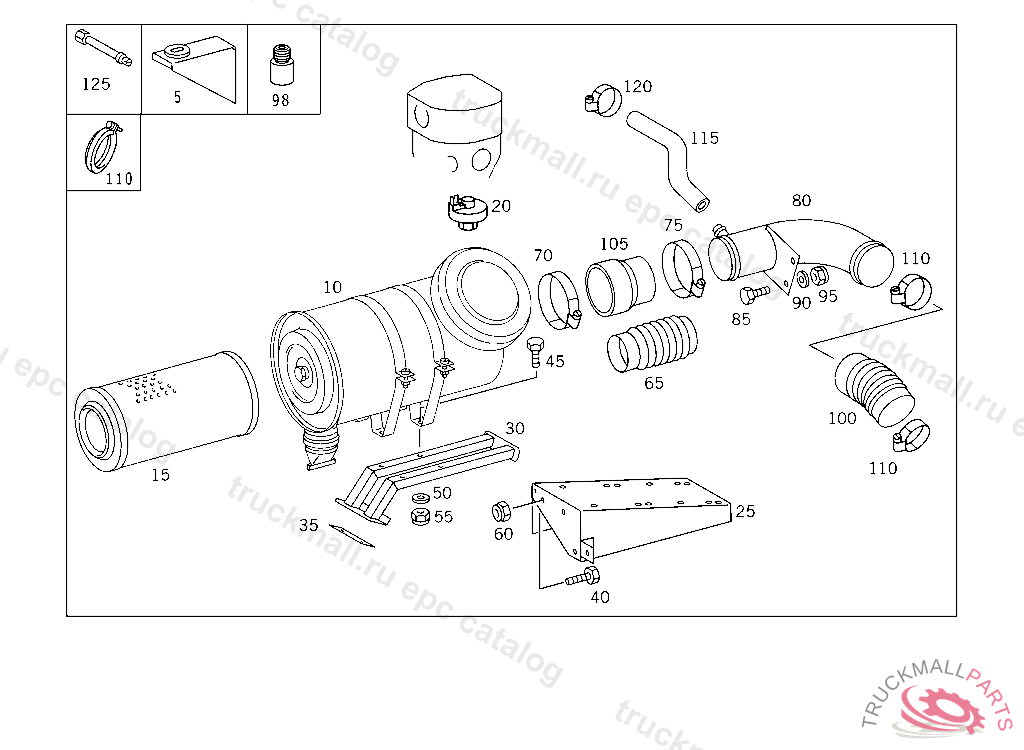

5
BRACKET SPARE WHEEL MOUNTING
10
AIR CLEANER ,X215713
10
AIR CLEANER
15
FILTER ELEMENTTO A 376 090 81 04
20
SWITCH INCLUDED IN RANGE OF DELIVERY OF: TO 376 090 98 04
25
BRACKET AIR CLEANER
30
SUPPORT AIR CLEANER
35
BRACKET , NOT USED
40
SCREW BRACKET TO SIDE MEMBER
40
SCREW BATTERY CASE
45
SCREW BRACKET TO AIR CLEANER CONSOLE
45
SCREW BRACKET TO AIR CLEANER CONSOLE
45
SCREW BRACKET TO AIR CLEANER CONSOLE
50
WASHER TRAILER PLUG SOCKET TO BRACKET
50
WASHER TRAILER PLUG SOCKET TO BRACKET
55
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
55
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
55
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
60
NUT BRACKET TO SIDE MEMBER
65
HOSE FROM AIR CLEANER TO ENGINE
70
CLAMP FROM AIR CLEANER TO AIR INTAKE PIPE,X215713
70
CLAMP FROM AIR CLEANER TO AIR INTAKE PIPE,X215713
75
CLAMP HOSE TO AIR CLEANER AND TO INTAKE PIPE
75
CLAMP HOSE TO AIR CLEANER AND TO INTAKE PIPE
80
AIR INTAKE PIPE FROM AIR CLEANER TO AIR INTAKE PIPE,X215713
85
SCREW STEERING SHAFT BEARING TO CAB M 8X20
90
WASHER TRAILER PLUG SOCKET TO BRACKET
95
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
98
NIPPLE AIR INTAKE PIPE,X215714
100
HOSE
100
HOSE FROM AIR CLEANER TO AIR INTAKE PIPE
105
HOSE FROM AIR CLEANER TO AIR INTAKE PIPE,X215713
110
CLAMP AIR INTAKE PIPE
115
HOSE 18-MM-DIA. LINE
120
CLAMP25-40X13 MM
120
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
125
VALVE EXTENSION,FRONT WHEEL
125
VALVE EXTENSION,FRONT WHEEL
125
VALVE
125
VALVE EXTENSION
125
VALVE EXTENSION
999
VALVE EXTENSION
999
VALVE
999
PUSH ROD FROM AIR CLEANER TO AIR INTAKE PIPE,X215714
999
AIR INTAKE PIPE
999
COVERING
999
STRUT
999
PANELLING
999
RIVET
999
PIPE BEND AT AIR COMPRESSOR
