Поз.
Артикул
Описание

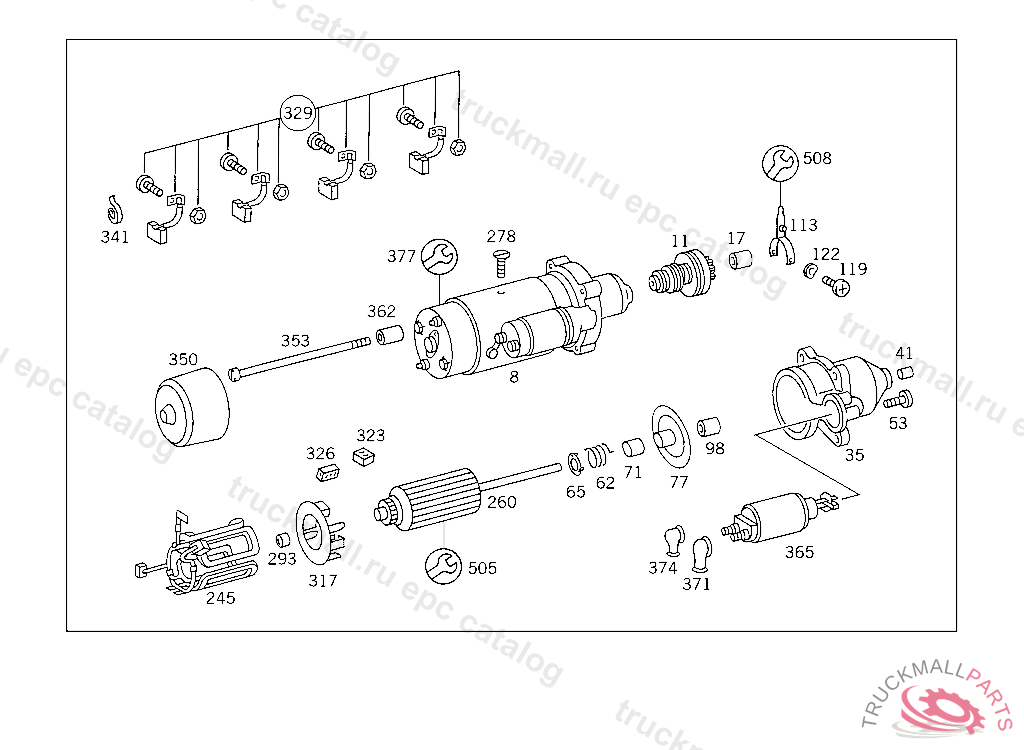

8
STARTING MOTOR24 V/4 KW
11
PINIONTO 343 151 71 01
17
BUSHING STARTER PINION TO 343 151 71 01
35
BEARING
53
SCREWTO 343 151 71 01
77
BEARINGTO 343 151 71 01
245
EXCITER COIL , USED WITH 344 151 73 01 STARTING MOTOR WITH BOSCH NO.9 000 083 063
260
ARMATURETO 344 151 74 01
278
SCREWTO 343 151 71 01
293
BUSHINGTO 343 151 71 01
317
BRACKETTO 344 151 74 01
323
INSULATIONTO 344 151 74 01
329
CARBON BRUSH SET , USED WITH 343 151 72 01 STARTING MOTOR WITH BOSCH NO.9 000 083 064
329
CARBON BRUSH SET , Replaced By: A0011515514
341
SPRING , USED WITH 343 151 70 01 STARTING MOTOR WITH BOSCH NO.9 000 083 053 USED WITH 343 151 71 01 STARTING MOTOR WITH BOSCH NO.9 000 083 054
353
STUDTO 343 151 71 01
365
SOLENOID SWITCH
371
BOOT. PROTECTIVE CAP CONNECTION TO BATTERY CUT-OFF
374
BOOT HEATER PLUGS
505
REPAIR KIT ARMATURE TO 343 151 71 01
508
REPAIR KIT RELEASE YOKE TO 343 151 71 01
