Поз.
Артикул
Описание
5

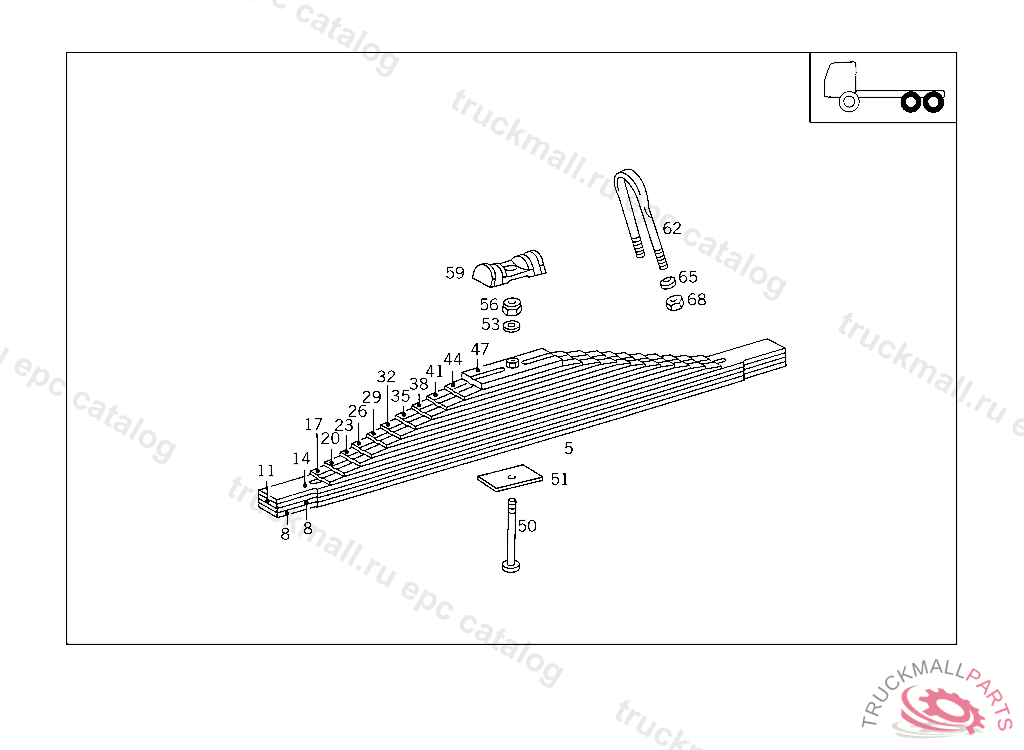

REAR SPRING (TRAPEZOIDAL SPRING),NUMBER OF LEAVES: "11"
8
SPRING LEAFNO.1,NO.2
11
SPRING LEAFNO.3
14
SPRING LEAFNO.4
17
SPRING LEAFNO.5
20
SPRING LEAFNO.6
23
SPRING LEAFNO.7
26
SPRING LEAFNO.8
29
SPRING LEAFNO.9
32
SPRING LEAFNO.10
35
SPRING LEAFNO.11
50
SPRING BOLT ,4 338077
53
WASHER BRACKET TO SPARE WHEEL CARRIER
56
NUT TORSION BAR TO BEARING BRACKET,5 904661
56
NUT TORSION BAR TO BEARING BRACKET,5 904661
59
SPRING CLAMPING PLATE REAR SPRING TO SPRING SADDLE
59
SPRING CLAMPING PLATE REAR SPRING TO SPRING SADDLE
62
U-BOLT REAR SPRING TO SPRING SADDLE
65
SPHERICAL WASHER REAR SPRING TO SPRING SADDLE
68
NUT REAR SPRING TO SPRING SADDLE
